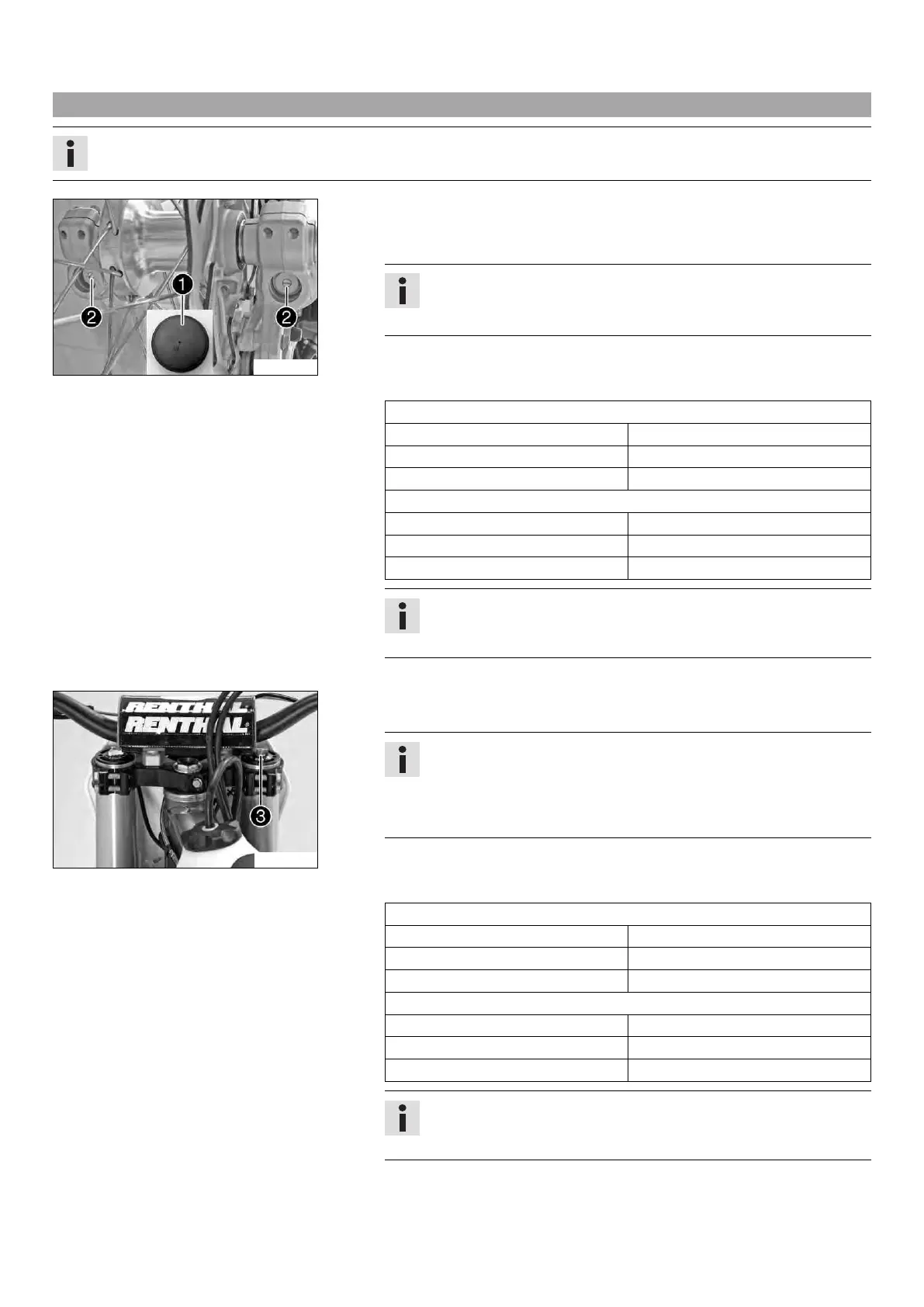

10 TUNING THE CHASSIS 34
10.13 Adjusting the rebound damping of the fork
Info
The hydraulic rebound damping determines the fork suspension behavior.
B00295-10
(SX‑F EU, SX‑F USA)
–
Remove protection caps
1
.
–
Turn adjusting screws
2
clockwise all the way.
Info
Adjusting screws
2
are located at the bottom end of the fork legs.
Make the same adjustment on both fork legs.
– Turn back counterclockwise by the number of clicks corresponding to the fork
type.
Guideline
Rebound damping (SX‑F EU)
Comfort 14 clicks
Standard 12 clicks
Sport 10 clicks
Rebound damping (SX‑F USA)
Comfort 14 clicks
Standard 12 clicks
Sport 10 clicks
Info
Turn clockwise to increase damping; turn counterclockwise to reduce
damping.
–
Mount protection caps
1
.
C00407-11
(SX‑F Factory Edition, XC‑F)
–
Turn the red adjusting screw
3
all the way clockwise.
Info
Adjusting screw
3
is located at the upper end of the right fork leg.
The rebound damping is located in the right fork leg (red adjusting
screw). The compression damping is located in the left fork leg (white
adjusting screw).
– Turn back counterclockwise by the number of clicks corresponding to the fork
type.
Guideline
Rebound damping (SX‑F Factory Edition)
Comfort 17 clicks
Standard 15 clicks
Sport 13 clicks
Rebound damping (XC‑F)
Comfort 15 clicks
Standard 13 clicks
Sport 11 clicks
Info
Turn clockwise to increase damping; turn counterclockwise to reduce
damping.
