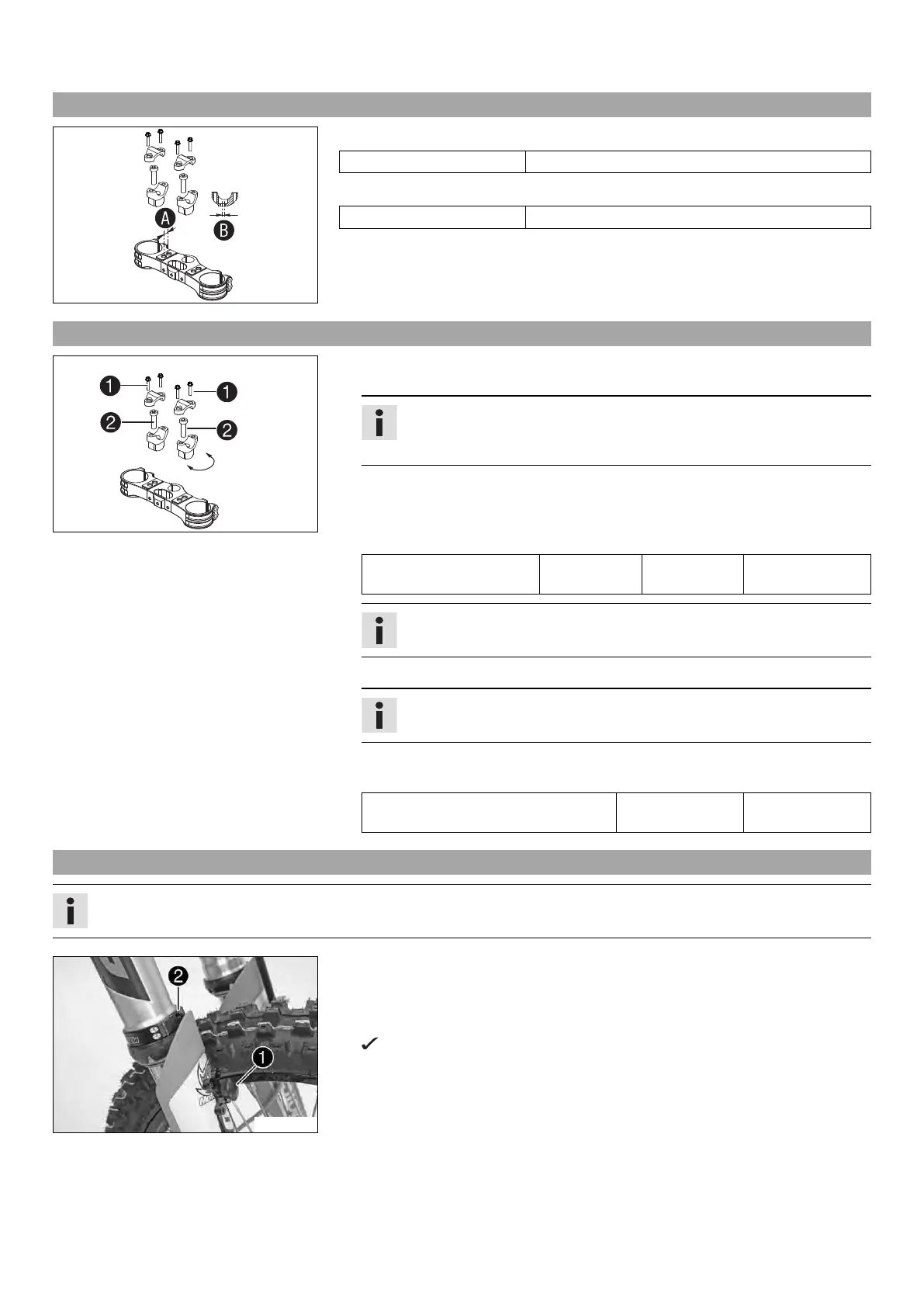

10 TUNING THE CHASSIS 35
10.14 Handlebar position
800116-10
On the upper triple clamp, there are two holes at a distance of
A
to each other.
Hole distance A 15 mm (0.59 in)
The holes on the handlebar support are placed at a distance of
B
from the center.
Hole distance B 3.5 mm (0.138 in)
The handlebar can be mounted in four different positions. In this way, the handlebar
can be mounted in the position that is most comfortable for the rider.
10.15 Adjusting the handlebar position x
B00375-10
–
Remove screws
1
. Take off the handlebar clamps. Take off the handlebar and lay
it to one side.
Info
Protect the components against damage by covering them.
Do not bend the cables and lines.
–
Remove screws
2
. Remove the handlebar supports.
– Place the handlebar supports in the required position. Mount and tighten
screws
2
.
Guideline
Screw, handlebar support M10 40 Nm
(29.5 lbf ft)
Loctite
®
243™
Info
Position the left and right handlebar supports evenly.
– Position the handlebar.
Info
Make sure the cables and wiring are positioned correctly.
–
Position the handlebar clamps. Mount and tighten screws
1
evenly.
Guideline
Screw, handlebar clamp M8 20 Nm
(14.8 lbf ft)
10.16 Activating the Factory Start (SX‑F Factory Edition)
Info
In cold weather, the lock button may freeze up, preventing it from being released during compression.
101962-10
–
Check lock button
1
to ensure it can move easily.
– Bend over the handlebars while sitting on the motorcycle. Grip the rim and com-
press the fork. Press lock button
1
and decompress slowly until the lock button
engages in lock ring
2
.
When the fork compresses for the first time, the lock button is released auto-
matically.
