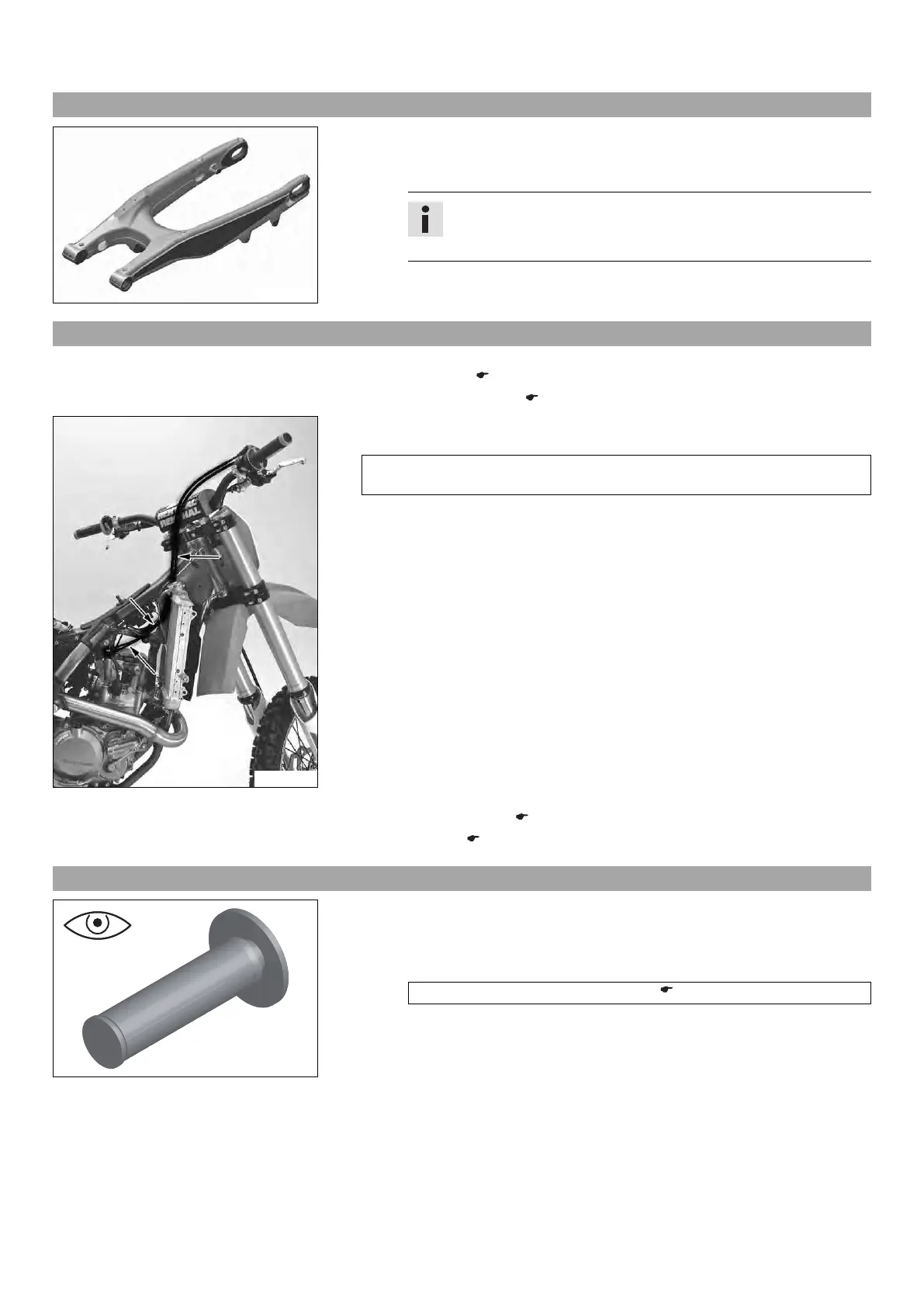

11 SERVICE WORK ON THE CHASSIS 58
11.44 Checking the swingarm x
401520-01
– Check the swingarm for damage, cracking, and deformation.
» If the swingarm shows signs of damage, cracking, or deformation:
–
Change the swingarm. x
Info
A damaged swingarm must always be changed. Repair of the
swingarm is not authorized by KTM.
11.45 Checking the throttle cable routing
Preparatory work
– Remove the seat. ( p. 47)
–
Remove the fuel tank. x ( p. 51)
C00495-10
Main work
– Check the throttle cable routing.
Both throttle cables must be routed to the throttle valve body side by side behind
the handlebars and above the fuel tank bracket.
» If the throttle cable is not routed as specified:
– Correct the throttle cable routing.
Finishing work
–
Install the fuel tank. x ( p. 53)
– Mount the seat. ( p. 47)
11.46 Checking the rubber grip
401197-01
– Check the rubber grips on the handlebar for damage and wear and to ensure they
are firmly seated.
» If a rubber grip is damaged, worn or loose:
– Change and secure the rubber grip.
Rubber grip adhesive (00062030051) ( p. 102)
