13 WHEELS, TIRES 71
S00173-10
–
Remove spacers
4
.

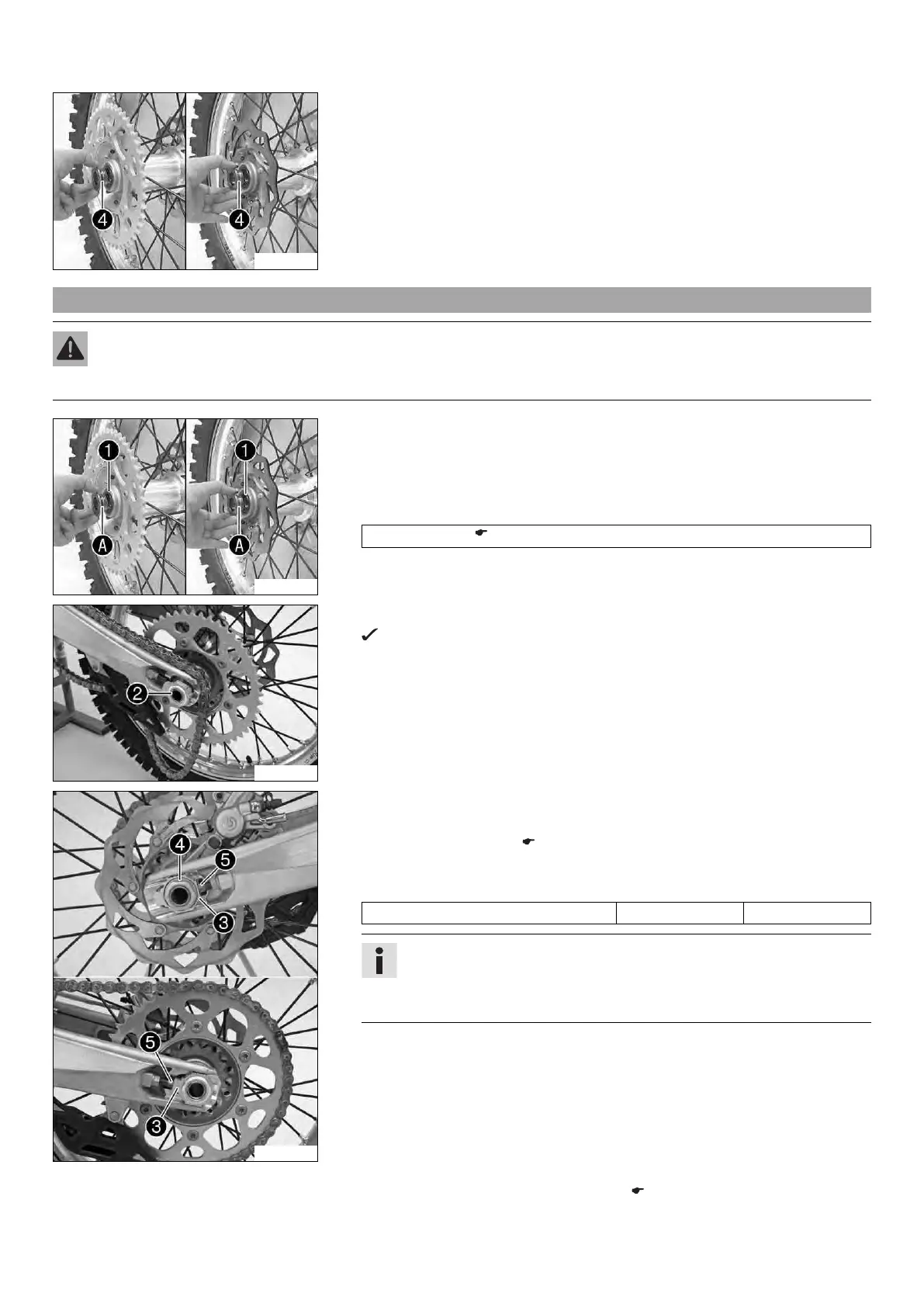

13.4 Installing the rear wheel x
Warning
Danger of accidents Reduced braking efficiency due to oil or grease on the brake discs.
– Always keep the brake discs free of oil and grease, and clean them with brake cleaner when necessary.
S00173-11
Main work
– Check the wheel bearing for damage and wear.
» If the wheel bearing is damaged or worn:
–
Change the wheel bearing. x
–
Clean and grease the shaft seal rings
1
and contact surface
A
of the spacers.
Long-life grease ( p. 102)
– Insert the spacers.
C00448-10
–
Position the rear wheel and insert wheel spindle
2
.
The brake linings are correctly positioned.
– Put the chain on.
C00449-01
–
Position chain adjuster
3
. Mount nut
4
, but do not tighten it yet.
–
Make sure that chain adjusters
3
are fitted correctly on adjusting screws
5
.
– Check the chain tension. ( p. 54)
–
Tighten nut
4
.
Guideline
Nut, rear wheel spindle M25x1.5 80 Nm (59 lbf ft)
Info
The wide adjustment range of the chain adjusters (32 mm (1.18 in))
enables different secondary ratios with the same chain length.
Chain adjusters
3
can be turned by 180°.
– Operate the foot brake lever repeatedly until the brake linings are in contact with
the brake disc and there is a pressure point.
Finishing work
– Remove the motorcycle from the lift stand. ( p. 36)
