KTM Super Adventure 2016 User Manual

3 WORK 8
V00132-10

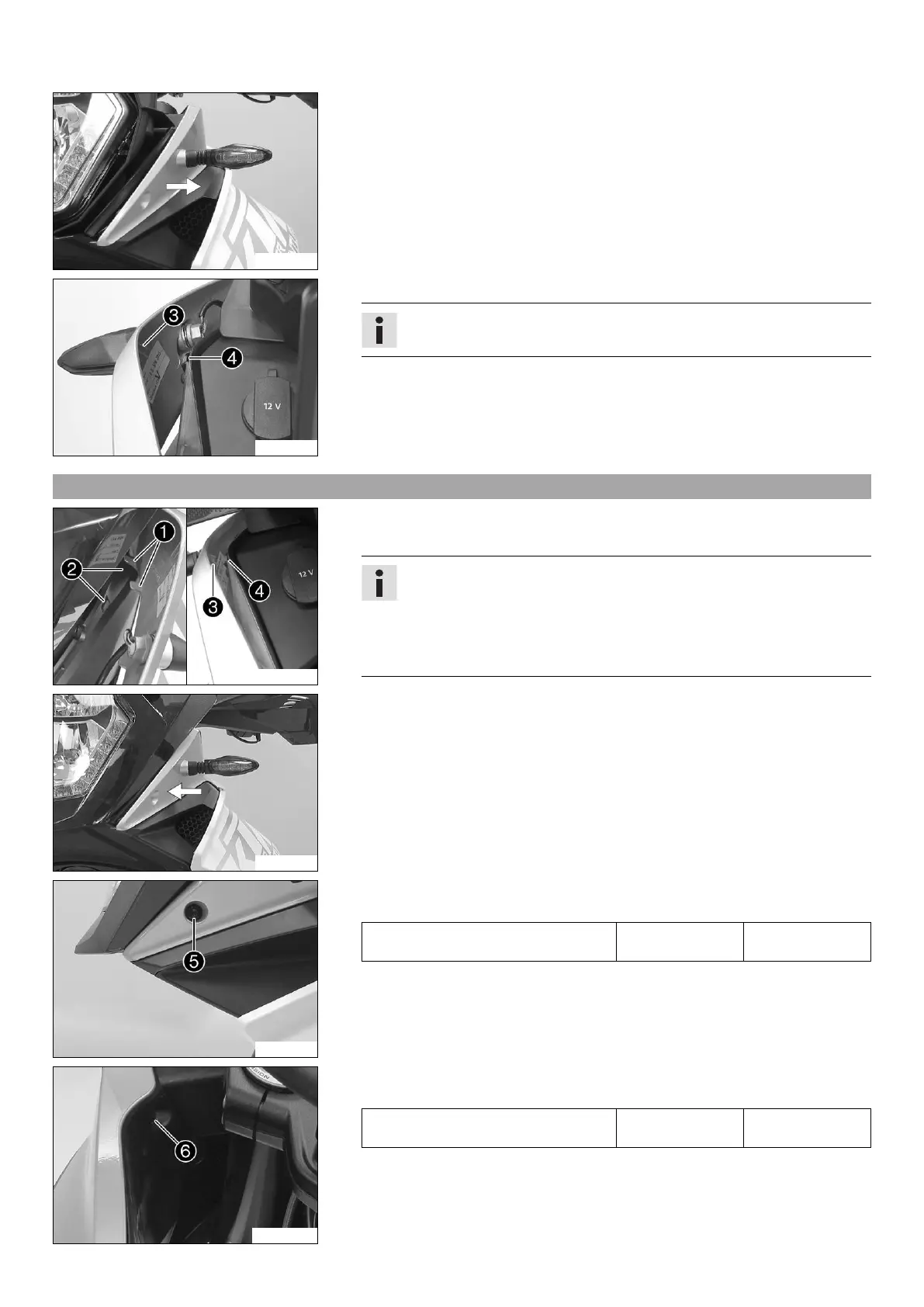

– Pull the front part of the mask spoiler laterally out of the supports.
V00133-10
–
Carefully remove catch

upward from bracket

.
Info
Pay attention to the turn signal cable.
– Repeat these steps on the opposite side.
3.6 Positioning the mask spoiler
V00125-10
–
Push two rear catches

on the mask spoiler into supports

provided.
–
Push the mask spoiler up and position catch

in bracket

.
Info
Ensure that the turn signal cable is placed correctly.
Carefully push the mask spoiler up to avoid breaking the component or
bending catch

.
Make sure that the rear catches on the mask spoiler remain in the supports
provided.
V00111-11
– Push the front part of the mask spoiler laterally into the supports.
V00091-11
–
Mount and tighten screw

.
Guideline
Screw, mask spoiler M5x17 3.5 Nm
(2.58 lbf ft)
M00858-11
–
Mount and tighten screw

.
Guideline
Screw, mask spoiler M5x17 3.5 Nm
(2.58 lbf ft)
– Repeat these steps on the opposite side.
