KTM Super Adventure 2016 User Manual

3 WORK 9

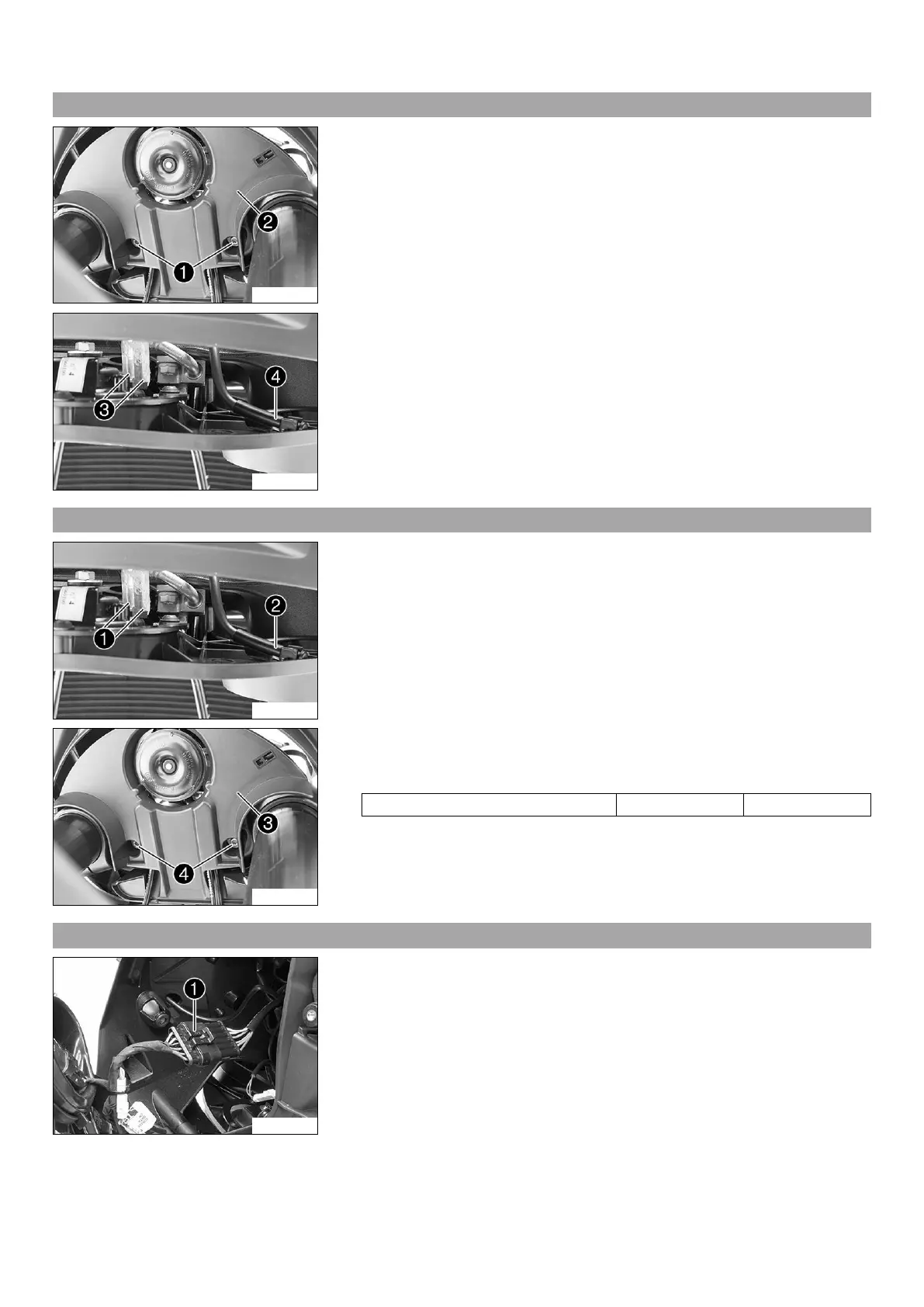

3.7 Removing the bottom triple clamp cover
M00557-10
–
Remove screws

.
–
Lower triple clamp cover

slightly.
M00558-10
–
Disconnect plugs

of the horn.
–
Detach temperature sensor

.
– Remove the triple clamp cover.
3.8 Installing the bottom triple clamp cover
M00558-11
–
Plug in connectors

of the horn.
–
Attach temperature sensor

.
M00557-11
–
Position the triple clamp cover

.
–
Mount and tighten screws

.
Guideline
Remaining chassis screws M6 10 Nm (7.4 lbf ft)
3.9 Installing the headlight mask with the headlight
M00748-11
Main work
–
Connect plug-in connector

of the headlight.
– Check that the lighting is functioning properly.
– Position the headlight mask.

KTM Super Adventure 2016 Specifications

General

Displacement	1195 cc
Power	160 hp
Transmission	6-speed
Weight	238 kg
Fuel System	Electronic fuel injection
ABS	Bosch 9ME Combined ABS
Wheelbase	1560 mm
Torque	125 Nm
Fuel Capacity	30 l
Seat Height	860 mm
Front Suspension	WP USD Ø 48 mm
Front Brakes	Twin 320 mm discs
Rear Brakes	Single 267 mm disc
Front Brake	2 x Brembo four-piston radial calipers, 320 mm discs
Rear Brake	Brembo two-piston caliper
Traction Control	Motorcycle Traction Control (MTC)
Engine Type	Liquid-cooled, 4-stroke, V-twin
