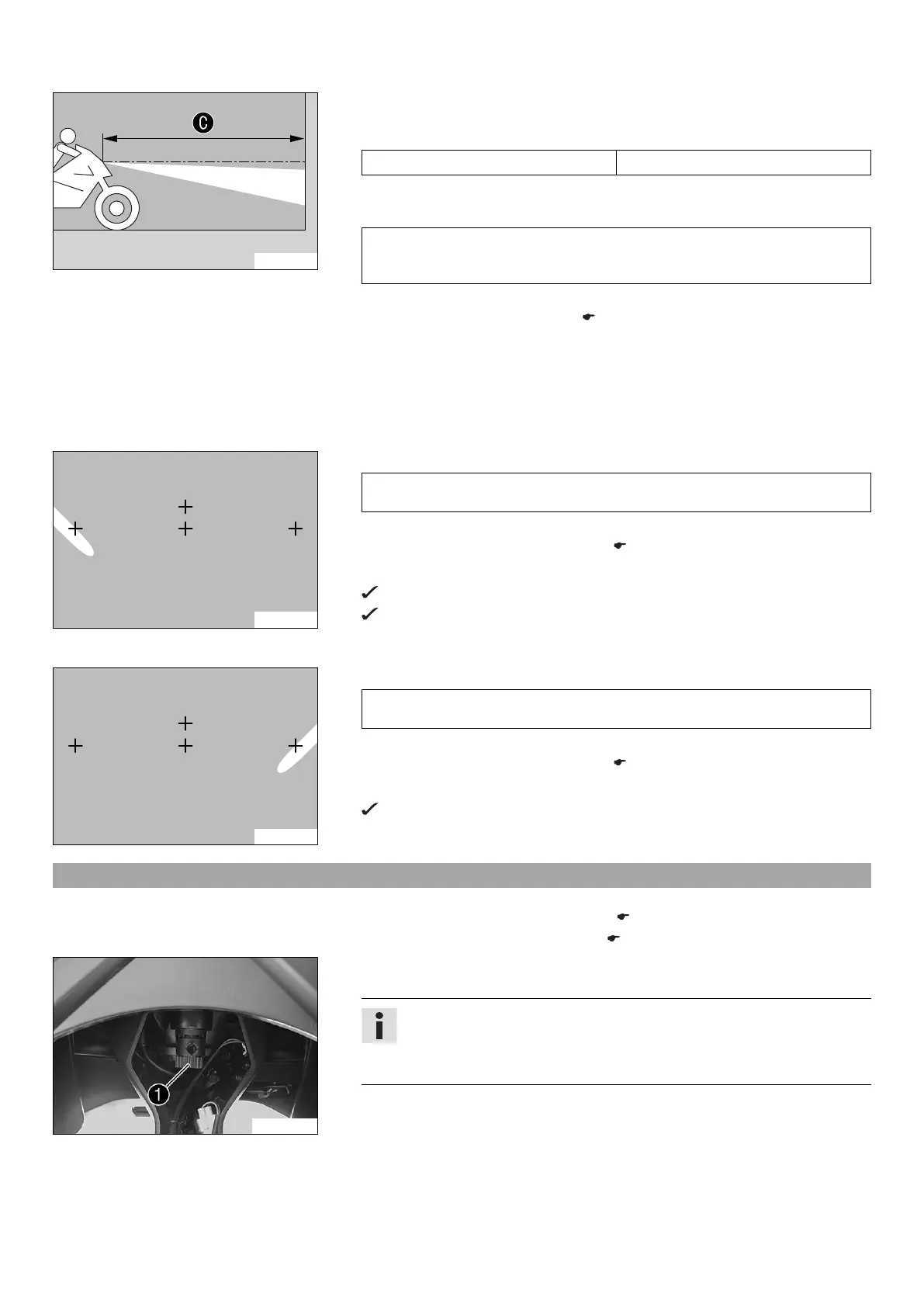

Position the vehicle perpendicular to the wall at a distance
from the wall and
switch on the low beam.
Guideline
Distance
5 m (16 ft)
– The rider, with luggage and passenger if applicable, now mounts the motorcycle.
– Check the headlight setting.
The light-dark boundary of the low beam must lie exactly on the lower mark when
the motorcycle is ready to operate with the rider mounted along with any luggage
and a passenger if applicable.
» If the boundary between light and dark does not meet specifications:
– Adjust the headlight range. ( p. 16)
– Press the UP or DOWN button until the "Settings" menu appears on the matrix dis-
play. Pressing the SET button opens the menu.
– Press the UP or DOWN button until "cLightTest" is highlighted in black on the matrix
display. Pressing the SET button again starts the cornering light test.
– Wait for a few seconds until the upper segment of the left cornering light lights up
continuously.
402427-01
– Checking the left cornering light setting.
The light-dark boundary of the upper segment must run exactly through the left
marking.
» If the boundary between light and dark does not meet specifications:
– Adjust the cornering light range. ( p. 17)
– Press the SET button.
The left cornering light is switched off.
The right cornering light test is started.
– Wait for a few seconds until the upper segment of the right cornering light lights up
continuously.
402428-01
– Checking the right cornering light setting.
The light-dark boundary of the upper segment must run exactly through the right
marking.
» If the boundary between light and dark does not meet specifications:
– Adjust the cornering light range. ( p. 17)
– Press the SET button.
The cornering light is switched off.
3.19 Adjusting the headlight range
Preparatory work
– Check the setting of the lighting system. ( p. 15)
– Remove the bottom triple clamp cover. ( p. 9)
M00807-10
Main work
–
Turn adjusting screw
to adjust the headlight range.
Info
Turn clockwise to increase the headlight range; turn counterclockwise to
reduce the headlight range.
If you have a payload, you may have to correct the headlight range.
