KTM Super Adventure 2016 User Manual

3 WORK 6

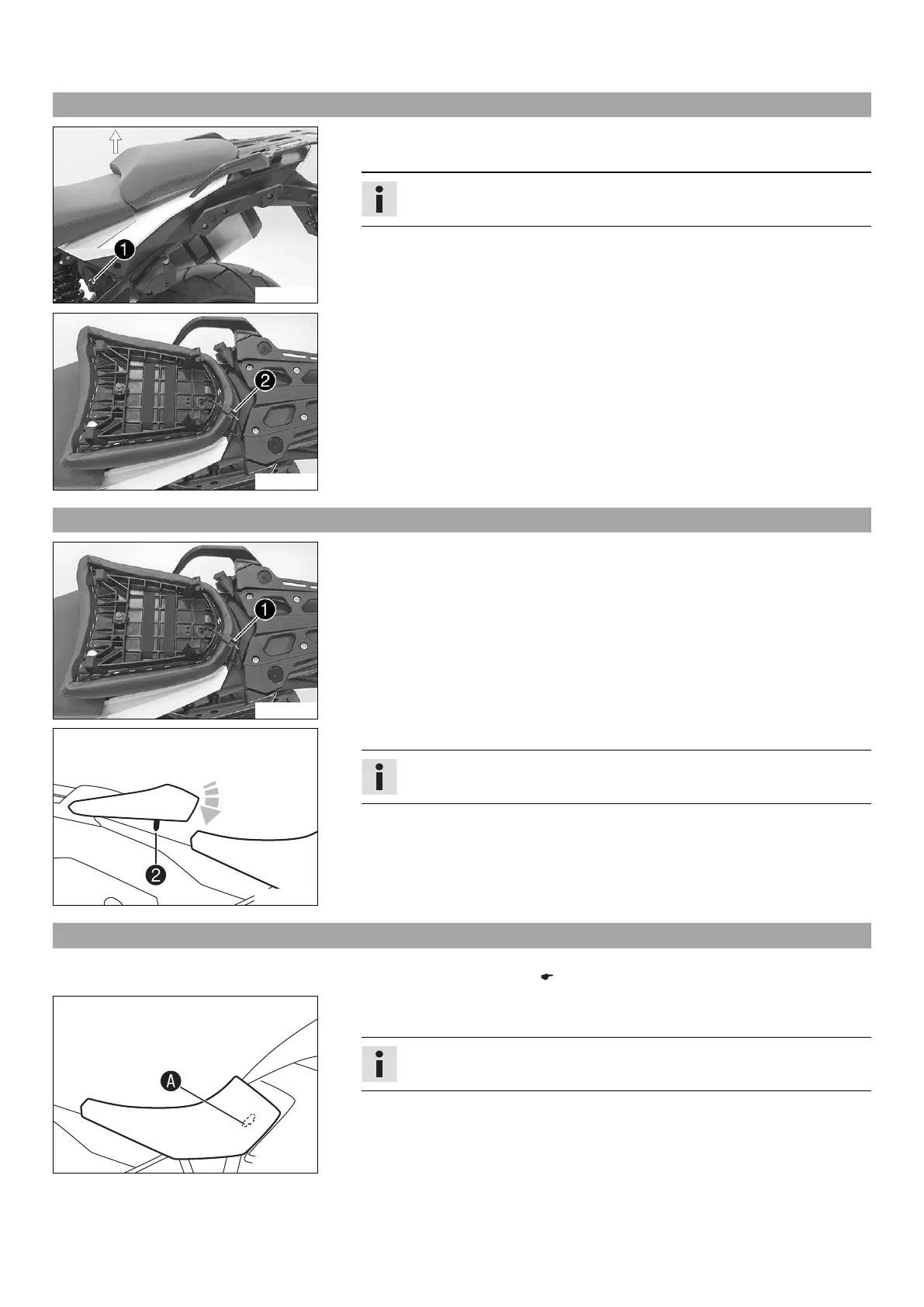

3.1 Removing the passenger seat
V00088-10
–
Insert the ignition key in seat lock

and turn it clockwise.
– Raise front of the passenger seat, pull toward the tank, and remove upward.
Info
Pay attention to the seat heating cable.
V00089-10
–
Disconnect plug-in connector

.
– Remove the ignition key.
3.2 Mounting the passenger seat
V00089-11
–
Connect plug-in connector

.
401680-11
– Attach the hooks on the passenger seat to the hanger on the subframe.
Info
Ensure that the seat heating cable is correctly routed.
– Lower passenger seat and push back at the same time.
–
Position locking pin

in lock housing and press passenger seat forward until the
locking pin engages with an audible click.
– Check that the passenger seat is correctly mounted.
3.3 Removing the front rider's seat
Preparatory work
– Remove the passenger seat. ( p. 6)
0
0
AA
M00856-10
Main work
–
Lift the rider's seat back and unhook in the

area.
Info
Pay attention to the seat heating cable.
