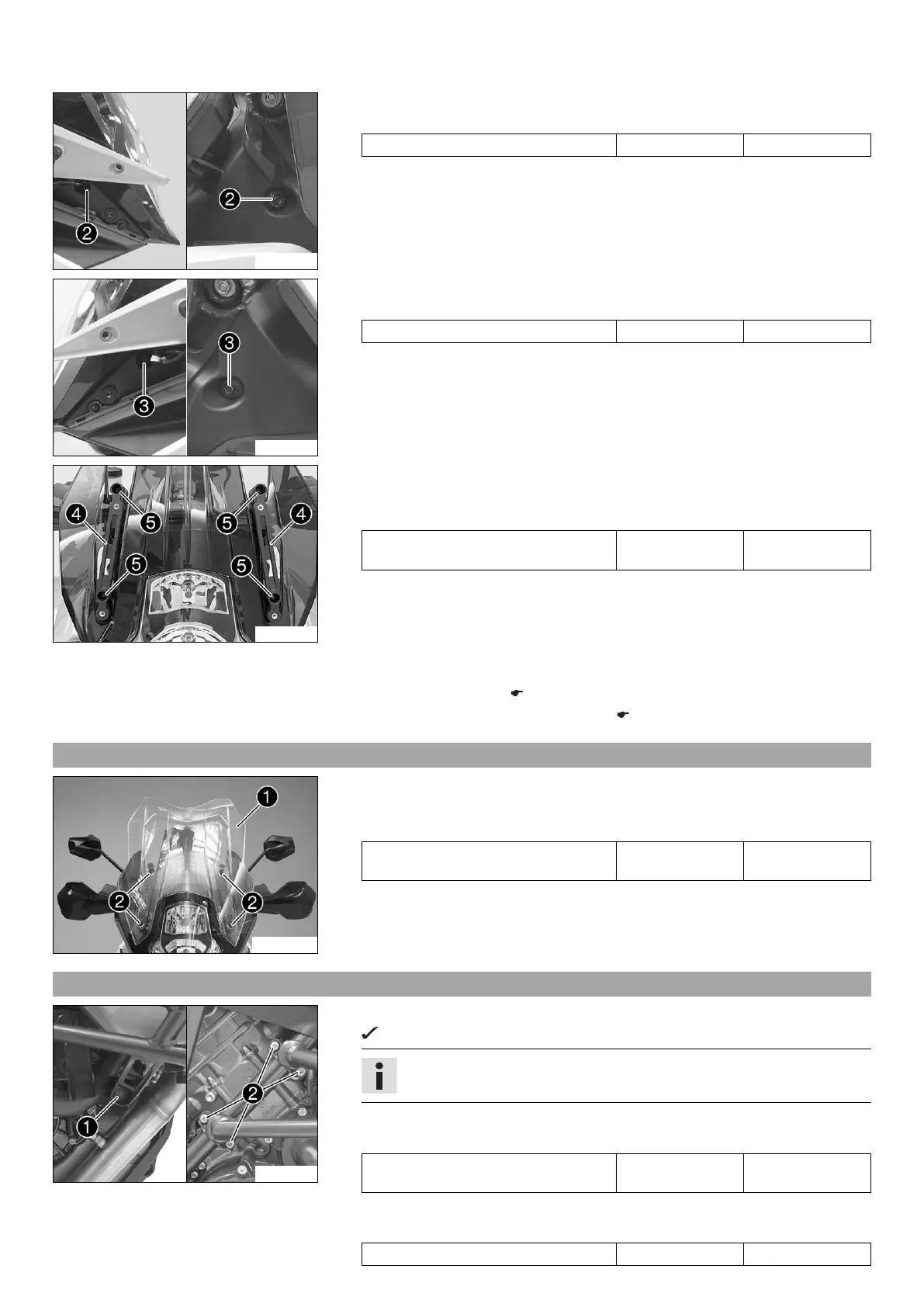

KTM Super Adventure 2016 User Manual

3 WORK 10
V00105-11
–
Mount and tighten screws

.
Guideline
Screw, headlight M6 5 Nm (3.7 lbf ft)
V00104-10
–
Mount and tighten screws

.
Guideline
Screw, headlight M6 5 Nm (3.7 lbf ft)
V00110-10
–
Position windshield adapter

.
–
Mount and tighten screws

.
Guideline
Screw, cover part M5 3.5 Nm
(2.58 lbf ft)
Finishing work
– Position the mask spoiler.
– Install the wind shield. ( p. 10)
– Check the setting of the lighting system. ( p. 15)
3.10 Installing the wind shield
M00769-10
–
Position wind shield

.
–
Mount and tighten screws

.
Guideline
Screw, wind shield M5 3.5 Nm
(2.58 lbf ft)
3.11 Installing the crash bar
V00098-10
– Position the right crash bar with the frame protector.
The fuel tank support ring should be correctly positioned on the fuel tank.
Info
Cover the components to protect them against damage.
–
Mount screw

, but do not tighten yet.
Guideline
Remaining chassis screws M8 25 Nm
(18.4 lbf ft)
–
Mount screws

, but do not tighten yet.
Guideline
Remaining chassis screws M6 10 Nm (7.4 lbf ft)
