SEAT HEIGHT 12
41

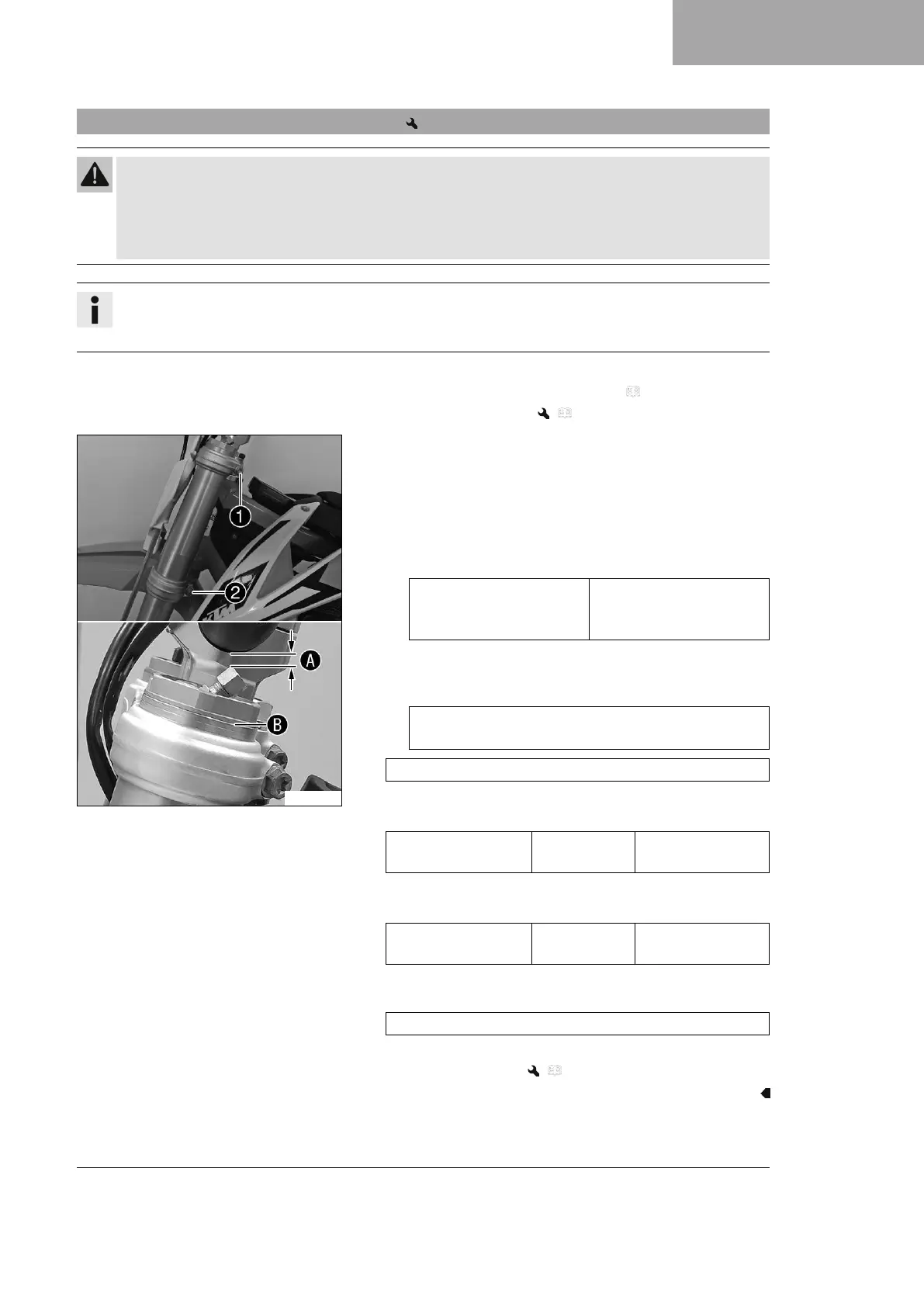

12.3 Adjusting the seat height on the fork
Warning
Danger of accidents Modifications to the suspension setting may seriously alter the handling characteris-
tic.
– Make sure your child rides slowly to start with after making adjustments in order that he or she can
assess the new handling characteristic.
Info
The seat height can be infinitely adjusted by pushing the fork legs through.
If the seat height is adjusted on the fork, the seat height should also be adjusted on the shock absorber.
Preparatory work
– Raise the motorcycle with a lift stand. ( p. 45)
– Remove the front wheel. ( p. 76)
M01811-10
Main work
–
Loosen screw
1
.
–
Loosen screw
2
.
– Position the fork leg according to the required seat height.
Guideline
Condition
Seat position as low as possible, fork fully inserted
Minimum distance
A
between the fork and han-
dlebar
3 mm (0.12 in)
Condition
Seat position as high as possible, fork pulled out com-
pletely
Bottom edge of screw cap
B
closes flush with the
upper edge of the triple clamp
Position the fork leg only within the described range.
–
Tighten screw
2
.
Guideline
Screw, bottom triple
clamp
M8 15 Nm (11.1 lbf ft)
–
Tighten screw
1
.
Guideline
Screw, top triple
clamp
M8 20 Nm (14.8 lbf ft)
– Repeat the procedure on the other fork leg.
Guideline
Position both fork legs equally.
Finishing work
– Install the front wheel. ( p. 76)
