KTM SX-E 5 2021 User Manual

SERVICE WORK ON THE CHASSIS 13
47

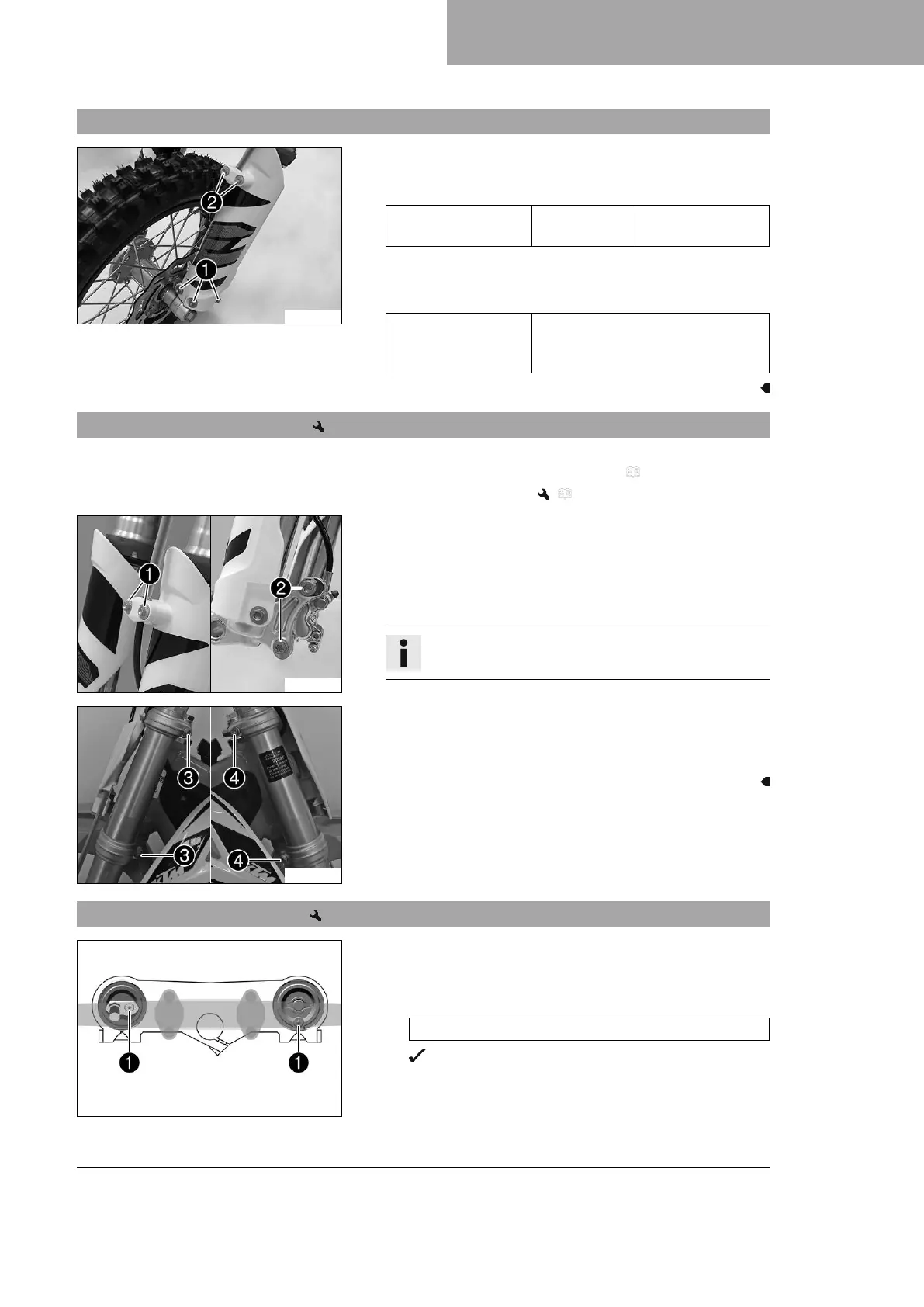

13.6 Installing the fork protector
M01663-11
– Position the fork protector on the left and right fork leg. Mount
and tighten screws
1
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
– Position the brake line and the clamp. Mount and tighten
screws
2
.
Guideline
Screw, brake line
clamp on fork protec-
tor
EJOT PT
®
K60x20‑AL
2 Nm (1.5 lbf ft)
13.7 Removing the fork legs
Preparatory work
– Raise the motorcycle with a lift stand. ( p. 45)
– Remove the front wheel. ( p. 76)
M01664-10
Main work
–
Remove screws
1
and take off the clamp.
–
Remove screws
2
and take off the brake caliper.
– Allow the brake caliper and the brake line to hang loosely to
the side.
Info
Do not kink the brake line.
M01812-10
– Note the installation position of the fork legs.
–
Loosen screws
3
. Remove the left fork leg.
–
Loosen screws
4
. Remove the right fork leg.
13.8 Installing the fork legs
F02179-10
Condition
Individual installation position
– Position the fork legs.
Guideline
Observe the position determined during removal.
Bleeder screws
1
are positioned toward the rear.
Condition
Standard installation position
– Position the fork legs.
