13 SERVICE WORK ON THE CHASSIS
60

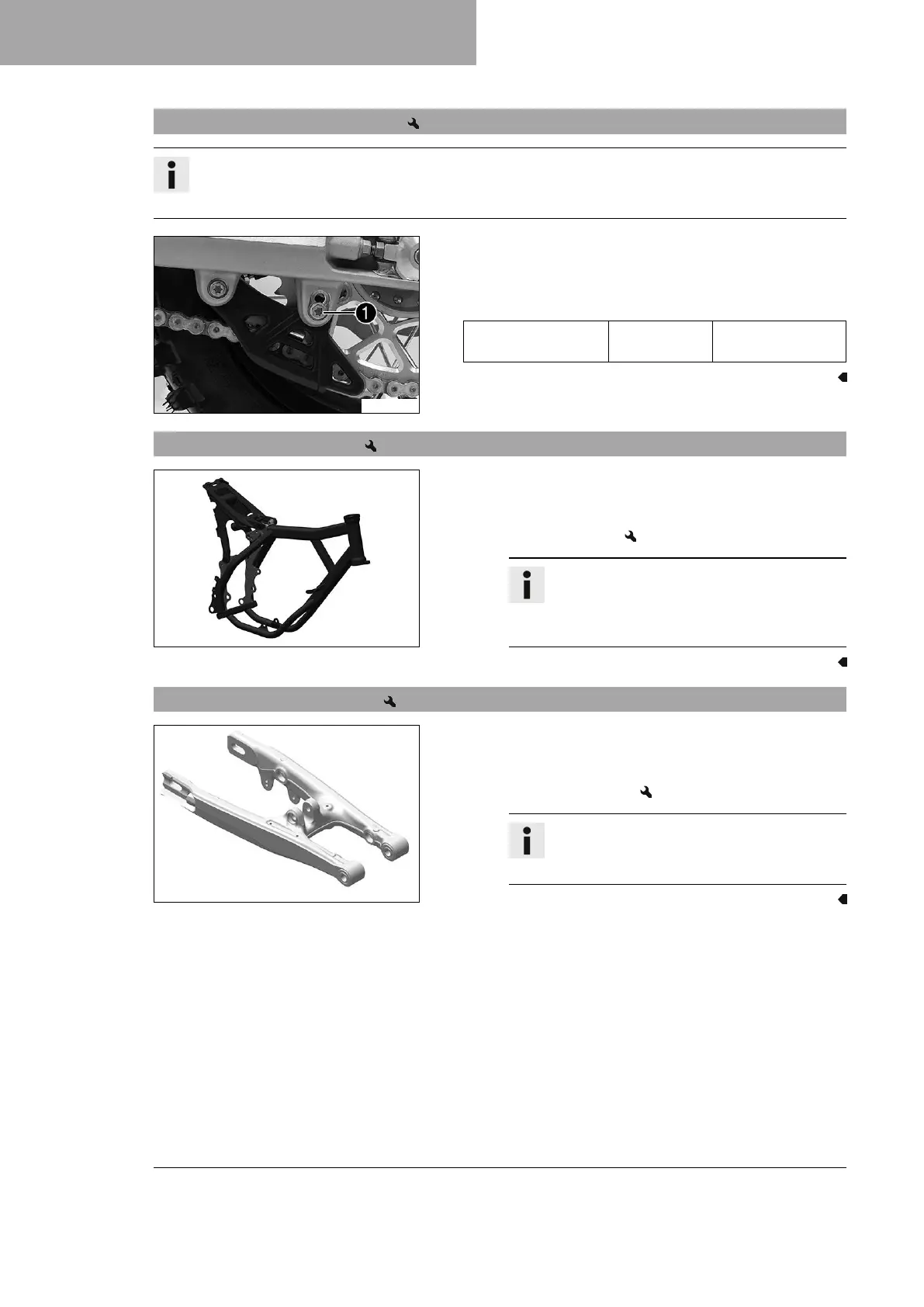

13.27 Adjusting the chain guide
Info
The size of the chain wheel varies with the number of teeth. The chain guide can be adjusted on small
sprockets.
M01693-10
–
Remove screw
1
.
– Position the chain guide.
– Mount and tighten the screw.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
13.28 Checking the frame
M01652-01
– Check the frame for cracks and deformation.
» If the frame exhibits cracks or deformation due to a
mechanical impact:
– Change the frame.
Info
Always replace a frame that has been dam-
aged due to a mechanical impact. Repair of the
frame is not authorized by KTM.
13.29 Checking the link fork
F02202-01
– Check the link fork for damage, cracking, and deformation.
» If the link fork shows signs of damage, cracking, or defor-
mation:
– Change the link fork.
Info
Always replace a damaged link fork. Repairing
the link fork is not authorized by KTM.
