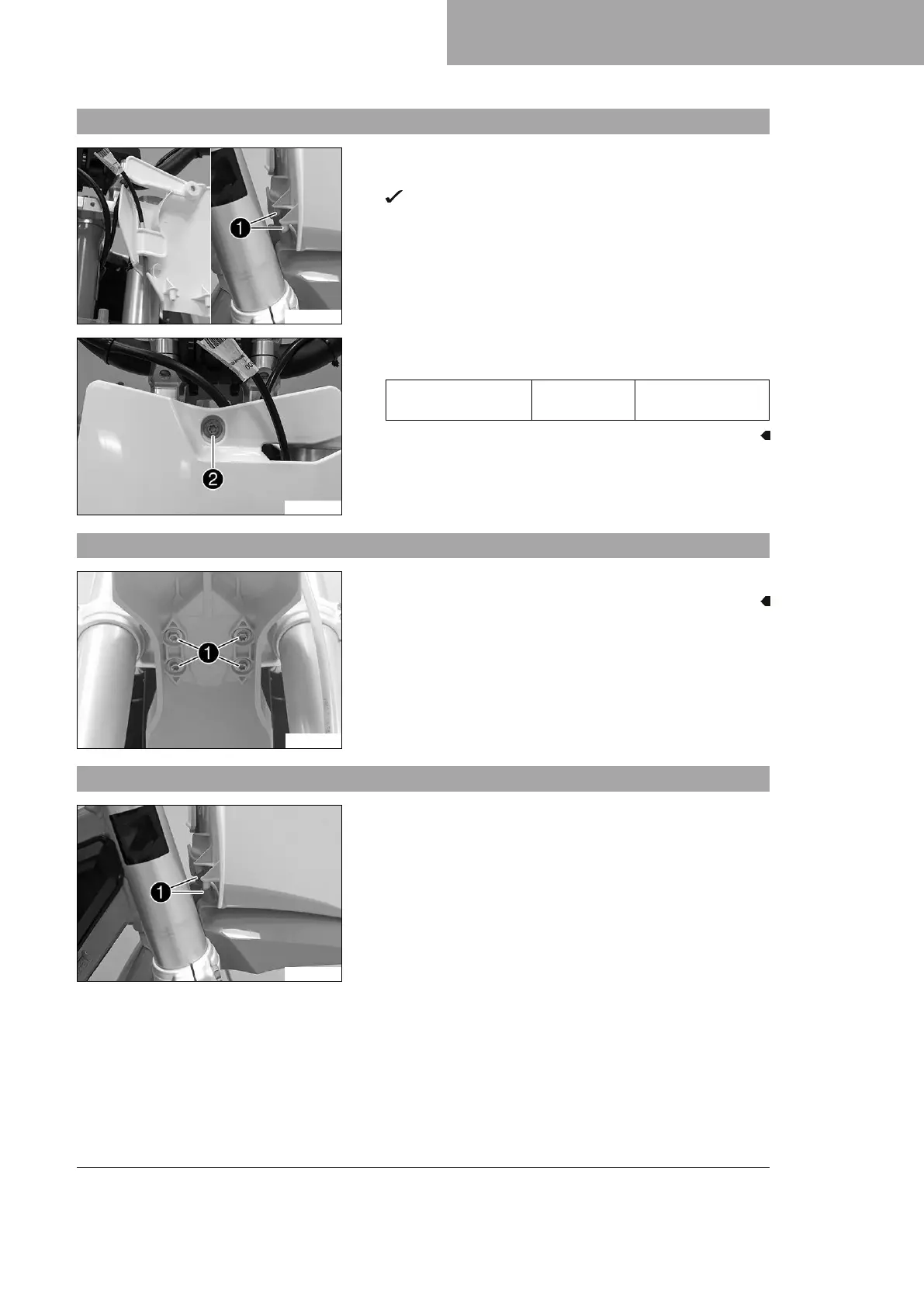

SERVICE WORK ON THE CHASSIS 13

13.15 Installing the start number plate

M01682-10

– Attach the start number plate to the brake line.

– Position the start number plate.

Holding lugs

engage in the fender.

M01683-10

–

Mount and tighten screw

Guideline

Screw, start number

plate

M6 4 Nm (3 lbf ft)

13.16 Removing front fender

H01428-10

–

Remove screws

. Take off the front fender.

13.17 Installing front fender

M01671-10

–

Position the fender with drill holes

in the holding lugs on

the start number plate.
