14 BRAKE SYSTEM
70

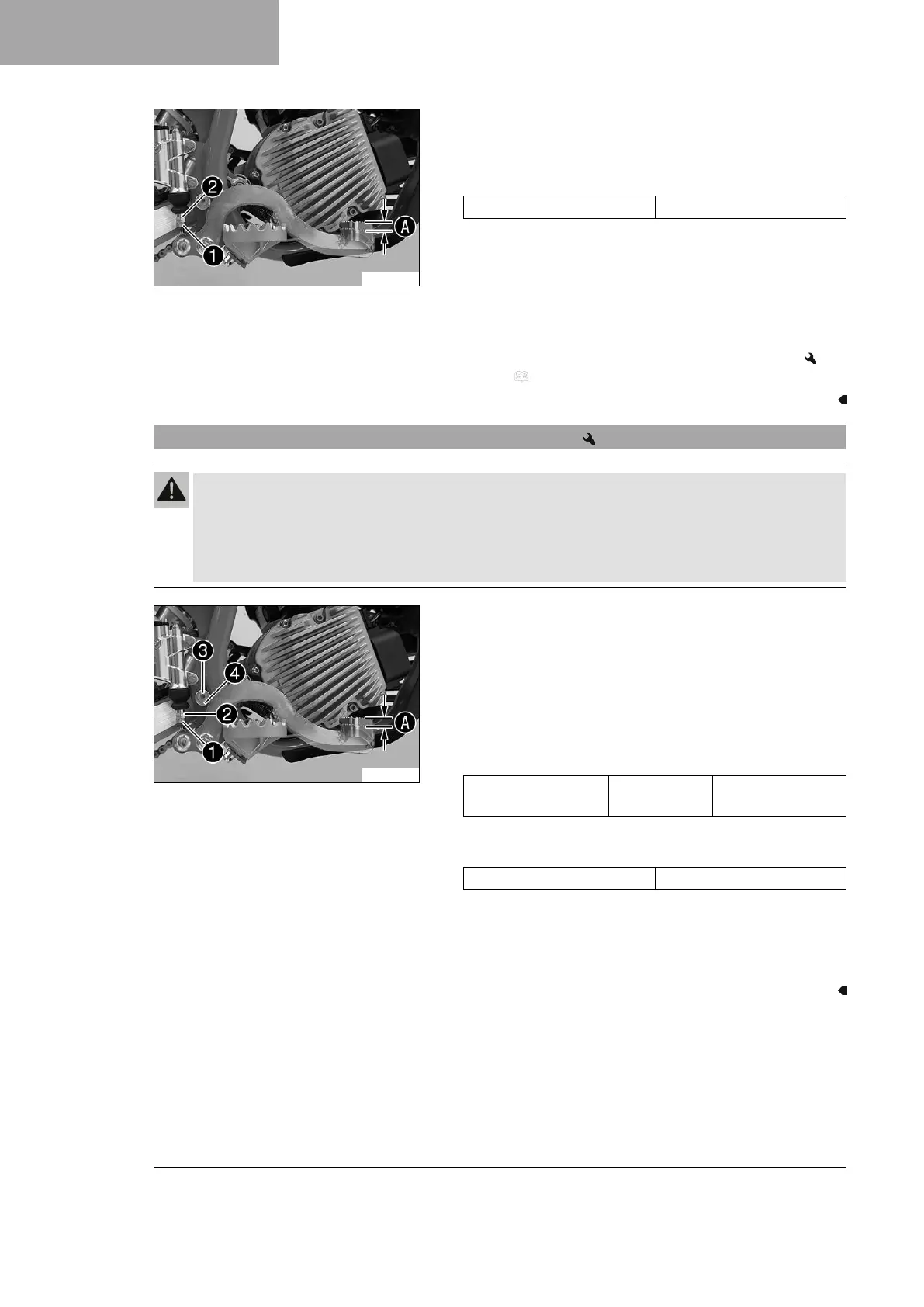

M01694-11
– Detach the foot brake lever spring.
–
Loosen nut
1
.
–
Turn push rod
2
accordingly until you have free travel
A
.
Guideline
Free travel of foot brake lever 3 … 5 mm (0.12 … 0.2 in)
–
Hold push rod
2
and tighten nut
1
.
– Attach the foot brake lever spring.
– Check whether the basic position of the foot brake lever is suit-
able for the rider.
» When the basic position of the foot brake lever needs to be
adjusted:
– Adjust the basic position of the foot brake lever.
( p. 70)
14.11 Adjusting the basic position of the foot brake lever
Warning
Danger of accidents The brake system fails in the event of overheating.
If there is no free travel on the foot brake lever, pressure builds up in the brake system on the rear
brake.
– Set the free travel on the foot brake lever in accordance with the specification.
M01694-12
– Detach the foot brake lever spring.
–
Loosen nut
1
.
–
Turn back push rod
2
until free travel is at a maximum.
– For an individual adjustment of the basic position of the foot
brake lever, loosen the screw
3
and turn the eccentric brake
lever stop
4
accordingly.
–
Tighten screw
3
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
–
Turn push rod
2
accordingly until you have free travel
A
.
Guideline
Free travel of foot brake lever 3 … 5 mm (0.12 … 0.2 in)
–
Hold push rod
2
and tighten nut
1
.
– Attach the foot brake lever spring.
– Check whether the basic position of the foot brake lever is suit-
able for the rider.
