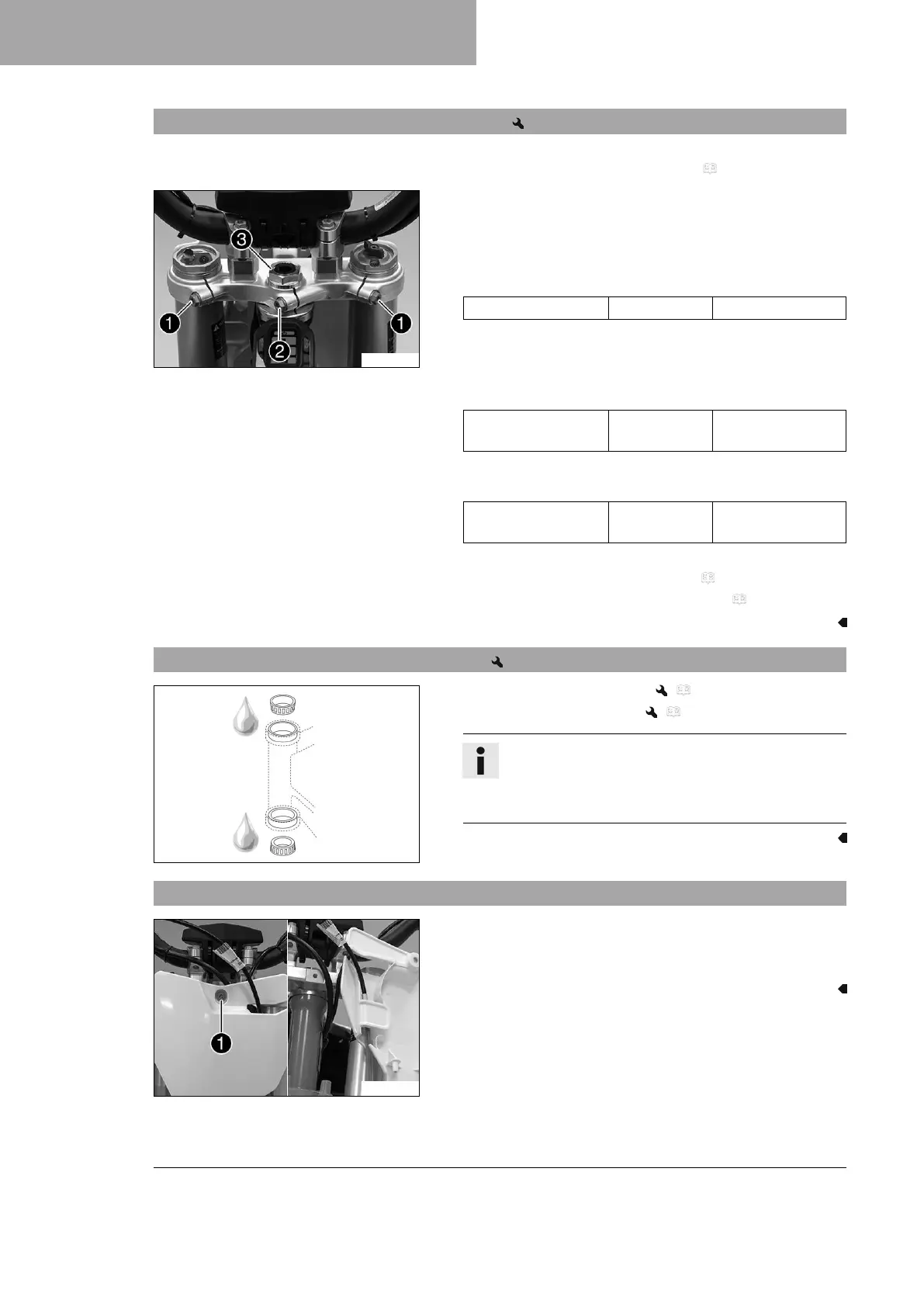

13.12 Adjusting the steering head bearing play
Preparatory work
– Raise the motorcycle with a lift stand. ( p. 45)
M01718-10
Main work
–
Loosen screws
1
.
–
Loosen screw
2
.
–
Loosen and retighten nut
3
.
Guideline
Nut, steering head M20x1.5 10 Nm (7.4 lbf ft)
– Using a plastic hammer, tap lightly on the upper triple clamp
to avoid stresses.
–
Tighten screw
2
.
Guideline
Screw, top triple
clamp
M8 20 Nm (14.8 lbf ft)
–
Tighten screws
1
.
Guideline
Screw, top triple
clamp
M8 20 Nm (14.8 lbf ft)
Finishing work
– Check the steering head bearing play. ( p. 51)
– Remove the motorcycle from the lift stand. ( p. 45)
13.13 Lubricating the steering head bearing
H02387-01
– Remove the lower triple clamp. ( p. 48)
– Install the lower triple clamp. ( p. 49)
Info
The steering head bearing is cleaned and lubricated in
the course of removal and installation of the lower triple
clamp.
13.14 Removing the start number plate
M01681-10
–
Remove screw
1
.
– Unhook the start number plate from the brake line and remove
it.
