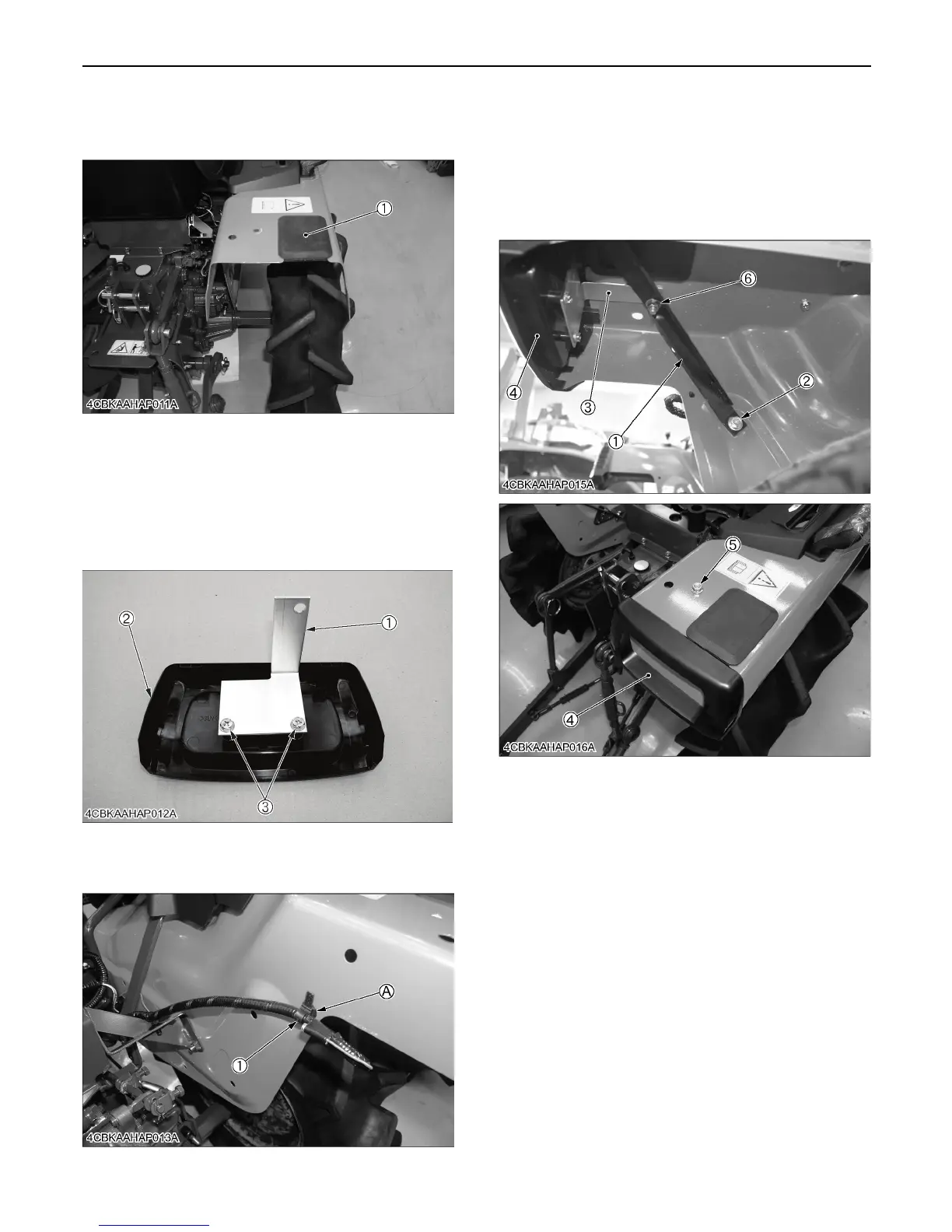

7ASSEMBLY INSTRUCTIONS
BAttaching the Fender Cover
1. Install the fender cover (1) on the right and left fenders.
BAttaching the Tail Cover and Rear Fender
Stay
[B1220]
1. Secure the tail light cover stay (LH and RH) (1) to their
respective tail light covers (2) with two tapping screws
(3).
2. Insert the cord clamp of wire harness (1) into the hole
(A) of the fender (RH).
3. Attach the rear fender stay (1) to the fender (LH and
RH) with the M8 x 20 bolt (2).
4. Align the hole of the tail cover stay (3) with that of the
fender and rear fender stay.
Secure the tail cover (4) tightening the M8 x 20 bolt (5)
and M8 nut (6).
To Next Page
