Kubota B1620 Assembly Instructions

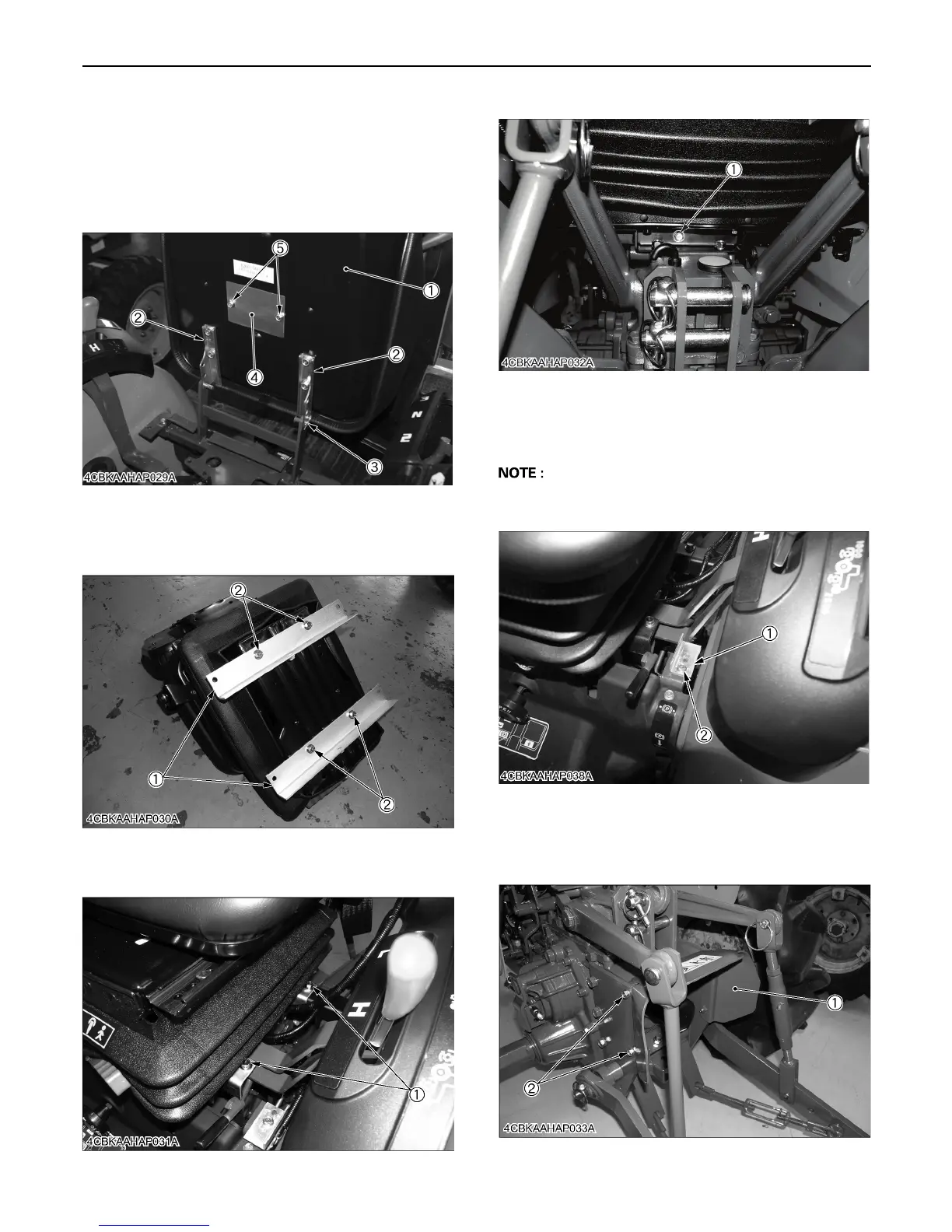

ASSEMBLY INSTRUCTIONS12
BAttaching the Seat
[B1220, B1820ACE]
1. Attach the seat stays (2) to the seat (1).
2. Attach the seat (1) and set the snap pin (3).
3. Apply the OPC seat cover (4) to the seat (1) with the
bolts (5). [B1220]
[B1620, B1820]
1. Attach the upper seat support (1) to the seat with the
two M8 x 20 bolts (2).
2. Place the seat on the tractor and fix it with five M8 x 20
bolts (1).
BAttaching the Check Plate
1. Attach the check plate (1) with the M6 x 16 bolt (2).
A Make sure the hole of the check plate (1) is placed
forward.
BAttaching the PTO Cover
1. Attach the PTO cover (1) to the lower link stay and
tighten them with four M8 x 25 bolts (2).
