15ASSEMBLY INSTRUCTIONS

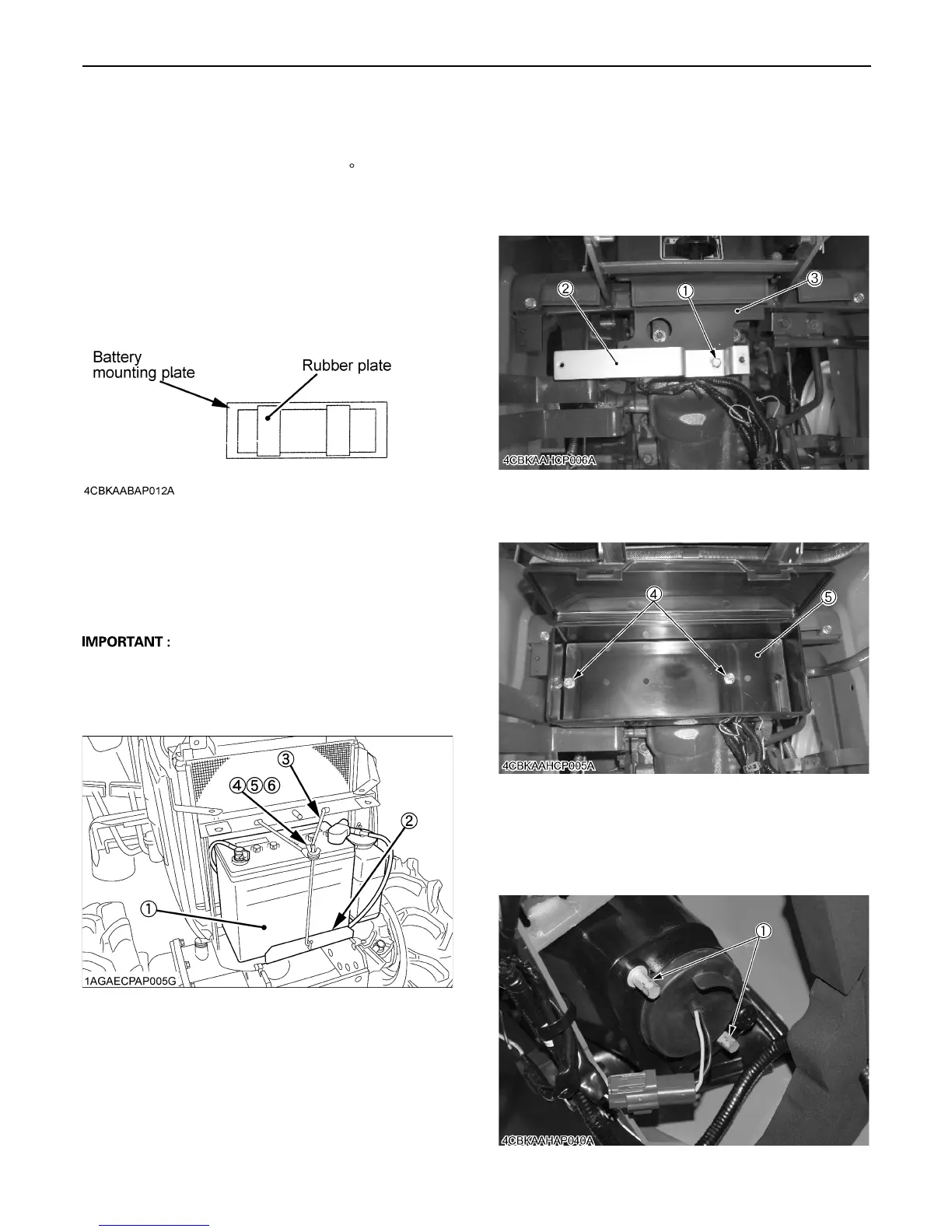

BHooking up the Battery
1. Perform the following after the battery has received a
good charge (specific gravity: 1.26/20 C).
(1) Check that the battery fluid is at an intermediate
point between the upper and lower level
markings.
(2) Wipe the battery clean of any battery fluid on the
outside. (Battery should be washed clean with
water so no acid is left on battery case.)
2. Next, mount the battery (1) on the mounting plate (2).
while doing so, make sure the two rubber plates are in
the correct position (see figure below).
3. Fix the battery (1) in place with the battery retainer (3),
the battery set bolt (4), the M6 plain washer (5) and the
wing nut (6).
4. Connect the (+) cable first, then the (-) cable.
5. Apply a moderate amount of grease to the battery
terminals.
A Always connect the (+) cable of the battery before the
(-) cable.
Connecting the (-) cable first runs the risk of short
circuit while connecting the (+) cable.
BAttaching the Tool Box
[B1820ACE]
1. Remove the M8 x 20 bolt (1).
2. Attach the tool box stay (2) to the seat support (3) with
the M8 x 20 bolt (1).
3. Attach the tool box (5) to the tool box stay (2) with the
two M6 x 20 bolt (4).
ADJUSTING THE HEAD LIGHT
ALIGNMENT
[B1620, B1820]
1. Adjust the head light alignment turning the screws (1).
