ASSEMBLY INSTRUCTIONS8
BAttaching the Tail Light and License
Holder Stay
[B1620, B1820]

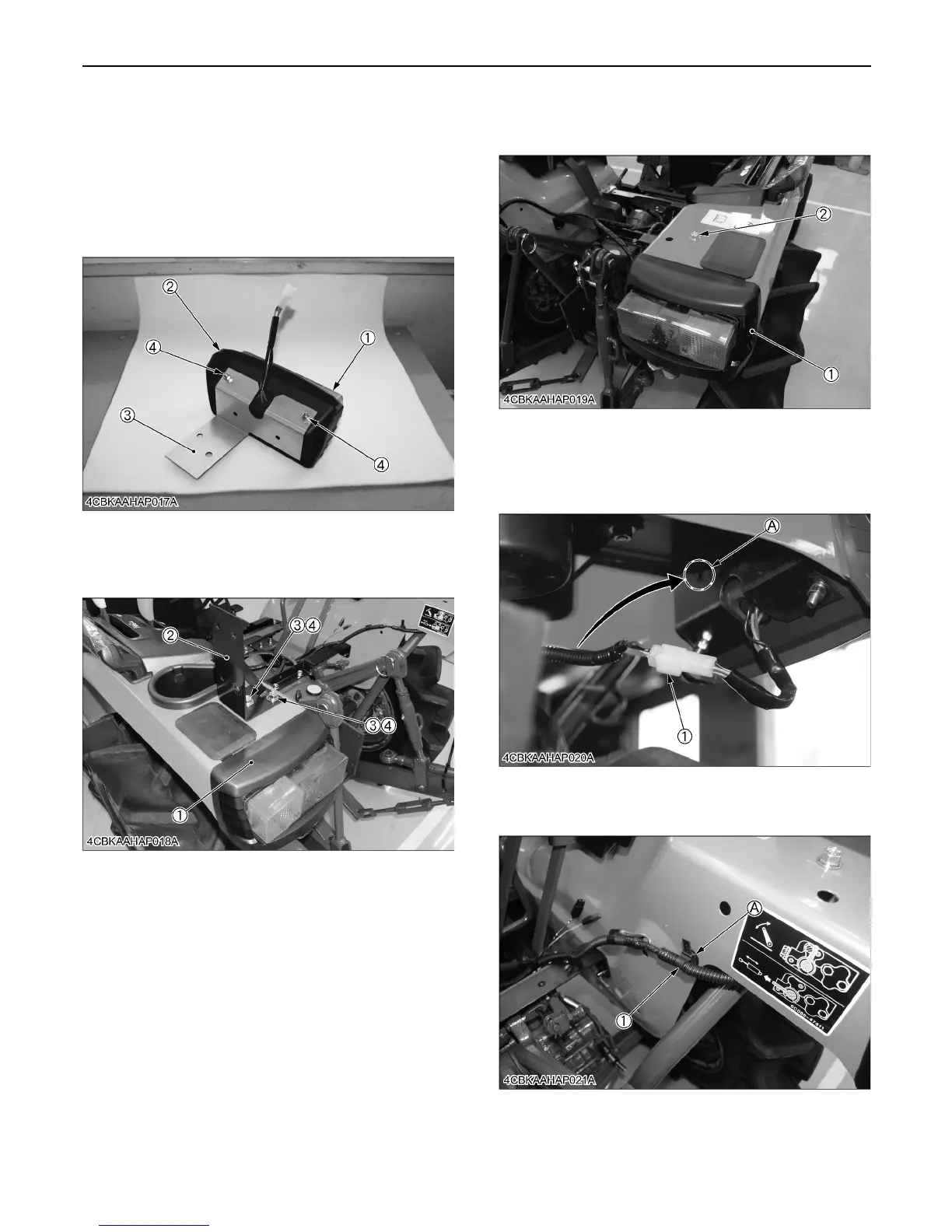

1. Attach the tail light (1) to the tail light cover (2).
2. Attach the tail light stay (3) to the tail light cover (2) with
the nuts (4) and tighten them.
3. Install the tail light assembly (1) and license holder
stay (2) at the right or left rear of the tractor with the M8
x 20 bolts (3), M8 nut (4).
4. Install the tail light assembly (1) with the M8 x 20 bolt
(2) to the right rear of the tractor.
5. Connect the rear combination light cables to the wire
harness cables with the 4-P coupler (1). (Both sides)
Insert the cord clamp of wire harness into the hole (A)
of tail light stay (RH and LH).
6. Insert the cord clamp of wire harness (1) into the hole
(A) of fender (RH and LH).
