13ASSEMBLY INSTRUCTIONS

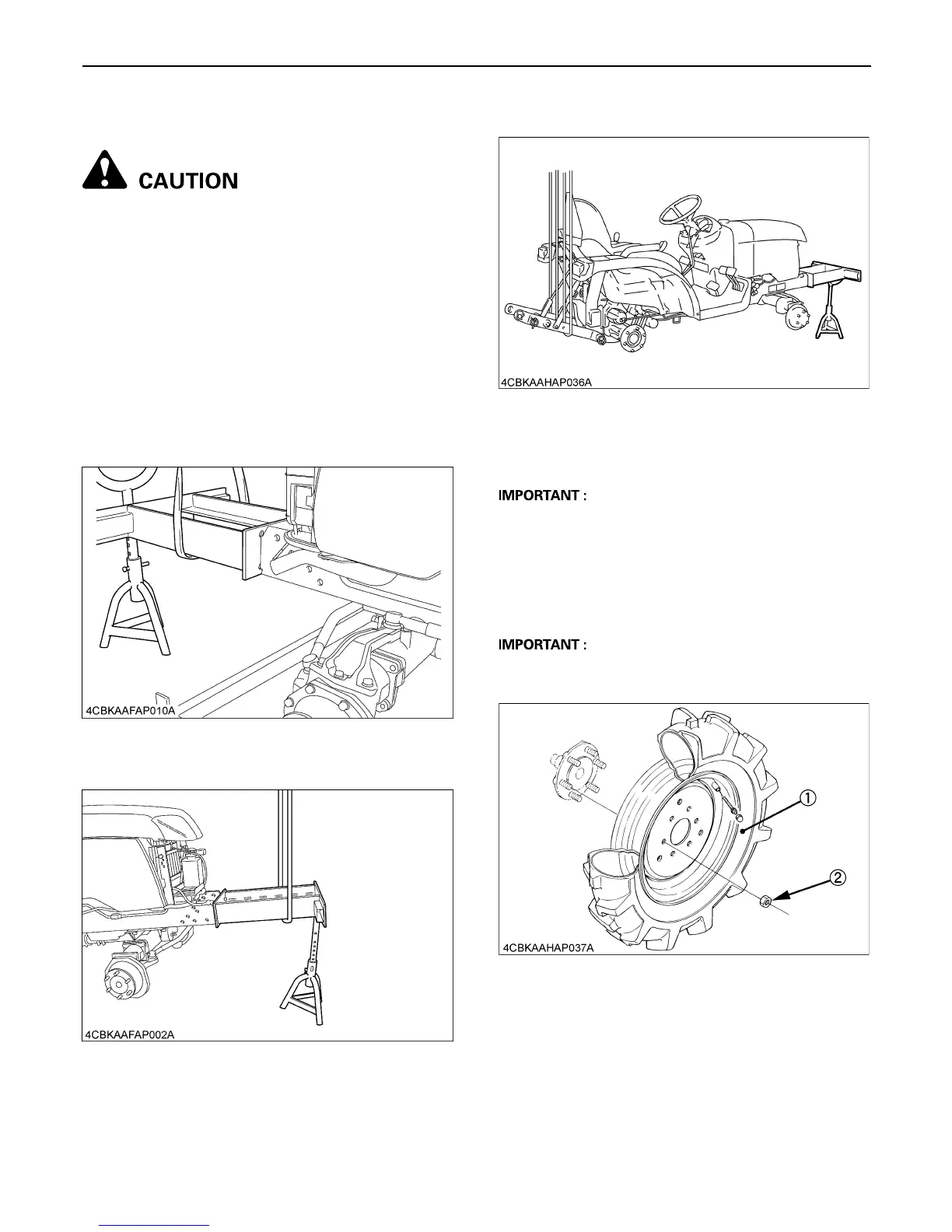

BHoisting the Tractor
To avoid personal injury:
A Set blocks and/or safety stands under the
tractor when suspended, to prevent falling,
before working under neath.
C Hoist and jigs
1. Use a 1 ton or larger hoist.
2. Use belt straps to protect the painted surfaces from
scratches.
3. Prepare blocks and safety stands.
C Hoist hook position
Never raise the front and rear ends at the same time.
A Front end: Fit the front hitch to the front bumper with
the four bolts. Lift the assembly as shown in the figure.
A Suspend the front jig, place a safety stands below and
put the jig on the safety stands.
A Rear end : Hook to ROPS as indicated in the figure.
BAttaching the Front Tires
1. Attach the front tires (1) (left and right) with twelve M12
nuts (2).
A Be sure the inflation valve stem of each tire faces
outward.
2. Tightening torque for the M12 nuts (2), should be 79.0
to 92.0 N-m (8.1 to 9.4 kgf-m, 58.3 to 67.9 ft-lbs).
3. Check air pressure in the front tires.
4. Remove the front jig.
A Refer to the Operator's Manual for the proper air
pressure.
