29PTO
ENGLISH
A If the PTO clutch lever is shifted to "ON" (Engaged)
position under the following condition, the engine
stops automatically after standing up.
(1) The speed control pedal is not at "NEUTRAL"
position.
(2) The PTO select lever is not at "REAR PTO"
position.
(3) The parking brake is not applied.
BPTO Drive Shaft
1. When using a PTO drive shaft, read the operator's
manual of the implement before operating the
implement.
PTO drive shafts are designed for specific machines
and power requirement.
2. To adjust the length of the PTO drive shaft, refer to the
following instructions.
(1) To adjust the length, hold the half shafts next to
each other in the shortest working position and
mark them.
(2) Shorten inner and outer guard tubes equally.
(3) Shorten inner and outer sliding profiles tube by
the same length as the guard tubes.
(4) Round off all sharp edges and remove burrs.
Grease sliding profiles.
3. Ensure that the PTO drive shaft is securely connected
at both ends before operating.

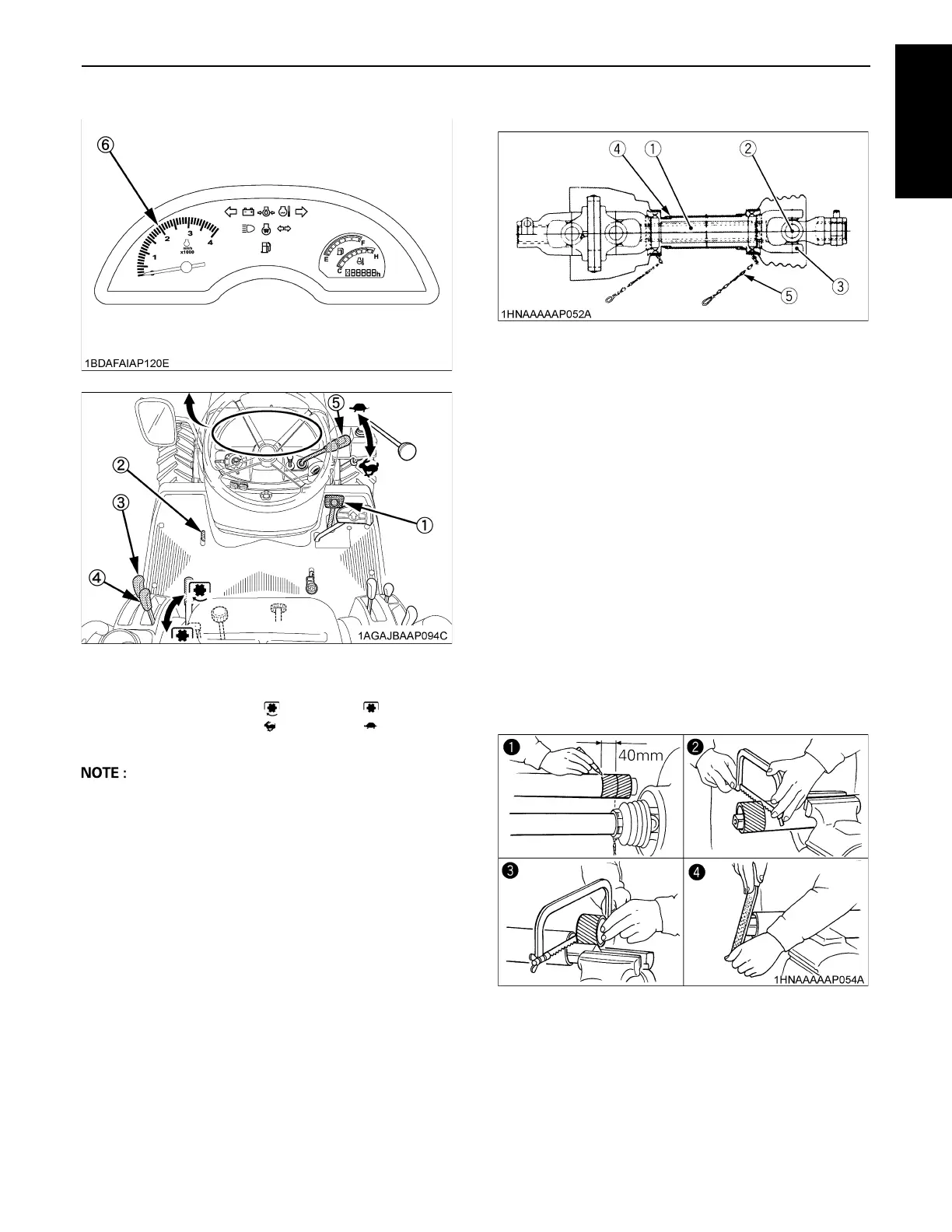

(1) Brake pedal
(2) Parking brake lock pedal
(3) PTO select lever
(4) PTO clutch lever
(5) Hand throttle lever
(6) Tachometer
"ON"
"INCREASE"
"OFF"
"DECREASE"
(1) Inner and outer sliding profile tubes
(2) Journal cross assy
(3) Fitting yoke
(4) Safety guard (In, Out)
(5) Chain
