CAB OPERATION46
ENGLISH
HEATER
BAirflow
Air in the CAB and fresh air introduced into the CAB flow
as shown below. Adjust the air nozzles to obtain the
desired condition.
BFan Switch
Press the switch to engage the fan of the heating.
Press it a second time to engage the highest or second
speed of the fan.
BAir Control Vent
To have warm air inside the CAB, engine coolant has to
be hot. Run the tractor a little before operating the heater.
C Air nozzles adjustment
The air outlets are located at the front top inside the CAB
as shown in the figure. They can be fully opened or fully
closed. They can be turned left or right depending on the
desired air directions (on the windows or on the operator).
The air nozzles can be rotated (360 ) to change the air
directions.
To avoid personal injury;
A Replace the water hoses every two years.
A Daily inspection
Have the tractor repaired immediately if any of
the following defects are discovered.
(Such defects may cause burns or injury. They
may also cause engine seizure or other serious
failure.)
A Scratches, cracks or swelling in water
hoses.
A Water leakage at water hose joints.
A Missing or damaged water hose protective
wrap or grommets.
A Loose mounting bolts, damaged brackets.
A Do not touch the water hoses and the heater
with your hand. You may get burned.
A If the window fails to defrost in extreme
conditions or becomes cloudy when
dehumidifying the CAB, wipe off moisture with
a soft cloth.
A Do not block all the air nozzles of the air
conditioner. A trouble could occur.

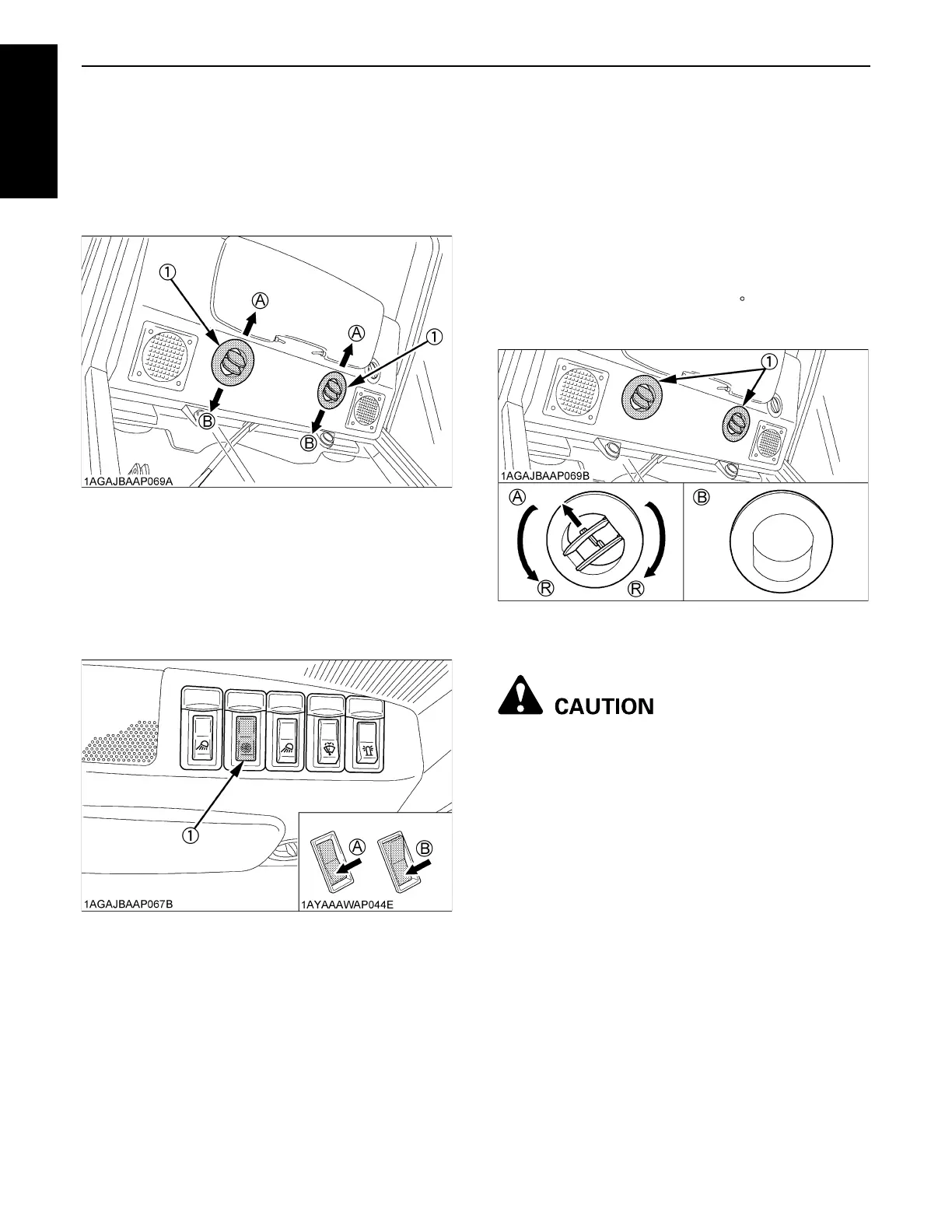

(1) Air nozzle (A) Driver area air
(B) Front window air
(1) Fan switch (A) "ON" (Press the first time)
(B) "HIGH" (Press the second time)
(1) Air nozzle (A) "OPEN"
(B) "CLOSE"
(C) "ROTATE"
