53PERIODIC SERVICE
ENGLISH
PERIODIC SERVICE
To avoid personal injury:
A Do not work under any hydraulically supported
devices. They can settle, suddenly leak down,
or be accidentally lowered. If necessary to work
under tractor or any machine elements for
servicing or adjustment, securely support them
with stands or suitable blocking beforehand.

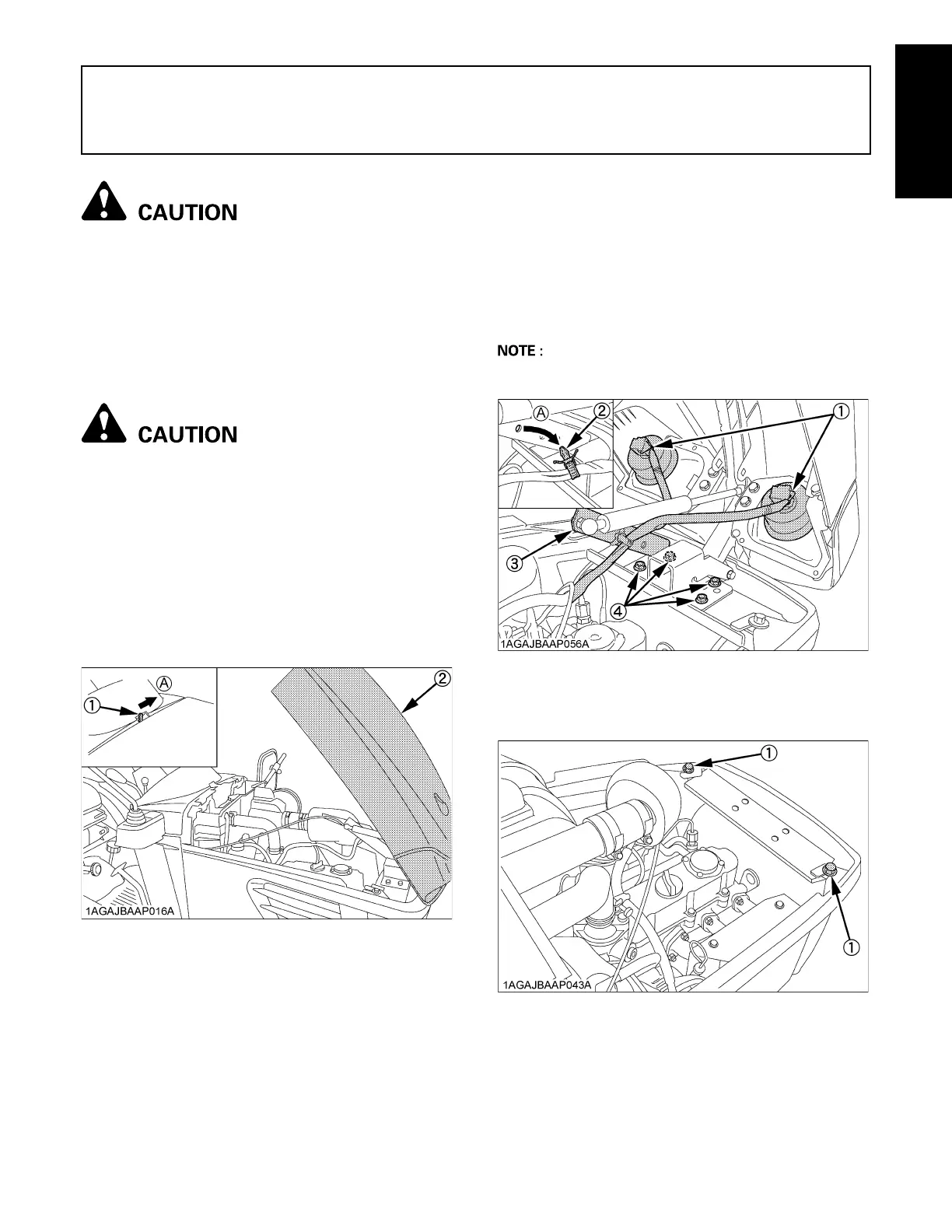

HOW TO OPEN THE HOOD
To avoid personal injury from contact with moving
parts;
A Never open the hood or engine side cover while
the engine is running.
A Do not touch muffler or exhaust pipes while
they are hot;
Severe burns could result.
BHood
To open the hood, rotate the knob to release the latch and
open the hood.
BEngine Cover
1. To detach the hood, disconnect the headlight
connector and draw the cord clamp out of the hole in
the hood post.
2. Remove the four nuts, and the hood can be detached
together the hood post.
3. To remove the engine cover, loosen the bolts.
A It is not necessary to detach the engine cover for daily
check.
(1) Knob
(2) Hood
(A) "ROTATE"
(1) Connector
(2) Cord clamp
(3) Hood post
(4) Nuts
(A) "DRAW OUT"
(1) Bolts
