Kubota BX2380 User Manual

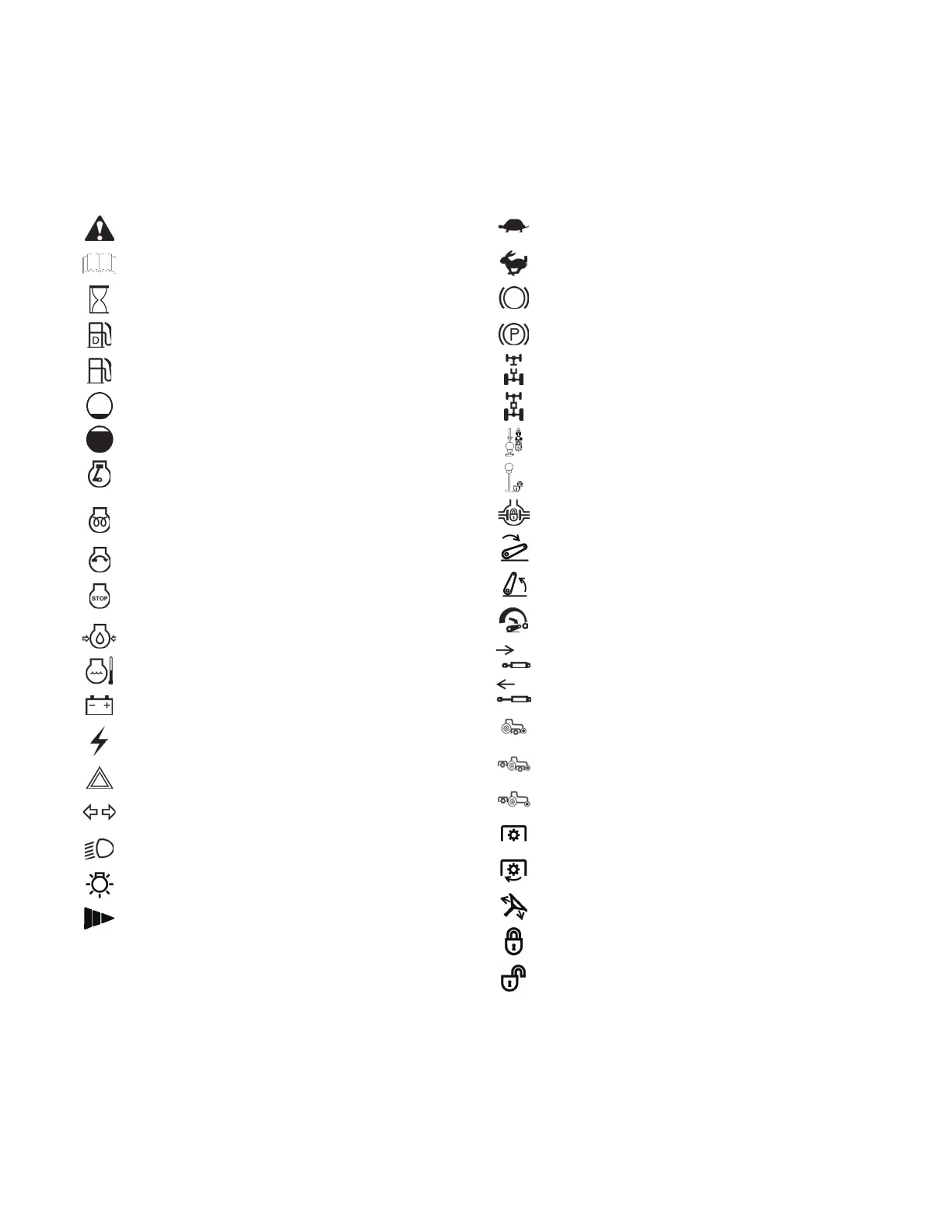

UNIVERSAL SYMBOLS
As a guide to the operation of your tractor, various universal symbols have been utilized on the instruments and
controls. The symbols are shown below with an indication of their meaning.
Safety Alert Symbol
Read Operator's Manual
Hour meter/Elapsed Operating Hours
Diesel Fuel
Fuel-Level
Empty
Full
Engine-Run
Diesel Preheat/Glow Plugs (Low Temperature
Start Aid)
Starter Control
Engine-Stop
Engine Oil-Pressure
Engine Coolant-Temperature
Battery Charging Condition
Electrical Power-accessories
Hazard Warning Lights
Turn Signal
Headlight
Master Lighting Switch
Engine Speed Control
Slow
Fast
Brake
Parking Brake
4-Wheel Drive-Off
4-Wheel Drive-On
Speed set-On
Speed set-Off
Differential Lock
Hydraulic Control-Lowered Position
Hydraulic Control-Raised Position
3-Point Lowering Speed Control
Remote Cylinder-Retract
Remote Cylinder-Extend
Mid-PTO
Mid-Rear-PTO
Rear-PTO
Power Take-Off Clutch Control-Off Position
Power Take-Off Clutch Control-On Position
Tilt Steering Lever
Loader Lock Lever Lock Position
Loader Lock Lever Unlock Position

Kubota BX2380 Specifications

General

Engine Model	D902
Displacement	54.8 cu in (0.9 L)
Engine Power	23 hp (17.2 kW)
PTO Power	17.7 hp (13.2 kW)
Transmission	Hydrostatic
Drive	4WD
Fuel Capacity	6.6 gal (25 L)
Hydraulic System	Open center
3-Point Hitch	Category I
Lift Capacity at 24"	680 lbs (308 kg)
Tire Size (Front)	18x8.5-10
Tire Size (Rear)	26x12-12
Engine Type	3-cylinder diesel
Wheelbase	55.1 in (1400 mm)
Weight	1433 lbs (650 kg)
