1. Operator's seat
WARNING
To avoid serious injury or death:
• Make adjustments to the seat only while the
tractor is stopped.
• Make sure that the seat is completely secured
after each adjustment.
• Do not allow any person other than the operator
to ride on the tractor.
[BX1880]
[BX2380 and BX2680]

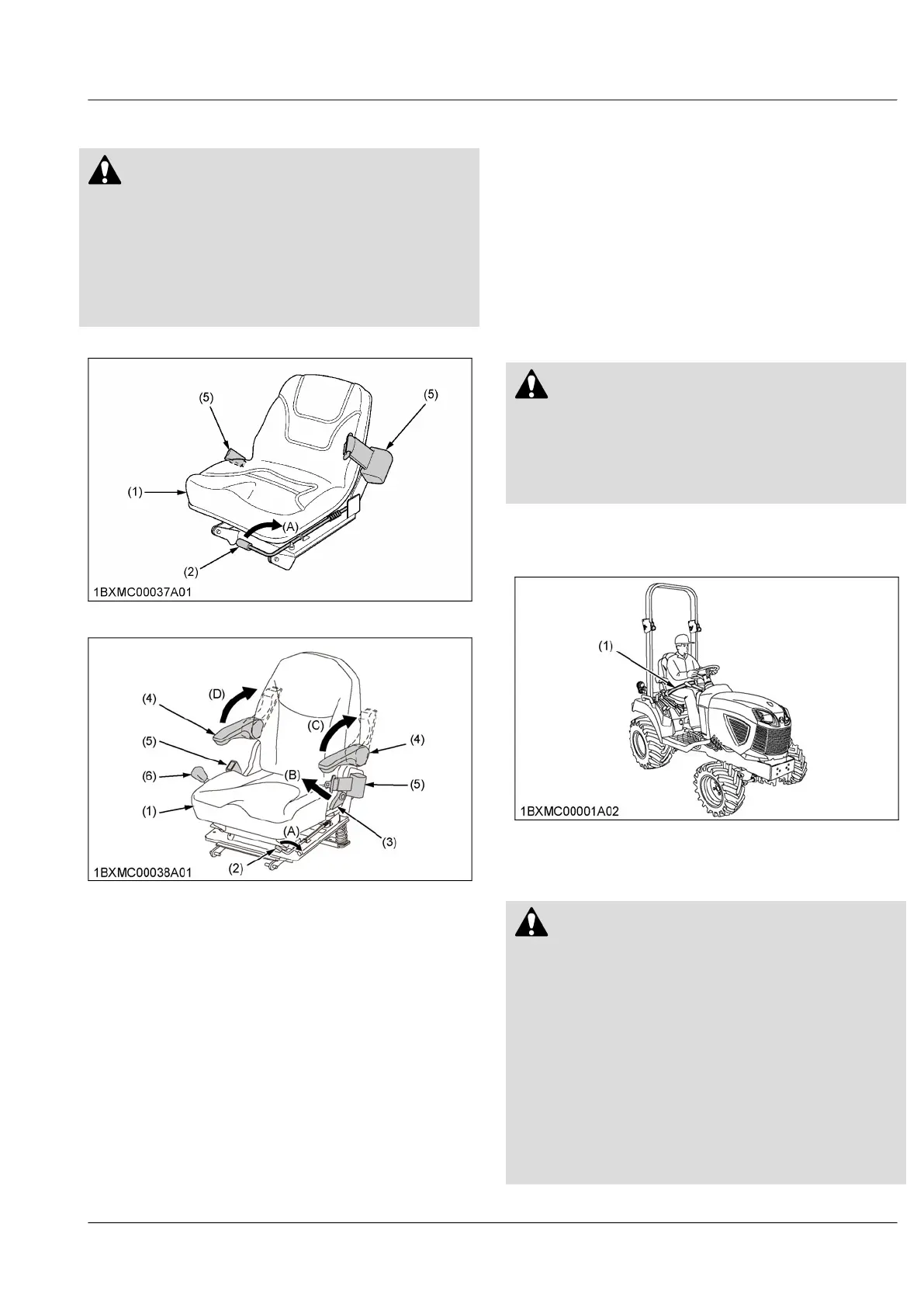

(1) Seat
(2) Position adjust lever
(3) Backrest tilt adjust lever
(4) Arm rest
(5) Seat belt
(6) Hydraulic control lever
(A) Pull up
(B) Pull
(C) 100 deg.
(D) 130 deg.
Travel adjustment
Pull up the position-adjust-lever and slide the seat
backward or forward, as required. The seat will lock in
position when the position-adjust-lever is released.
Tilt adjustment [BX2380 and BX2680]
Pull the backrest-tilt-adjust-lever and tilt the backrest to
the desired position.
Arm rest
Arm rest LH opens to 100 deg..
Arm rest RH opens to 130 deg..
When operating hydraulic control lever, open the arm
rest RH up to 130 deg.. Opening the arm rest RH up to
130 deg. will prevent your elbow from hitting the arm
rest RH.
IMPORTANT :
• After adjusting the operator's seat, be sure to
check that the seat is properly locked.
• Be sure the operator's seat is out of contact
with the top link.
2. Seat belt
WARNING
To avoid serious injury or death:
• Always use the seat belt when the ROPS is
installed.
• Do not use the seat belt if the tractor is not
equipped with ROPS.
Adjust the seat belt for proper fit and connect the seat
to the buckle. The seat belt is auto-locking retractable
type.
(1) Seat belt
3. Brake pedal and parking brake
lock pedal
WARNING
To avoid serious injury or death:
• Do not brake suddenly.
An accident may occur as a result of a heavy
towed load shifting forward or loss of control.
• To avoid skidding and loss of steering control
when driving on icy, wet, or loose surfaces,
make sure that the tractor is correctly ballasted,
operated at reduced speed, and operated with
the front wheel drive engaged if equipped.
• The braking characteristics are different
between 2-wheel drive and 4-wheel drive. Know
the difference between 2-wheel drive and 4-
wheel drive and use them carefully.
