85PERIODIC SERVICE OF THE TRACTOR
BCleaning Transmission Strainer
When changing the transmission fluid, disassemble and
rinse the strainer with nonflammable solvent to completely
clean off filings.
When reassembling be careful not to damage the parts.
A Since the fine filings in the oil can damage the
precision component parts of the hydraulic system, the
end of the suction line is provided with an oil strainer.
BChanging Front Axle Case Oil
1. Park the machine on a firm, flat and level surface.
2. To drain the used oil, remove the right and left drain
plugs and oil gauge at the front axle case and drain
the oil completely into the oil pan.
3. After draining reinstall the drain plugs.
4. Remove the right and left breather plugs.
5. Fill with new oil up to the upper notch on the dipstick.
(See "LUBRICANTS" in "MAINTENANCE OF THE
TRACTOR" section.)
A After ten minutes, check the oil level again; add oil to
prescribed level.
6. After filling, reinstall the oil gauge and breather plugs.

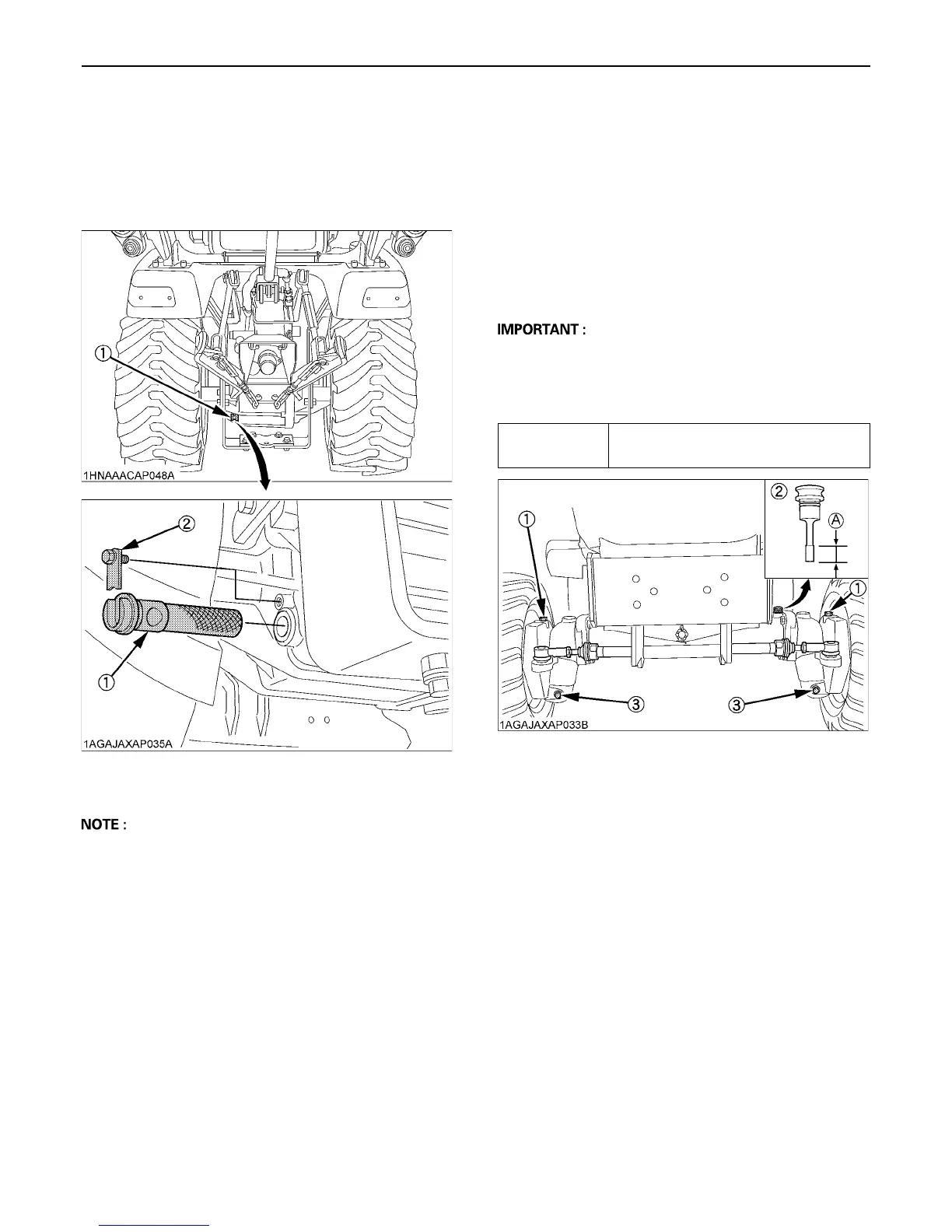

(1) Strainer
(2) Filter plate
Oil capacity 4.7 L
(1) Breather plug
(2) Oil gauge with dipstick
(3) Drain plug
(A) Oil level is acceptable
within this range
To Next Page
