44
THREE-POINT HITCH & DRAWBAR
THREE-POINT HITCH & DRAWBAR

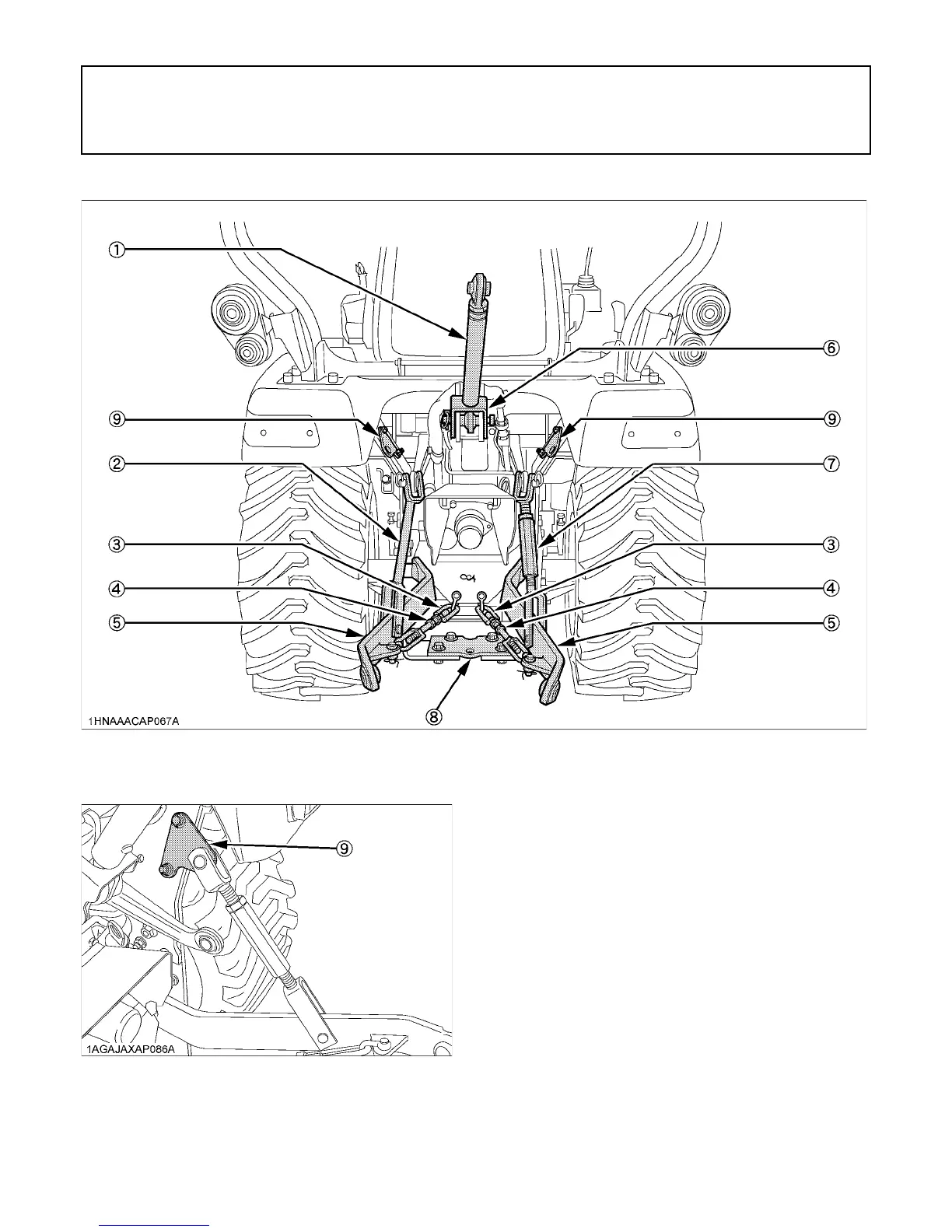

Use holder plate to hold lower link higher while mowing
with mid-mount mower only over uneven terrain.
(1) Top link
(2) Lifting rod (Left)
(3) Check chains
(4) Turnbuckle
(5) Lower link
(6) Top link ho
lder
(7) Lifting rod (Right)
(8) Drawbar
(9) Holder plate
(9) Holder
plate
69
71
