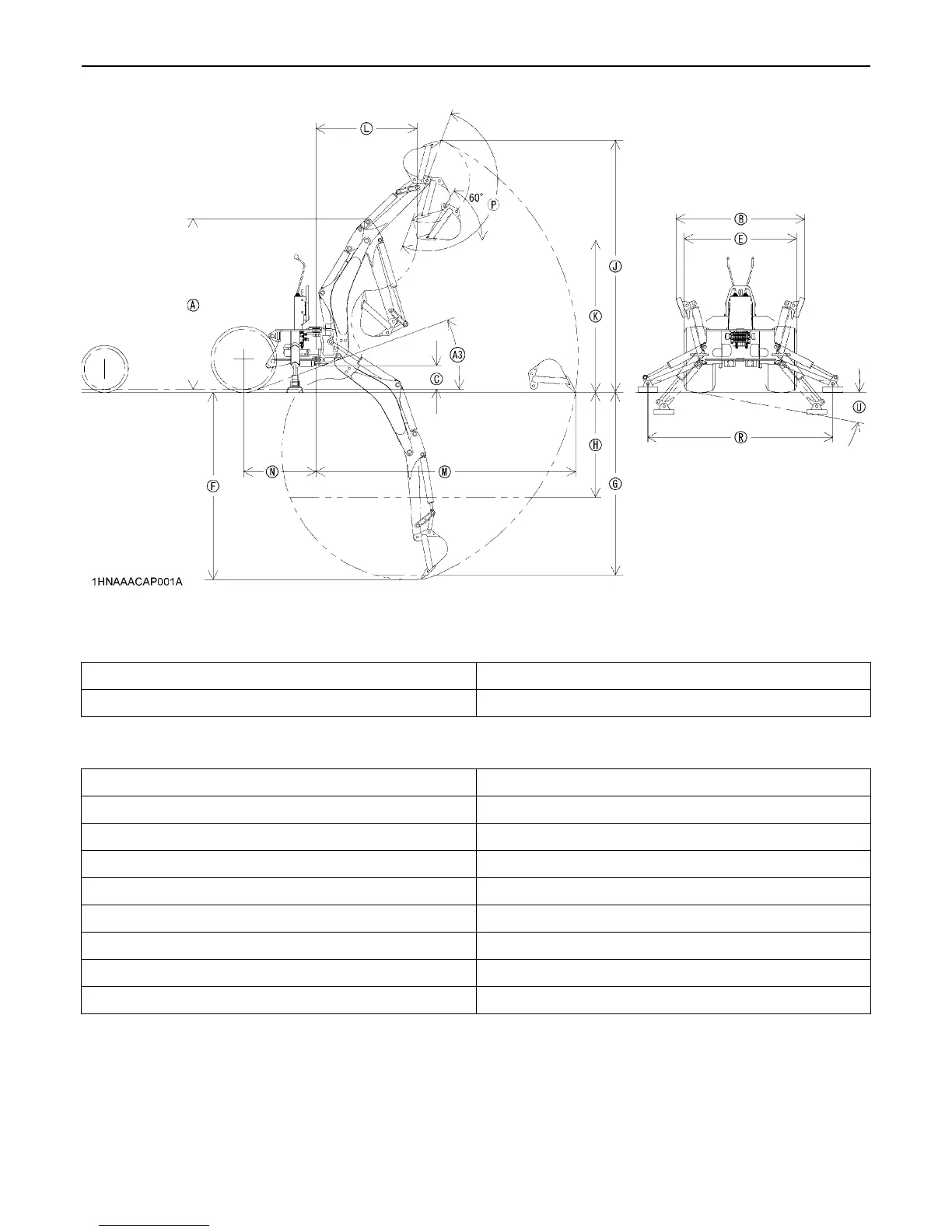

SPECIFICATIONS OF THE BACKHOE
B
Specifications
Digging force (Per SAE J49)
Cycle Time (seconds)
With bucket cylinder
8610 N
With dipperstick cylinder
5209 N
Boom cylinder, extend
4.5
Boom cylinder, retract
3.7
Swing cylinder, from 90 degrees to center
1.5
Dipperstick cylinder, extend
4.1
Dipperstick cylinder, retract
3.4
Bucket cylinder, extend
3.1
Bucket cylinder, retract
2.4
Stabilizer cylinder, max. height to ground
2.9
Stabilizer cylinder, ground to max. height
2.3
34
36
Table of Contents
