Kubota L3200 Assembly Instructions

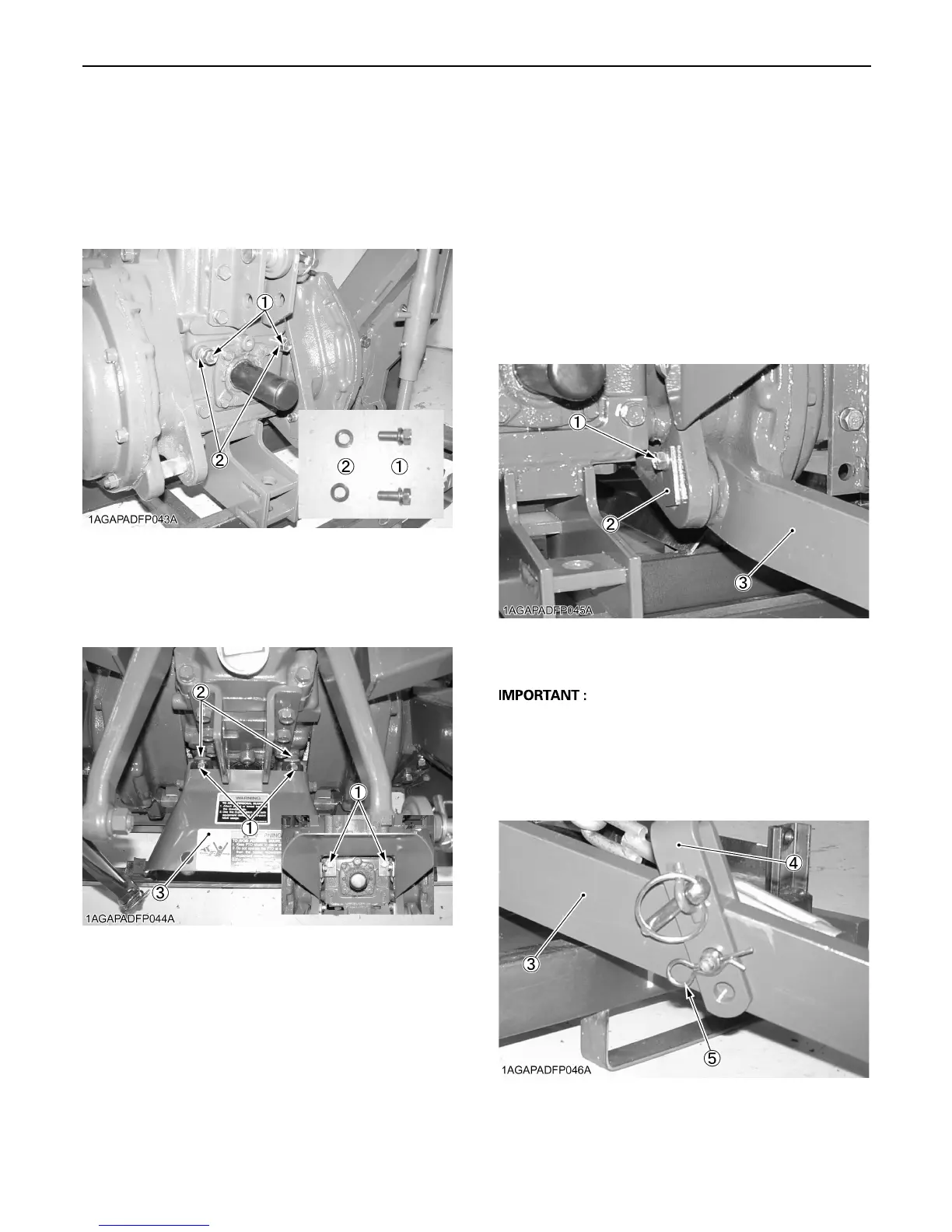

17ASSEMBLY INSTRUCTIONS
BPTO Shaft Cover
C Tools required
Spanner (17 mm).
1. Remove the two bolts (1) and collars (2) from the
transmission case.
2. Install the PTO shaft cover (3) to the transmission
case, using two bolts (1) and the collars (2) which were
removed from transmission case.
BThree Point Linkage
C Tightening torque
C Tools required
Pliers. Socket (14 mm) with ratchet wrench and torque
wrench.
1. Install the lower link assemblies (3) with the lower link
pivot pins (2) and tighten the bolts (1).
A Make sure to tighten the lower link pivot pin mounting
bolts with correct tightening torque to prevent the case
from cracking.
2. Fix the lift rod (4) to the lower link assemblies (3) using
the set pins (5) both sides.
(1) Bolts
(2) Collars
(1) Bolts
(2) Collars
(3) PTO shaft cover
Lower link pivot pin bolt : 48.1 to 55.8 N-m
4.9 to 5.7 kgf-m
35.5 to 41.2 ft-lbs
(1) Bolts
(2) Lower link pivot pins
(3) Lower link assemblies
(3) Lower link assemblies
(4) Lift rod
(5) Set pins

Kubota L3200 Specifications

General

Engine Type	Diesel
Drive	4WD
Hydraulic System	Open center
3-Point Hitch	Category I
Engine Power	31.9 HP
Number of Speeds	8 forward and 4 reverse
PTO Horsepower	25.5 HP
Engine Model	D1703-M
Width	55.1 inches
Height	91.7 inches
