Kubota L3200 Assembly Instructions

33ASSEMBLY INSTRUCTIONS

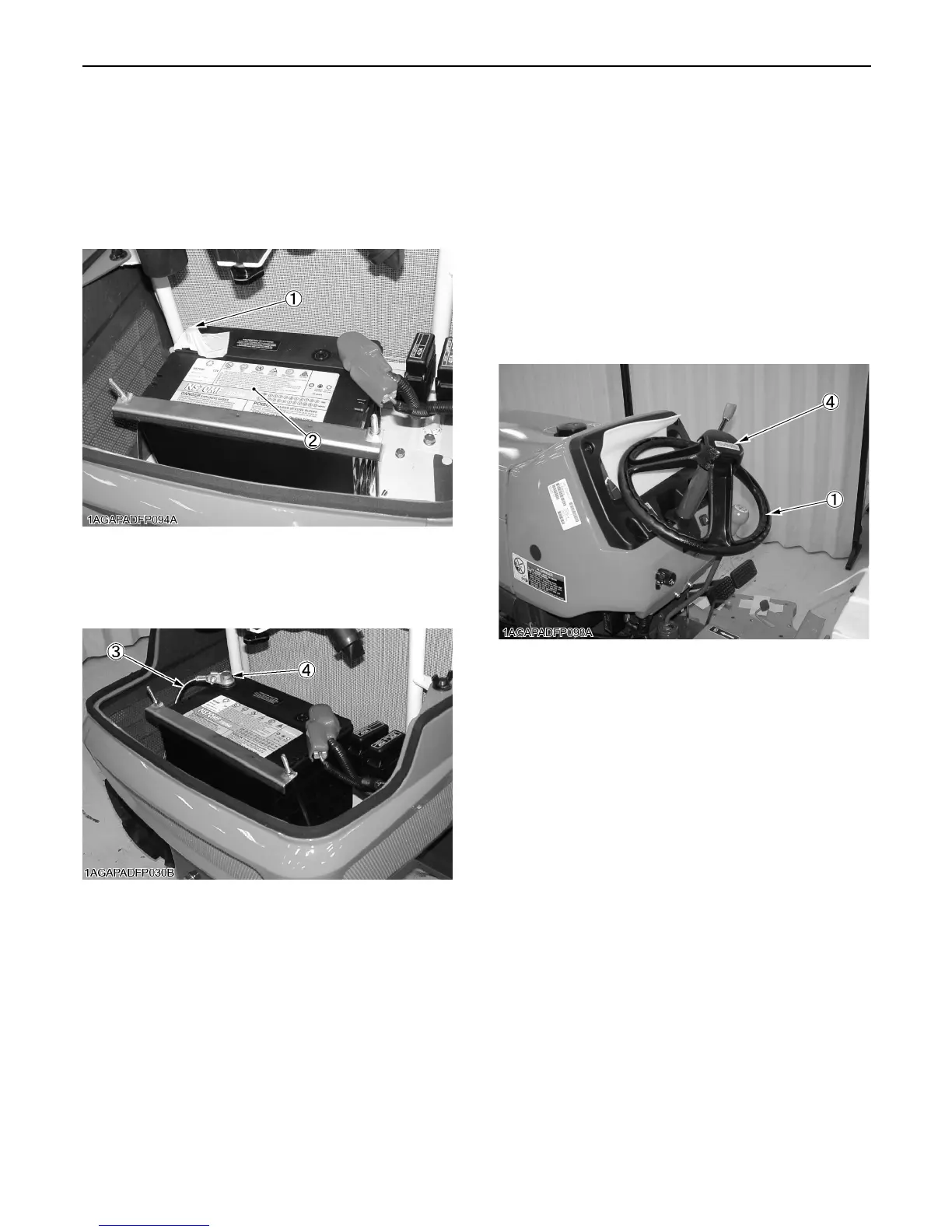

BBattery
C Tools required
Spanner (10 mm) or socket with ratchet wrench.
1. Open the bonnet.
2. Take the adhesion tape (1) of the negative terminal.
3. Connect the negative cord (3) to the negative terminal
(4) and then tighten the bolt.
4. Close the bonnet
BSteering Wheel
C Tightening torque
C Tools required
Nipper, Socket (17 mm), extension bar with torque
wrench.
1. Remove the pad (4) and then remove the steering
wheel (1).
(1) Adhesion tape
(2) Battery
(3) Negative cord
(4) Negative terminal
Steering nut : 48.0 to 55.9 N-m
4.9 to 5.7 kgf-m
33.5 to 41.2 ft-lbs
(1) Steering wheel
(4) Pad

Kubota L3200 Specifications

General

Engine Type	Diesel
Drive	4WD
Hydraulic System	Open center
3-Point Hitch	Category I
Engine Power	31.9 HP
Number of Speeds	8 forward and 4 reverse
PTO Horsepower	25.5 HP
Engine Model	D1703-M
Width	55.1 inches
Height	91.7 inches
