Kubota L3200 Assembly Instructions

23ASSEMBLY INSTRUCTIONS

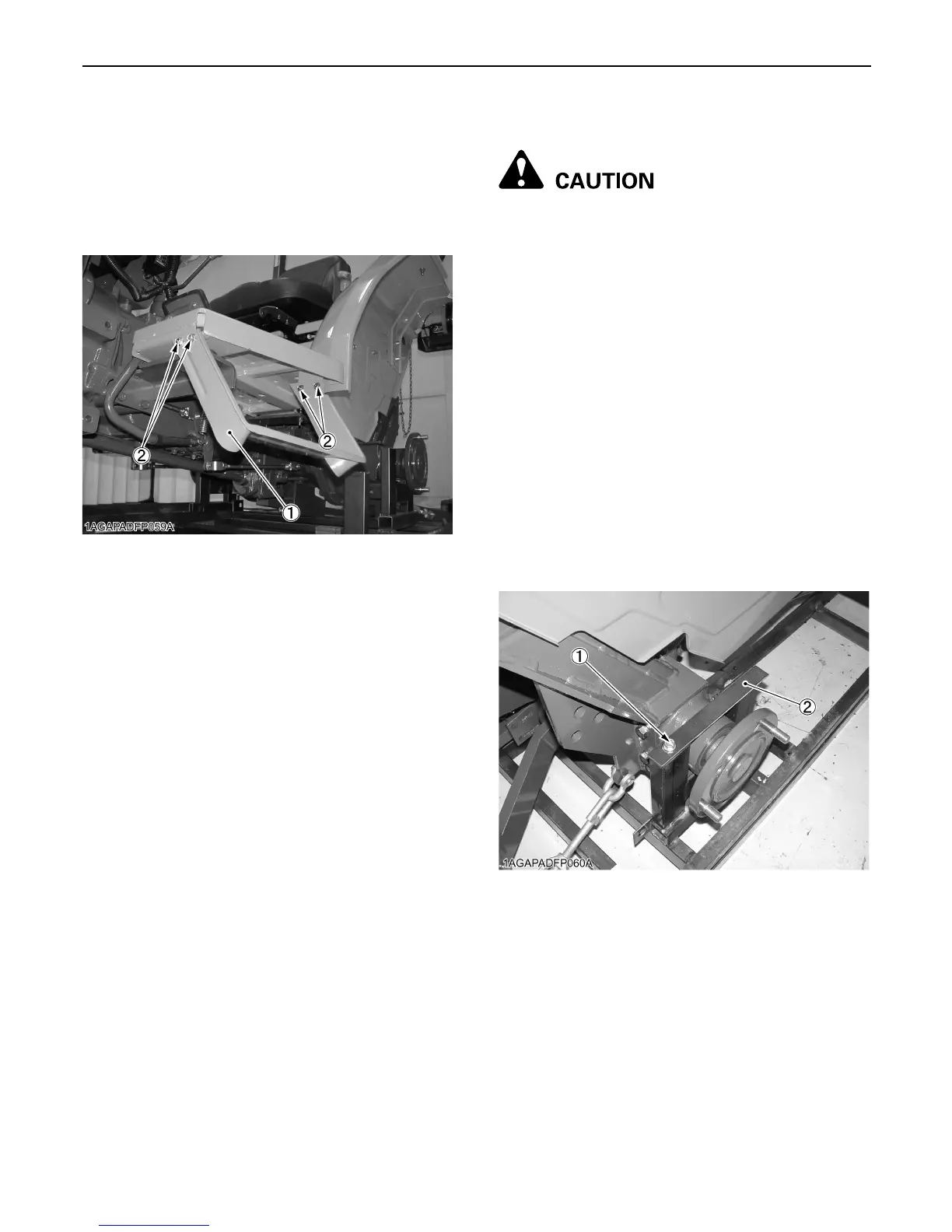

BAuxiliary Step
C Tools required
Socket (12 mm) with ratchet wrench or impact wrench.
1. Prepare the flange bolts (2) from the paper bag.
2. Attach the auxiliary step LH (1).
BFront Axle
To avoid personal injury:
A After attaching the jig bumper to the front axle
frame, lift the jig bumper with belt sling (over 2
tons capacity).
A Hang the belt on the center of the jig bumper to
balance the tractor.
A Use the hoist for over 2 tons (4000 lbs)
capacity.
A Place the safety stands (over 2 tons capacity)
under the rear axle cases after lifting the
tractor.
A Make sure to place the safety stands under the
rear axle cases before starting next jobs.
C Tools required
Spanner (17 mm) Socket (14 mm, 17 mm and 19 mm)
with ratchet wrench or impact wrench and torque wrench,
belt sling, safety stands.
Please prepare the stud bolts (M14 x 1.5) or guides.
1. Removing the bolt (1) and the retainer (2).
2. Cutting the wire of the front axle case both sides.
(1) Auxiliary step LH
(2) Bolts
(1) Bolt
(2) Retainer

Kubota L3200 Specifications

General

Engine Type	Diesel
Drive	4WD
Hydraulic System	Open center
3-Point Hitch	Category I
Engine Power	31.9 HP
Number of Speeds	8 forward and 4 reverse
PTO Horsepower	25.5 HP
Engine Model	D1703-M
Width	55.1 inches
Height	91.7 inches
