OPERATING THE TRACTOR16
3. Align set bolt holes and insert both set bolts. Slightly
tighten the set bolts and secure them with the hair pin
cotters.
To avoid personal injury:
A Make sure that both set bolts are properly
installed and secured with the hair pin cotters.
BTo Raise the ROPS to Upright Position
1. Remove both hair pin cotters and set bolts.
2. Raise ROPS to the upright position.
To avoid personal injury:
A Raise the ROPS slowly and carefully.
3. Align set bolt holes and insert both set bolts. Slightly
tighten the set bolts and secure them with the hair pin
cotters.
To avoid personal injury:
A Make sure that both set bolts are properly
installed as soon as the ROPS is in the upright
position and secured with the hair pin cotters.
BAdjustment of Foldable ROPS
A Adjust the free fall of the ROPS upper frame regularly.
A If you feel less friction in folding the ROPS, remove the
cotter pin (1), tighten the nut (2) until you feel the right
friction in the movement and then replace the cotter
pin.

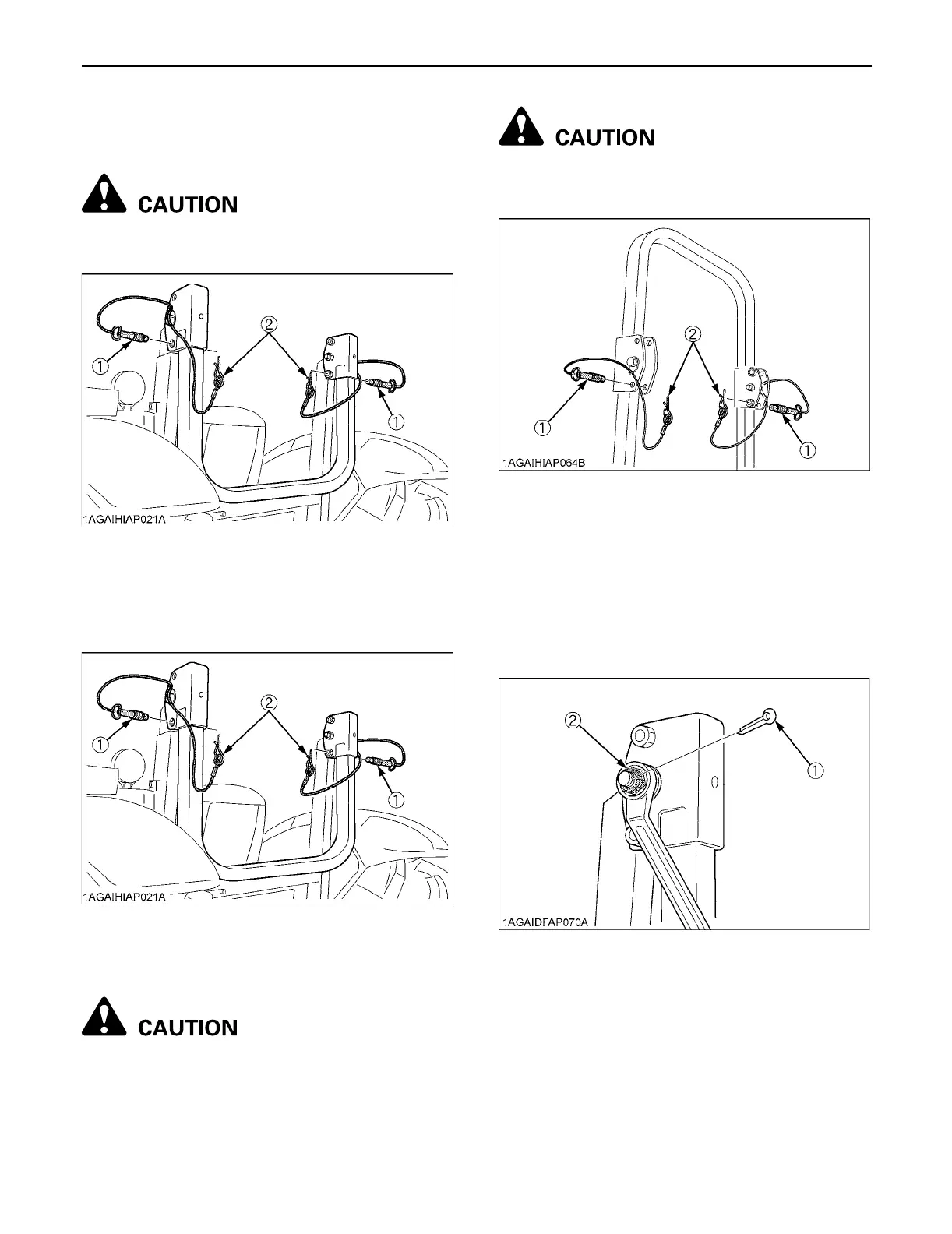

(1) Set bolt
(2) Hair pin cotter
(1) Set bolt
(2) Hair pin cotter
(1) Set bolt
(2) Hair pin cotter
(1) Cotter pin
(2) Nut
