THREE-POINT HITCH & DRAWBAR34
To avoid personal injury:
A Be sure to stop the engine.
A Do not stand between tractor and implement
unless parking brake is applied.
A Before attaching or detaching implement,
locate the tractor and implement on a firm level
surface.
A Whenever an implement or other attachment is
connected to the tractor 3-point hitch, check
full range of operation for interference, binding
or PTO separation.

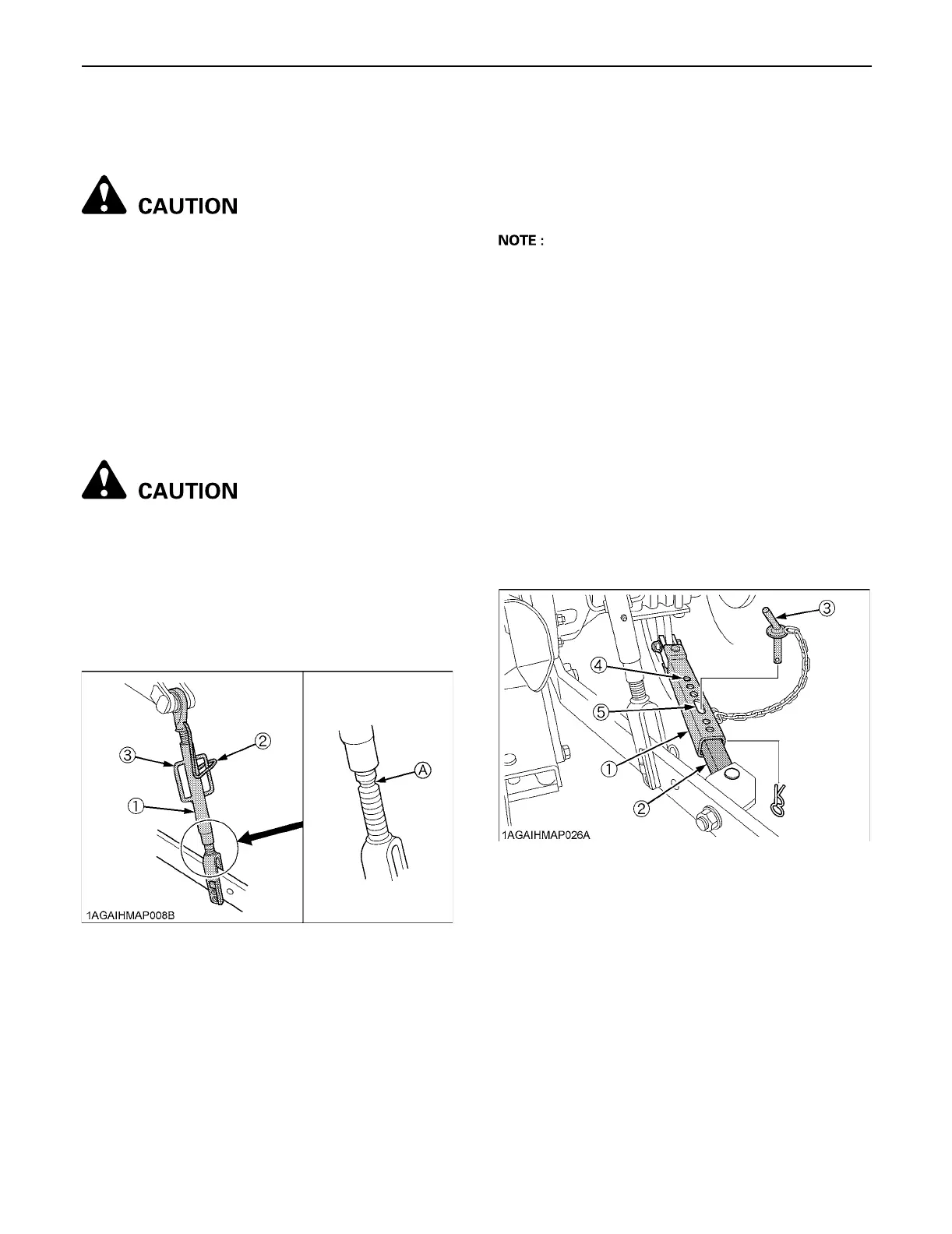

BLifting Rod (Right)
To avoid personal injury:
A Do not extend lifting rod beyond the groove on
the thread rod.
Level a 3-point mounted implement from side to side by
turning the adjusting handle to shorten or lengthen the
adjustable lifting rod with the implement on the ground.
After adjustment, lock adjusting handle with handle
stopper.
BTop Link
1. Adjust the angle of the implement to the desired
position by shortening or lengthening the top link.
2. The proper length of the top link varies according to
the type of implement being used.
A The length of the screw at both ends of the top link
must be the same always.
BTelescopic Stabilizers
Adjust the telescopic stabilizers to control horizontal sway
of the implement. Select the proper set of holes by
referring to the "Hydraulic Control Unit Use Reference
Chart" in "REMOTE HYDRAULIC CONTROL SYSTEM"
in "HYDRAULIC UNIT" section.
After aligning satisfactorily, insert the set-pin through any
one of the five holes on the outer tube that align with one
of the holes on the inner bar, both stabilizers will be
locked.
If the set-pin is inserted through the slot to engage one of
the holes on the inner bar, a limited degree of sway will be
permitted.
2. Attaching and detaching implements
(1) Lifting rod
(2) Stopper
(3) Adjusting handle
(A) "GROOVE"
(1) Outer tube
(2) Inner bar
(3) Set-pin
(4) Hole
(5) Slot
