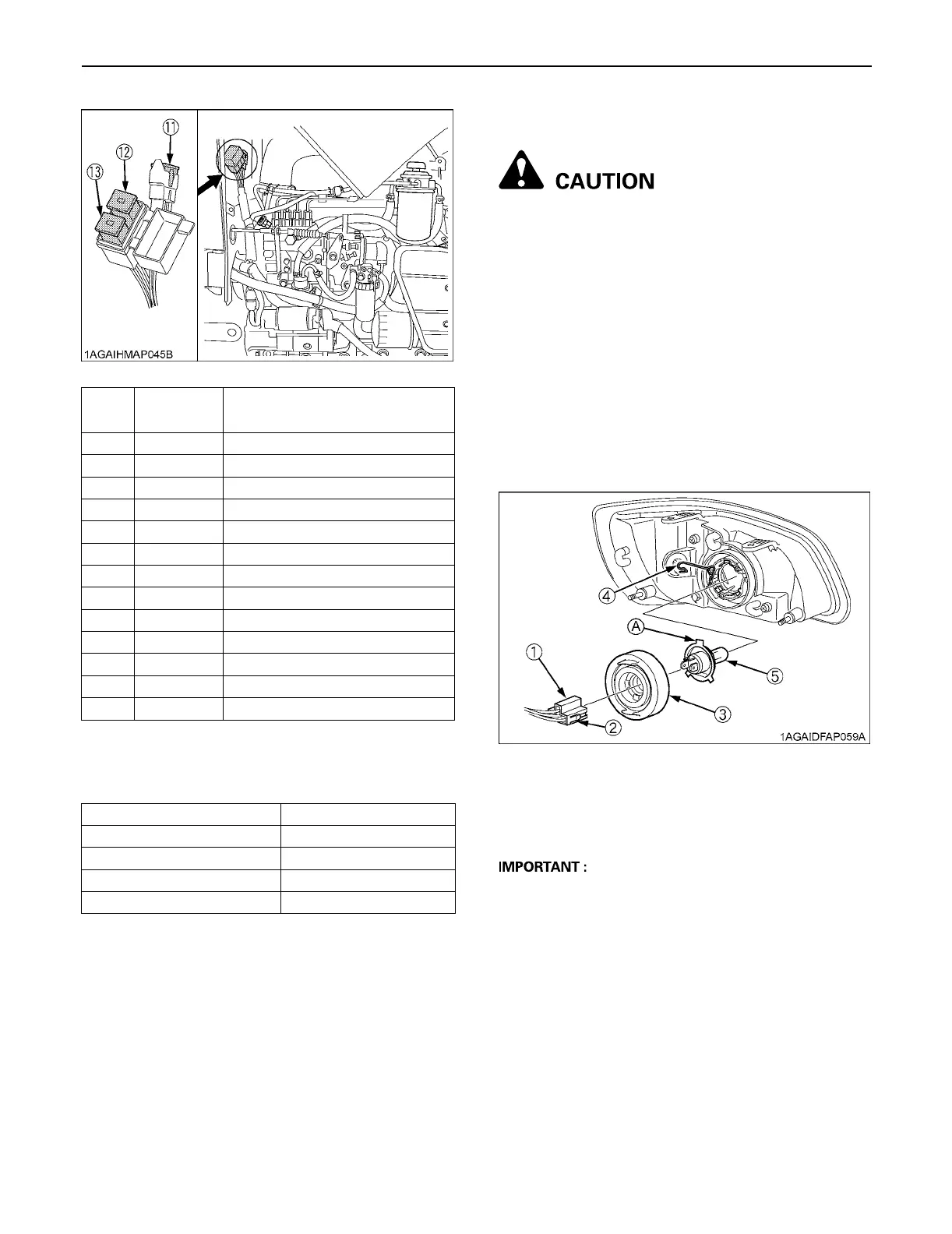

BReplacing Light Bulb
BReplacing Head Lamp
To avoid personal injury:
A Be careful not to drop the bulb, hit anything
against the lamp, apply excess force, and get
the lamp scratched. If broken, glass may cause
injury. Pay more attention to halogen lamps in
particular, which have high pressure inside.
A Before replacing the lamp, be sure to turn off
the light and wait until the bulb cools down,
otherwise, you may get burned.
1. While pushing the right and left lock buttons, pull and
remove the electrical connector.
2. Remove the rubber boot.
3. Remove the clamping fixture and take out the bulb.
4. Replace with a new bulb and reinstall the head lamp
assembly in the reverse order.
A Be sure to use a new bulb of the specified wattage.
A Never touch the bulb surface (glass) with bare hands.
Fingerprints, for example, may break the bulb.
FUSE
No.
CAPACITY
(A)
Protected circuit
(1) 15 Work Light R
(2) 15 Work Light L
(3) 5 Alternator, Engine, Heater
(4) 5 Meter Panel, OPC
(5) 10 Turn signal
(6) 15 Auxiliary power
(7) 5 Meter (Back up)
(8) 15 Head light, Tail lamp
(9) 15 Flasher (Hazard)
(10) 5 Starter Relay
(11) 50 Charge, Glow Plug
(12) 30 Fuel Cut Solenoid
(13) 40 Key switch, Head Light, Hazard
Light Capacity
Head light 12 V, 55 / 60 W (H4)
Hazard lights 12 V, 23 W
Turn signal 12 V, 21 W
Tail light 12 V, 21 / 5 W
(1) Electrical connector
(2) Lock buttons
(3) Rubber boot
(4) Clamping fixture
(5) Bulb
(A)"Base's wider projection to face
upward"
