INSTRUMENT PANEL AND CONTROLS
INSTRUMENT PANEL, SWITCHES AND HAND CONTROLS

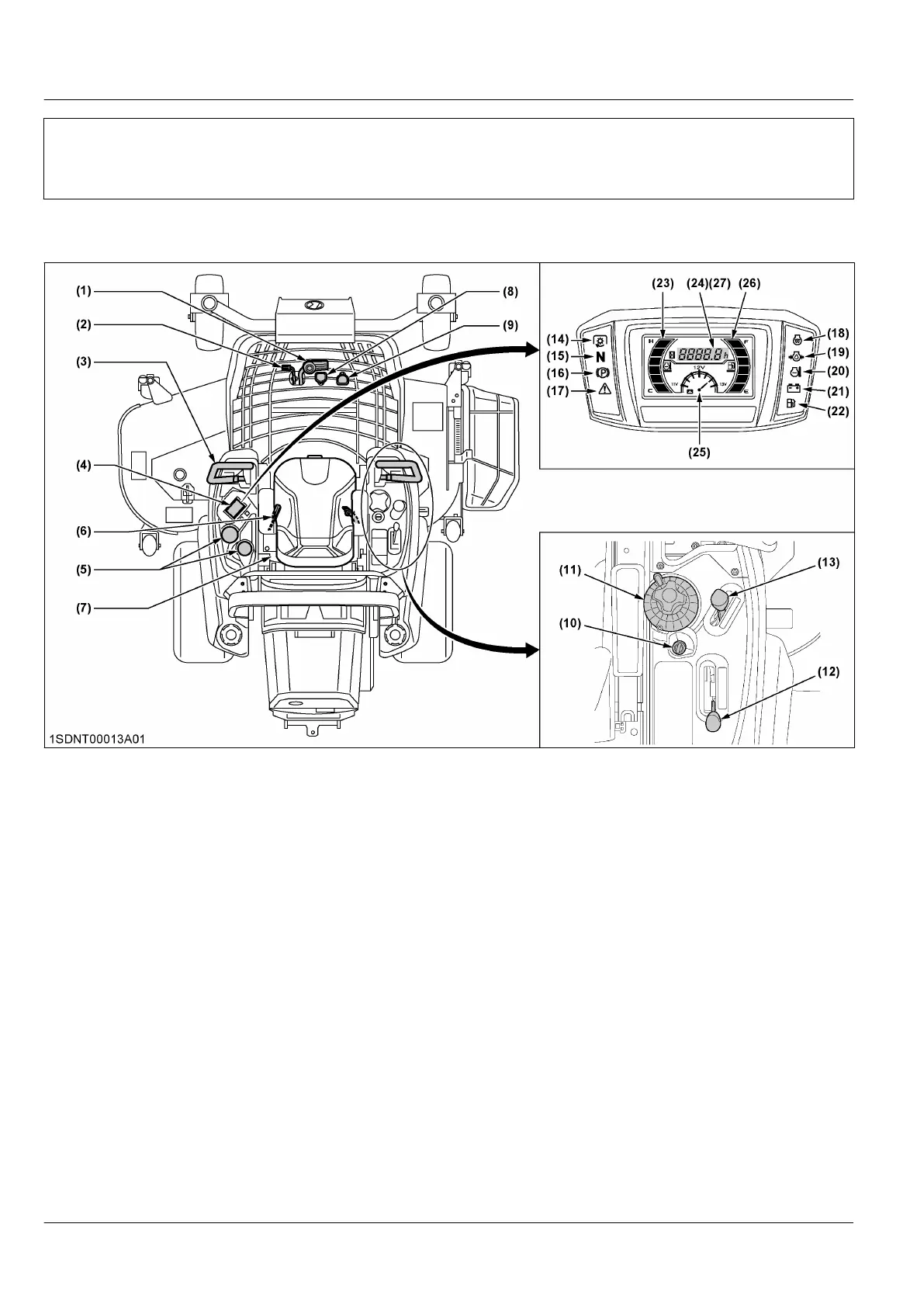

Illustrated contents
(1) Parking brake pedal…27, 38
(2) Parking brake lock pedal…27, 38
(3) Motion control lever…27, 39
(4) LCD monitor…30
(5) Cup holder…-
(6) Seat belt…37
(7) Operator's seat…37
(8) Hydraulic lift control pedal (DOWN)…38, 44
(9) Hydraulic lift control pedal (UP)…38, 44
(10) Key switch…29
(11) Cutting height control dial…44
(12) PTO lever…27, 47
(13) Throttle lever…27, 38
(14) PTO clutch indicator…27
(15) Neutral indicator (Motion control lever)…27
(16) Parking brake warning indicator…27
(17) Master system warning indicator…29
(18) Glow plug indicator…29
(19) Engine oil pressure warning indicator…29
(20) Engine overheat warning indicator…29
(21) Electrical charge warning indicator…29
(22) Fuel level warning lamp…29, 32
(23) Coolant temperature gauge…31
(24) Hour meter…31
(25) Battery voltage meter…31
(26) Fuel gauge…30
(27) Service code display…31
NOTE :
• Items (17) to (22) correspond to the Easy Checker
™
.
INSTRUMENT PANEL AND CONTROLS
INSTRUMENT PANEL, SWITCHES AND HAND CONTROLS
