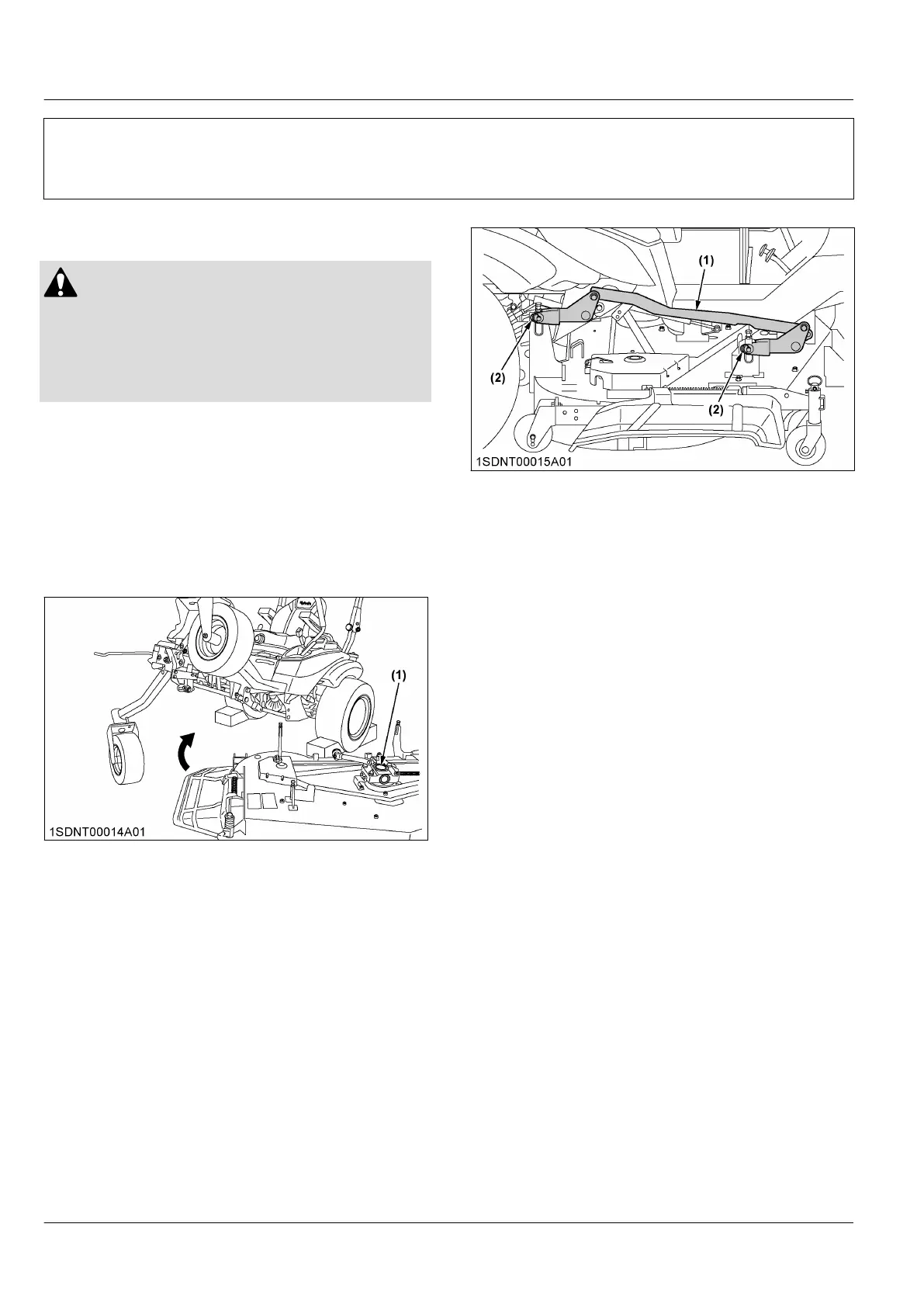

MOWER MOUNTING
MOUNTING THE MOWER DECK
WARNING
To avoid serious injury or death:
• Park the machine on a firm and level surface.
• Apply the parking brake.
• Chock the rear tires.
• Stop the engine and remove the key.
1. Before mounting the mower deck, raise the lift links
to the “FULL UP” position.
2. Adjust the cutting height control dial to 1 in.
position.
3. Tilt up the machine with the maintenance lift
system. (See TILTING UP THE MACHINE on page
53.)
4. Place the mower deck at the left side of the
machine.
(1) Gear box
5. Slide the mower deck under the machine, and
make sure that the mower gear box is placed
properly in the center of the machine, lower the axle
from the “TILT-UP” position to the “NORMAL”
position.
6. Place 50 mm (2 in.) wood blocks under each side of
the mower deck.
7. Depress the hydraulic lift control pedal (DOWN) and
pull down the lift links.
8. Attach the lift links to the mower deck with attaching
hardware.
(1) Lift link
(2) Clevis pin, plain washer, snap ring
MOWER MOUNTING MOUNTING THE MOWER DECK
