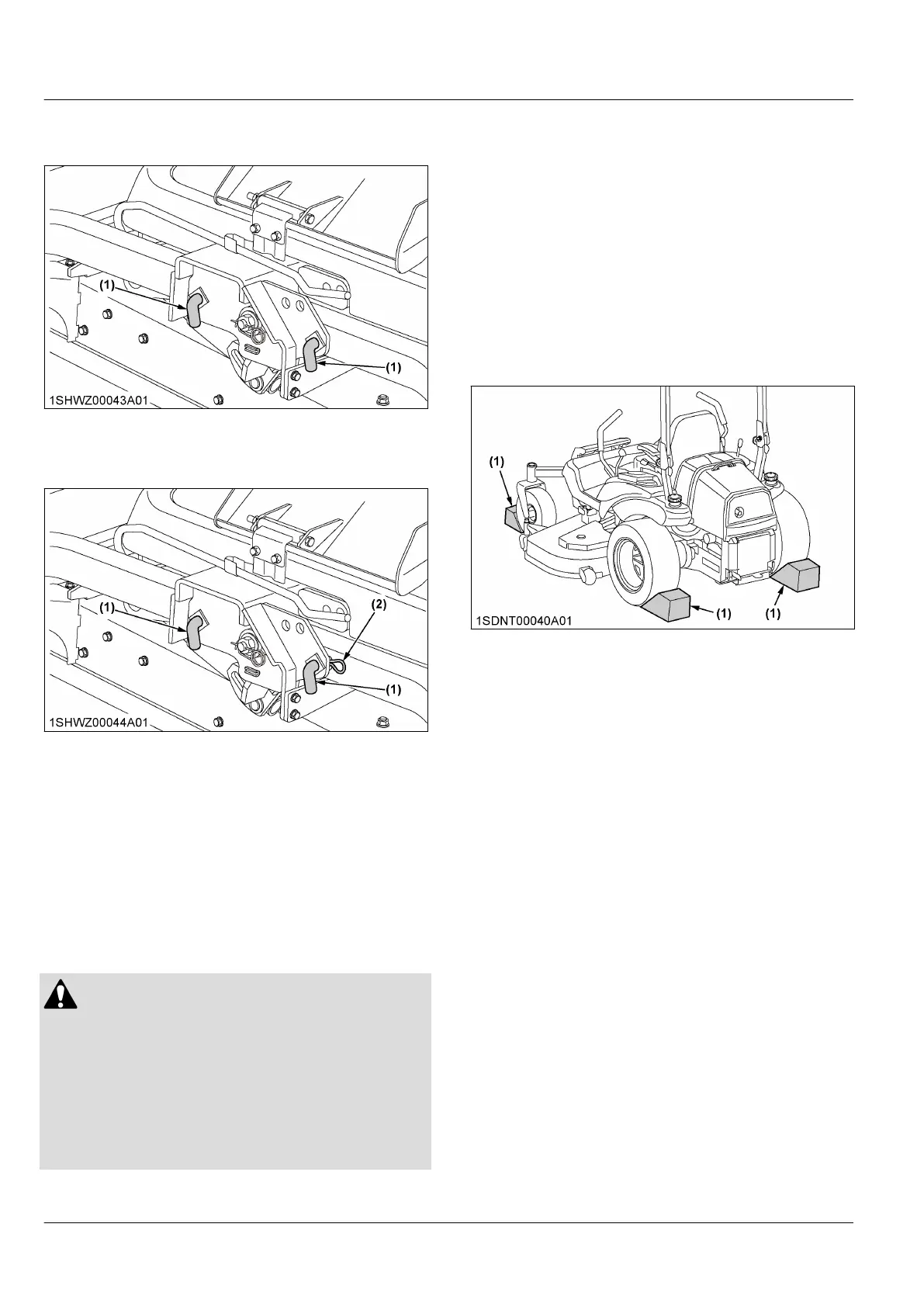

3. Insert L-pins into the holes on the front axle as
shown below.
(1) L-pin
4. Install the snap pins between the axle mount frame
and the front axle.
(1) L-pin
(2) Snap pin
2. Oscillating the front axle
The oscillating front axle oscillates with the terrain and
provides a smoother ride than the rigid front axle.
1. For oscillating the front axle, reverse the above
procedures.
PARKING THE MACHINE
WARNING
To avoid serious injury or death:
Before leaving the operator's position:
• Apply the parking brake.
• Lower all implements to the ground.
• Shut off the engine.
• Remove the key.
• Place the motion control levers in the
“NEUTRAL LOCK” position.
To lock:
1. Depress the parking brake pedal firmly with your
right foot, and the parking brake lock pedal
simultaneously with your left foot.
2. Then release the parking brake pedal while holding
the parking brake lock pedal down.
To unlock:
Depress the parking brake pedal and release it slowly
with your right foot without pressing the parking brake
lock pedal.
If necessary to park on an incline, be sure to chock the
wheels on the downhill side to prevent accidental rolling
of the machine.
(1) Chock
OPERATING THE MACHINE USING THE FRONT AXLE
