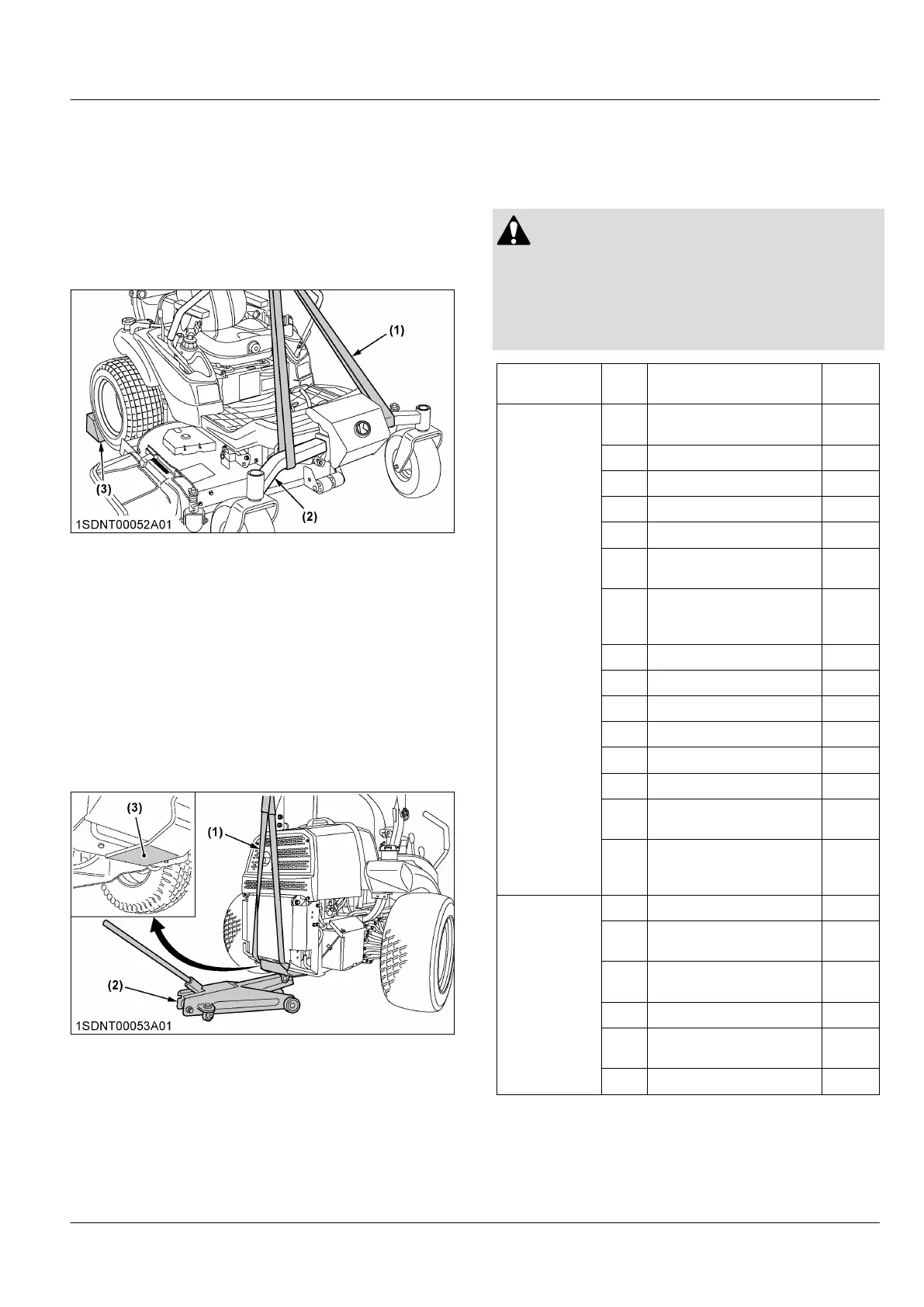

1. Front side:
1. Lift the front axle with nylon slings. Or jack up the
front axle.
Never lift up the mower deck.
IMPORTANT :
• When you use nylon slings or a jack, make
sure to block rear wheels with chocks.
(1) Nylon sling
(2) Front axle
(3) Chock
2. Rear side:
1. Lift the rear frame with a nylon sling. Or jack up the
bottom plate.
Never lift up the engine oil pan or battery support.
IMPORTANT :
• When you use a nylon sling or a jack, make
sure to block front wheels with chocks.
(1) Nylon sling
(2) Jack
(3) Bottom plate
DAILY CHECK
To prevent trouble from occurring, it is important to
know the condition of the machine. Check it before
starting.
WARNING
To avoid serious injury or death:
• Be sure to check and service the machine on a
level surface with the engine shut off, the key
removed and the parking brake securely set or
the rear wheels chocked.
No. Check item
Ref.
page
Walking around
the machine
1
Tire pressure, wear and
damage
50,
61
2 Oil and water leak －
3 Fuel level 59
4 Engine oil level 59
5 Transmission fluid level 60
6
Coolant level in the radiator
and the recovery tank
60
7
Damage of machine body,
tightness of all bolts and
nuts
－
8 Machine body cleaning －
9 Radiator screen 60
10 Hood screen 60
11 Brake play 71
12 Oiling 69
13 Air cleaner primary element 69
14
Clean around the mower
belt.
－
15
Clean the hot surface.
For example, exhaust mani-
fold or muffler.
－
Mower 1 Oil leak 67
2
Make sure blade bolts are
tight.
84
3
Belt and blades wear or
damage
84
4 Check all hardware. －
5
Make sure all pins are prop-
erly in place.
24
6 Mower deck cleaning 84
(Continued)
