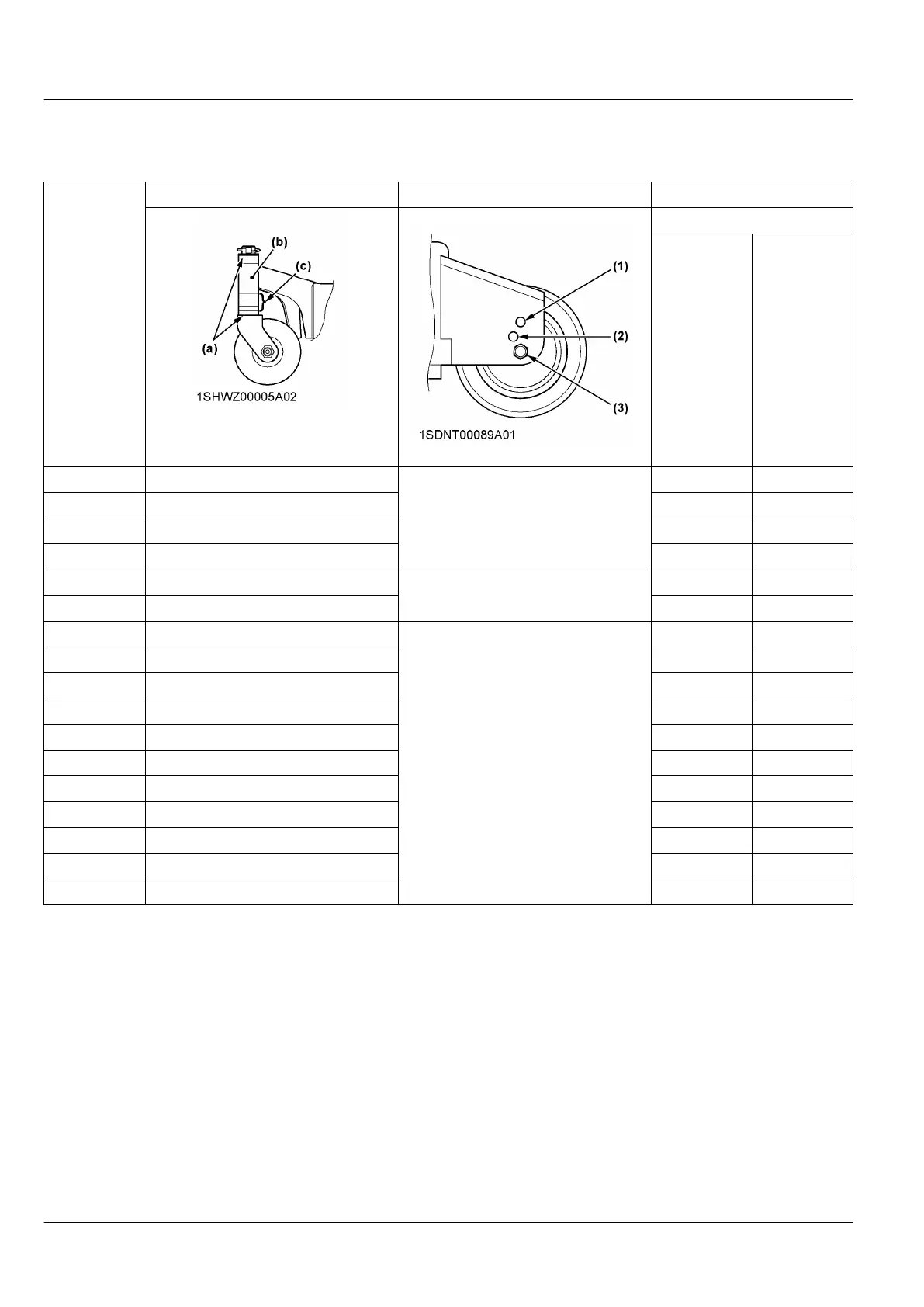

1. Cutting height reference chart
• Set position for recommended ground clearance 19 mm (0.75 in.).
Cutting height
inch (mm)
The number of collars under the boss Position of bolts Ground clearance mm (Ref.)
(a) Plain washer
(b) Boss
(c) Collar
Rear anti-scalp roller
Pin shift type
Bolt shift type
1.00" (25) 0
1
6 6
1.25" (32) 0 13 12
1.50" (38) 0 19 19
1.75" (44) 1 13 25
2.00" (50) 1
2
19 19
2.25" (58) 2 13 25
2.50" (64) 2
3
19 19
2.75" (70) 3 13 25
3.00" (76) 3 19 (31)
*1
3.25" (83) 4 13 (38)
*2
3.50" (89) 4 19
*3
(44)
*2
3.75" (95) 4 13
*2
(51)
*2
4.00" (102) 4 19
*2
(57)
*2
4.25" (108) 4 13
*2
(63)
*2
4.50" (114) 4 19
*2
(70)
*2
4.75" (121) 4 25
*2
(76)
*2
5.00" (127) 4 31
*2
(83)
*2
*1 For cutting heights above 3.0". The anti-scalp rollers will still be effective against scalping.
*2 Use it if necessary.
*3 For cutting heights above 3.5". The anti-scalp rollers will still be effective against scalping.
OPERATING THE MOWER ADJUSTING THE CUTTING HEIGHT
46
ZD1211,ZD1221
