4-M7
ZD18(F) · ZD21(F) · ZD28(F
), WSM
HYDRAULIC SYSTEM
4.
LIFT CYLINDER
W1014031

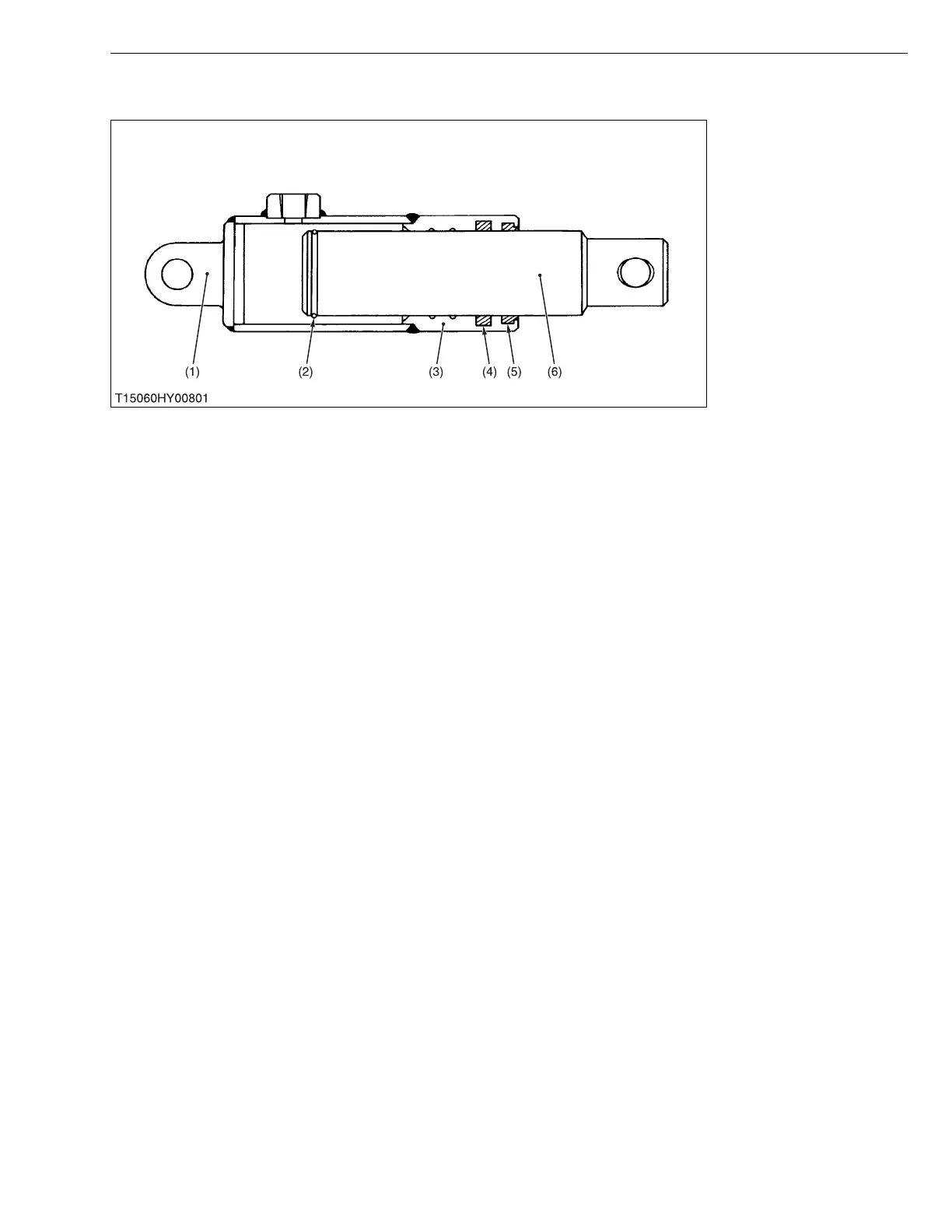

The lift cylinder consists of the tube end (1), cylin
der tube
(3), piston rod
(6) and other pa
rts as shown in the figur
e
above.
This cylinder is single acting type.
(1)
Tube End
(2)
Snap Ring
(3)
Cylinder Tube
(4)
Packing
(5)
Scraper
(6)
Piston Rod
