[7] CHECK POINTS OF EVERY 150 HOURS
Changing Mower Gear Box Oil
1. See page G-25.
W1036280
[8] CHECK POINTS OF EVERY 200 HOURS
Adjusting Front Axle Pivot
1. See page G-18.
W1064227
Checking Radiator Hose and Clamp
NOTE
• Check to see if the radiator hoses are properly fixed every
200 hours of operation or 6 months, whichever comes first.
1. If clamp bands (2) are loose or water leaks, tighten clamp band
(2) securely.
2. Replace radiator hoses (1) and tighten clamp bands (2) securely,
if radiator hoses (1) are swollen, hardened or cracked.
Replace radiator hoses (1) and clamp bands (2) every 2 years or
earlier if checked and found that hoses are swollen, hardened or
cracked.
NOTE
• Take the following actions in the event the coolant
temperature be nearly or more than the boiling point, what is
called “Overheating”.
• Park the machine in a safe place and keep the engine
unloaded idling.
• Don’t stop the engine suddenly, but stop it after about 5
minutes of unloaded idling
• Keep yourself well away from the machine for further 10
minutes or while the steam is blown out.
• Checking that there gets no danger such as burning, get rid
of the causes of overheating and then start the engine again.
W1036392
Changing Engine Oil Filter Cartridge
1. See page G-17.
W1061492
Replacing Transmission Oil Filter Cartridge
1. See page G-17.
W1061793
Checking Hydraulic Hose
CAUTION
To avoid personal injury:
• Be sure to stop the engine and remove the key before
checking and replacing hydraulic hose.
• Allow transmission case to cool down sufficiently; oil can be
hot and may cause burns.
1. Check to see the hose is tight and not damaged.
2. If the worn or damaged of the hose is found, replace it..
W1036641

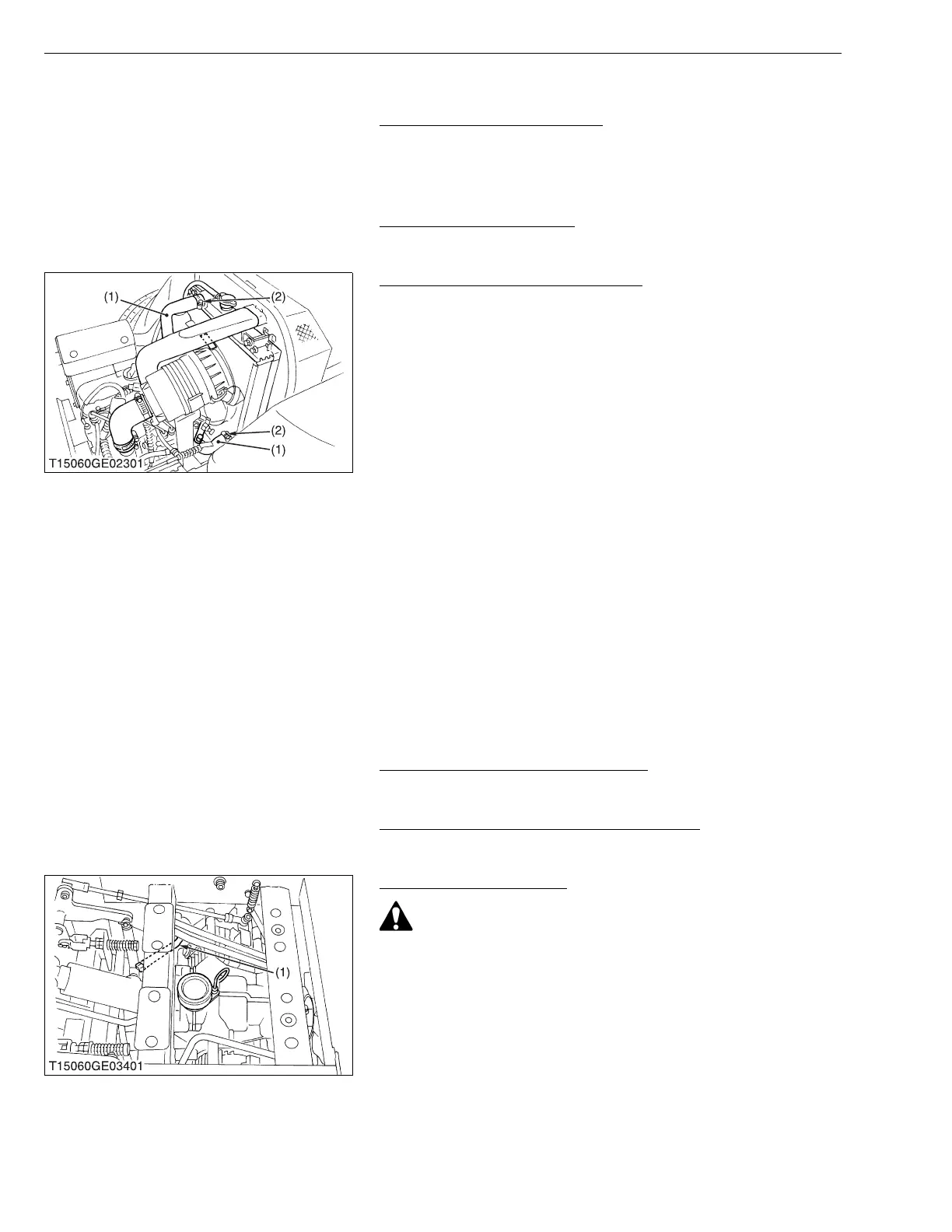

(1) Radiator Hose (2) Clamp Band
(1) Mower Lift Cylinder Hose
