G-36
ZD25F, WSM
G GENERAL
[12] OTHERS

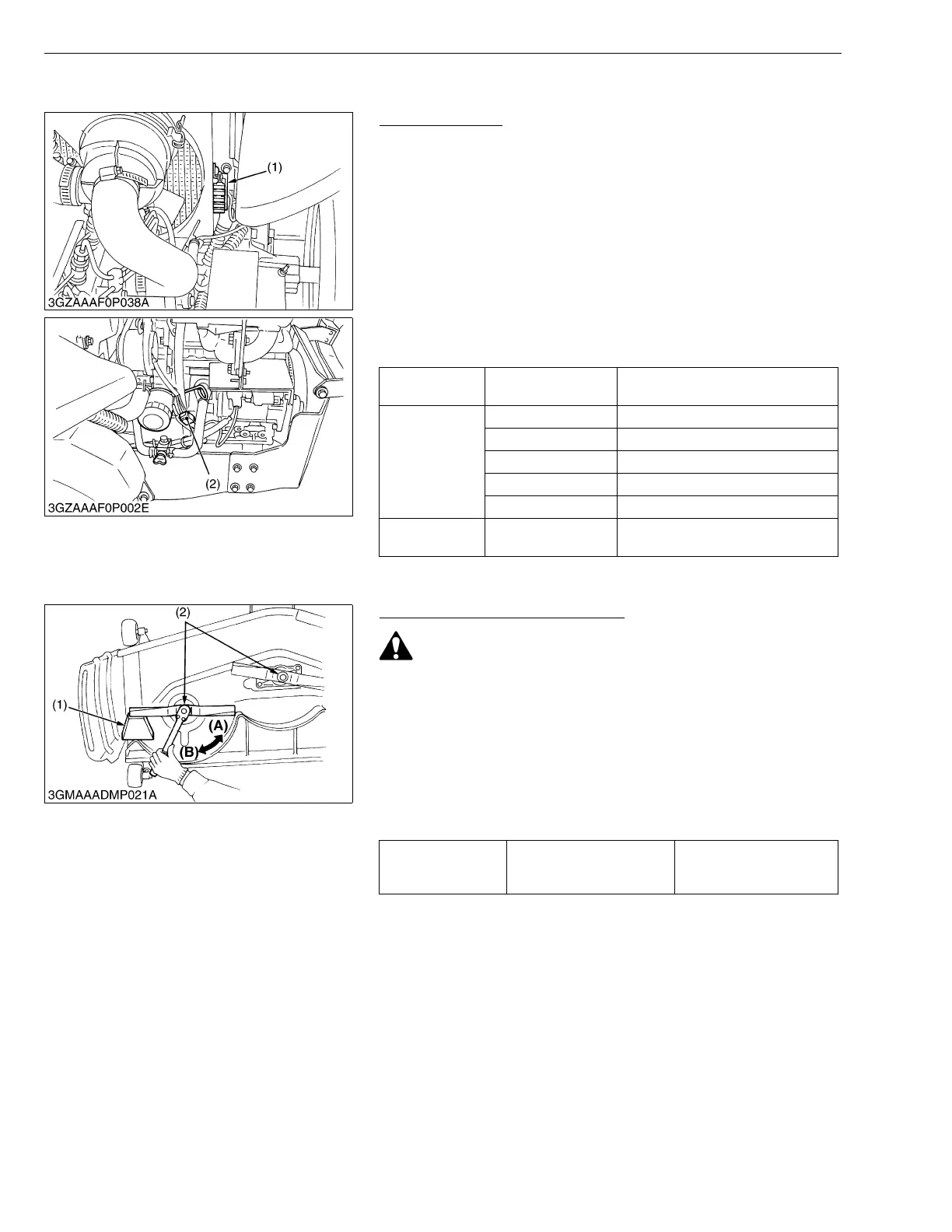

Replacing Fuses
1. The electrical system is protected from potential damage by
fuses.
A blown fuse indicates that there is an overload or short
somewhere in the electrical system.
2. If any of the fuses should blow, replace with a new one of the
same capacity.
IMPORTANT
• Before replacing a blown fuse, determine why the fuse blew
and make any necessary repairs. Failure to follow this
procedure may result in serious damage to the electrical
system.
 Protected Circuit
W1038470
Retightening Mower Blade Screw
CAUTION
• To avoid injury, always handle the mower blade with care.
1. Tilt up the mower and turn it over to expose the mower blades.
2. Wedge a wooden block (1) securely between the mower blade
and mower deck.
3. Retighten the mower blade screw to the specified torque.
4. If the mower blade screw (2) is worn or broken, replace it.
NOTE
• The screw of the red-painted mower blade is of inverse
helical type.
W1022525
FUSE NO.
(ID LABEL)
CAPACITY
(A)
Protected circuit
1
20A Engine stop
15A Charge system
15A Aux. outlet
15A Main system
10A Control system
2 Slow blow fuse 40 A
Check circuit against wrong battery
connection
(1) Fuse (2) Slow Blow Fuse
Tightening torque Mower blade screw
98.0 to 117.6 N·m
10.0 to 12.0 kgf·m
72.0 to 86.8 ft-lbs
(1) Wooden Block
(2) Mower Blade Screw
(A) Loosen
(B) Tighten
