G-44
ZD25F, WSM
G GENERAL

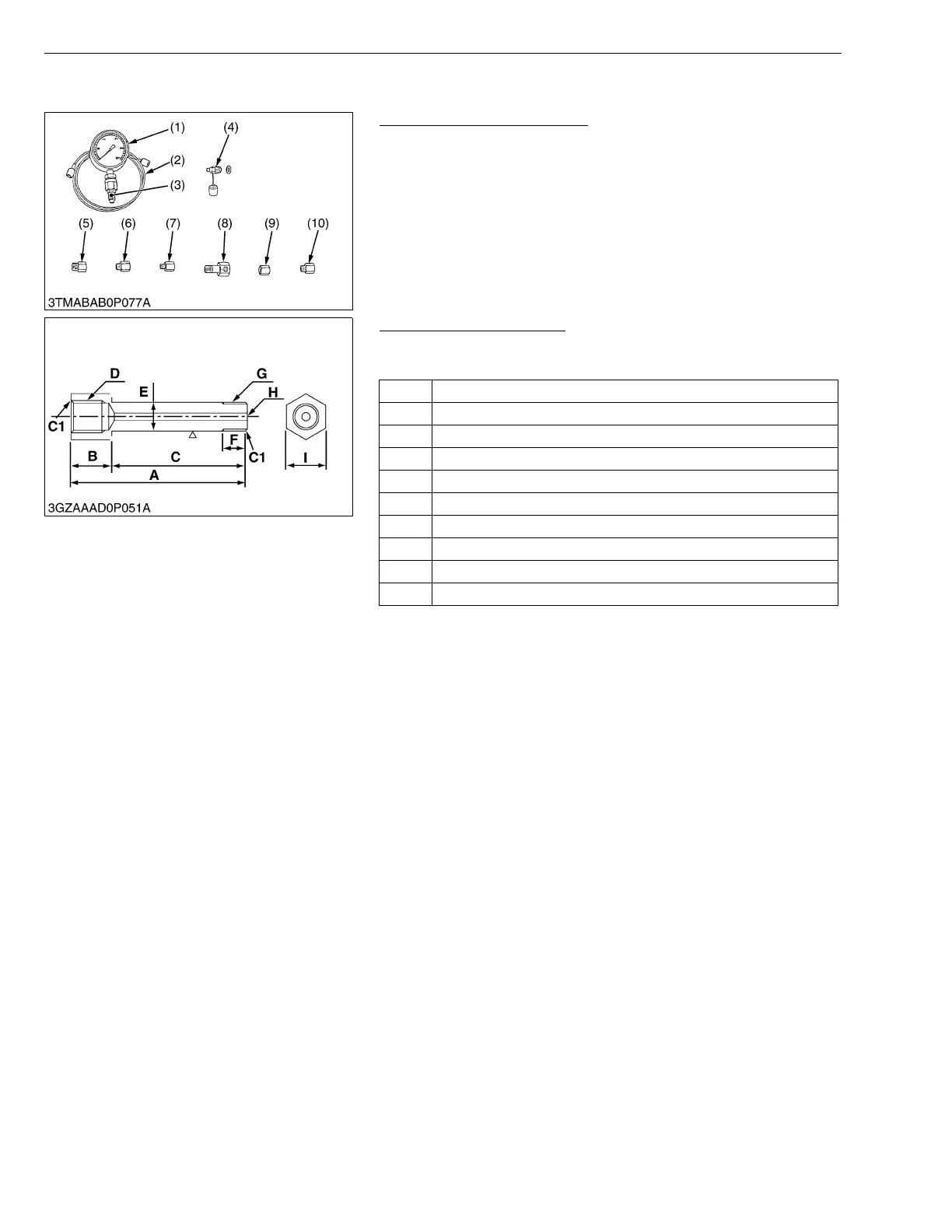

[2] SPECIAL TOOLS FOR MACHINE
Relief Valve Pressure Tester
Code No: 07916-50045
Application: This allows easy measurement of relief set pressure.
W1051907
HST Relief Valve Adaptor
Application: This adaptor is used to measure the HST relief valve
pressure.
W1040355
(1) Gauge (07916-50322)
(2) Cable (07916-50331)
(3) Threaded Joint (07916-50401)
(4) Threaded Joint (07916-50341)
(5) Adaptor B (M18 × P1.5)
(07916-50361)
(6) Adaptor C (PS3/8) (07916-50371)
(7) Adaptor D (PT1/8) (07916-50381)
(8) Adaptor E (PS3/8) (07916-50392)
(9) Adaptor F (PF1/2) (07916-62601)
(10) Adaptor 58 (PT1/4) (07916-52391)
A 80 mm (3.15 in.)
B 20 mm (0.79 in.)
C 60 mm (2.36 in.)
D G 1/4 × 15 mm (0.59 in.)
E 12 mm (0.47 in.)
F 13 mm (0.51 in.)
GG 1/4
H 3 mm dia. (0.118 in. dia.)
I 19 mm (0.75 in.)
C1 Chamfer 1.0 mm (0.039 in.)
To Next Page
