10. A.C. GENERATOR/STARTER CLUTCH
10-6
GRAND DINK 250

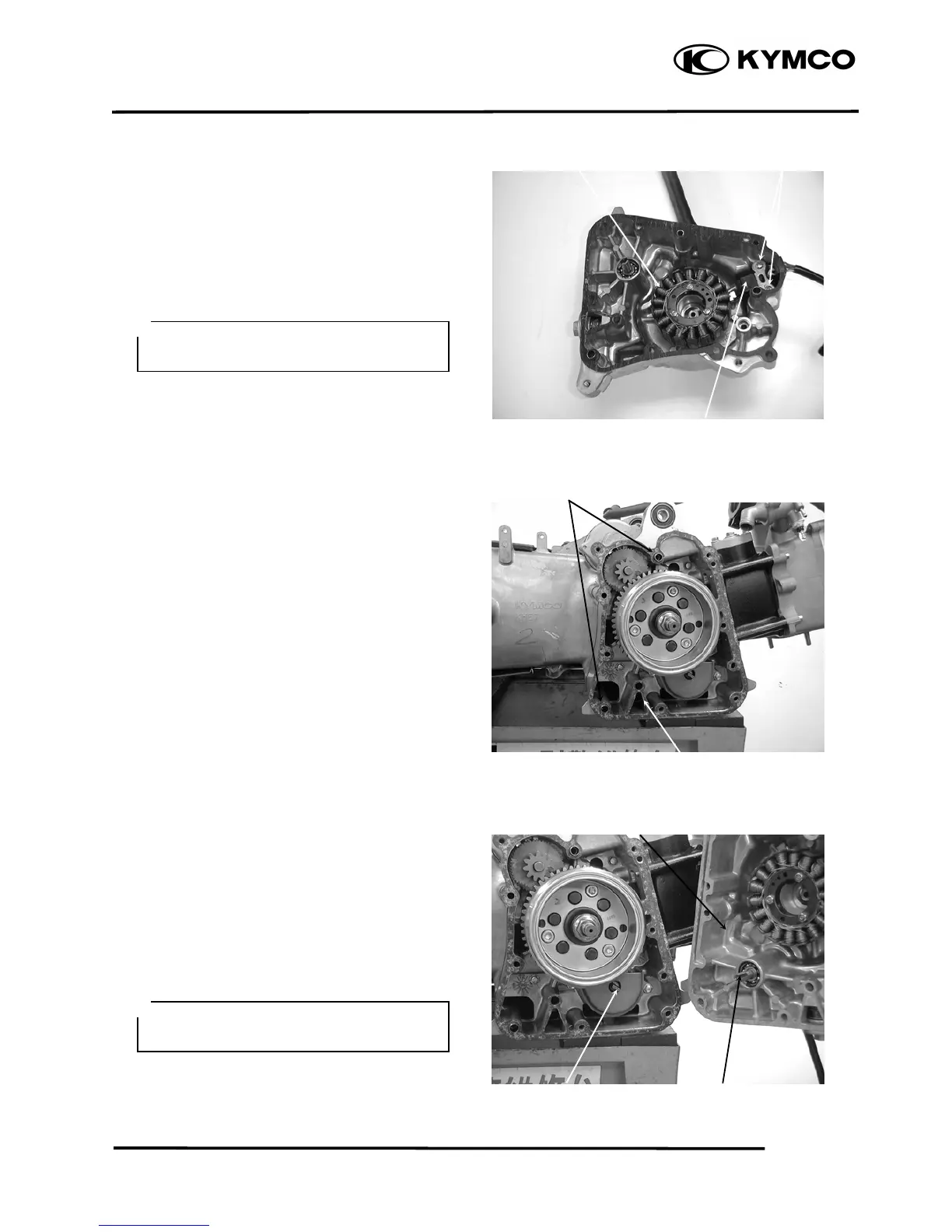

STATOR INSTALLATION
Install the A.C. generator stator on the right
crankcase cover and secure it with the three
bolts.
Install the pulser coil on the right crankcase
cover and secure it with the two screws.
Install the wire grommet in the groove in the
right crankcase cover securely.
RIGHT CRANKCASE COVER
INSTALLATION
Install the two dowel pins and a new gasket.
Install the right crankcase cover over the
crankcase, aligning the water pump shaft
groove with the oil pump shaft.
Tighten the nine right crankcase cover bolts.
Connect the water hoses to the right
crankcase cover.
Add the recommended engine oil. (
Ö
4-3)
Fill the cooling system with the specified
coolant. (
Ö
3-9)
A.C. Generator Stato
r
Screws
Right Crankcase Cove
r
Oil Pump Shaf
t
Dowel Pins
Be sure to route the stator wire under the
pulser coil.

Pulser Coil
Gaske
t
• Be sure to bleed air from the water
jacket after filling the coolant.

Water Pum
p
Shaf
t

KYMCO GRAND DINK 250 Specifications

General

Displacement	249.1 cc
Cooling System	Liquid-cooled
Fuel System	Electronic Fuel Injection
Transmission	CVT
Front Suspension	Telescopic fork
Rear Suspension	Dual shock absorbers
Front Brake	Disc
Rear Brake	Disc
Front Tire	120/70-12
Rear Tire	130/70-12
Seat Height	780 mm
Engine Type	4-stroke, Single-cylinder
