13. FUEL SYSTEM/CARBURETOR/

FUEL PUMP/ FUEL TANK

13-14

GRAND DINK 250

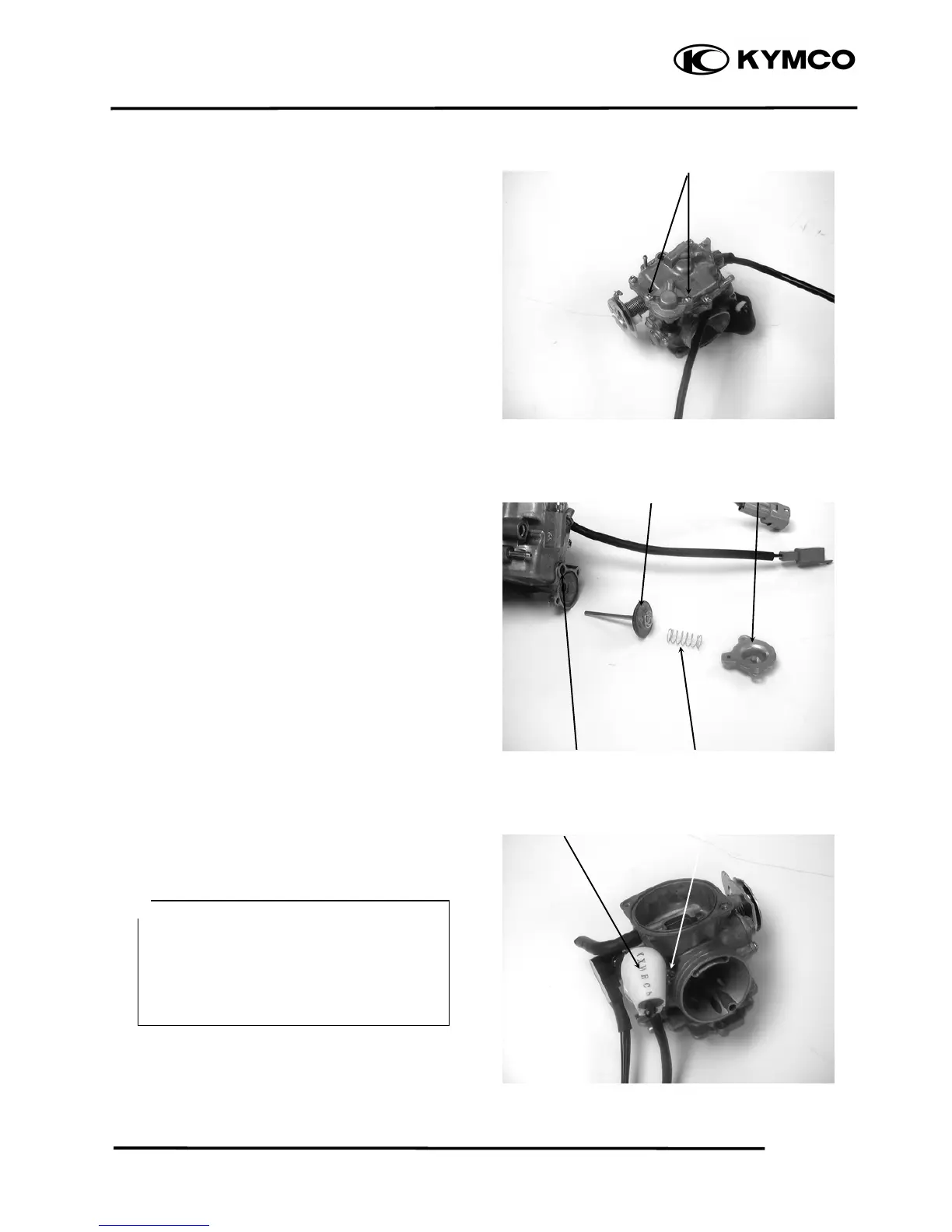

ACCELERATING PUMP

DISASSEMBLY

Remove the two accelerating pump cover

screws and accelerating pump cover.

Remove the spring and accelerating pump

diaphragm.

INSPECTION

Inspect the accelerating pump diaphragm for

cracks, damage or deterioration. Replace

if necessary.

Assemble the accelerating pump in the

reverse order of disassembly.

AUTO BYSTARTER INSTALLATION

Install the auto bystarter and set plate.

Install and tighten the two screws.

Screws

Diaphrag

Cove

rin

Screws

Auto B

starte

O-rin

• Insert the auto bystarter into the

carburetor body until it bottoms and

position the set plate into the upper

groove in the bystarter.

• Install the set plate with its round face

facing down.


