15. REAR BRAKE/REAR FORK/REAR
WHEEL/REAR SHOCK ABSORBER
15-7
GRAND DINK 250

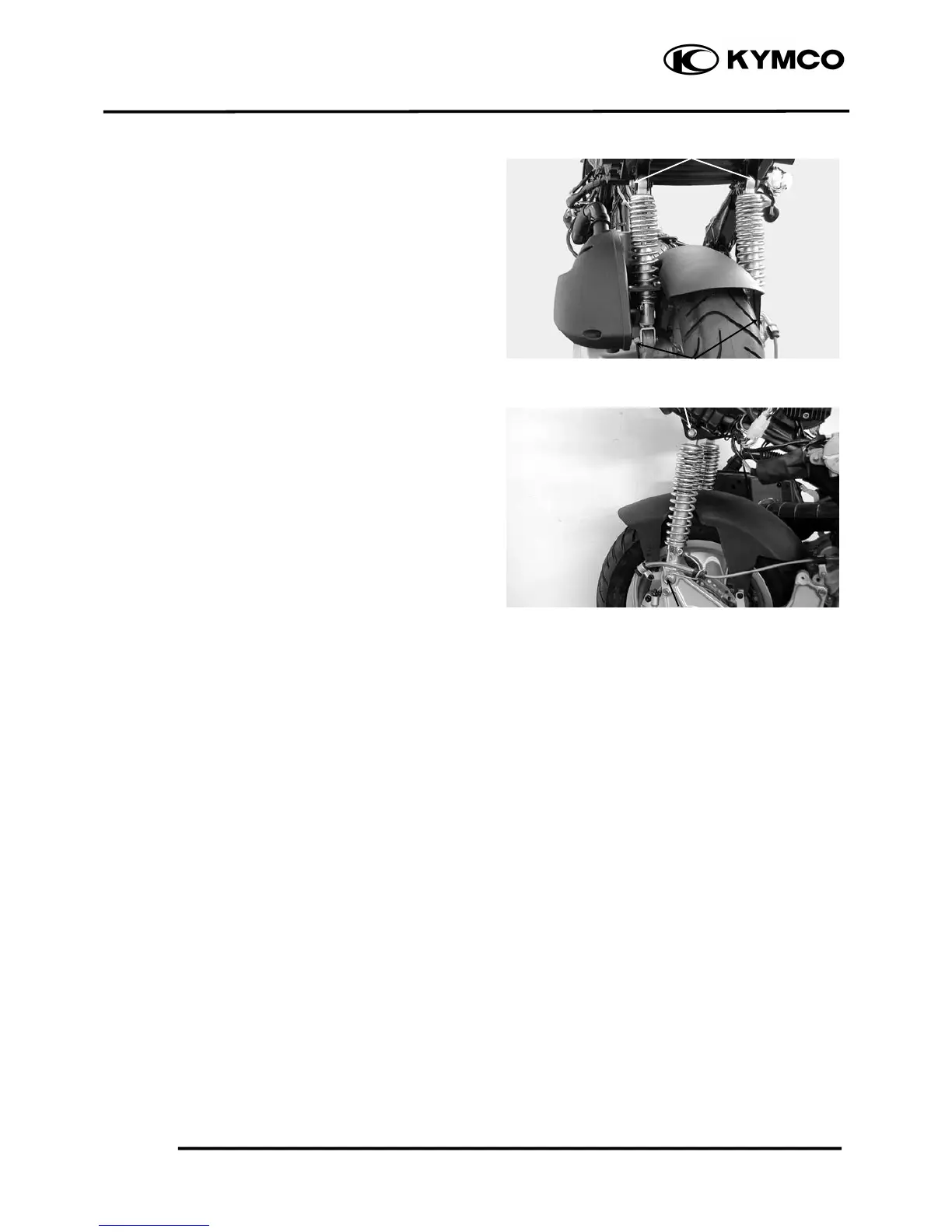

REAR SHOCK ABSORBER
REMOVAL
Remove the rear carrier and hand rail. (
Ö
2-3)
Remove the met-in box. (
Ö
2-3)
Remove the two air cleaner bolts.
Remove the rear shock absorber upper mount
bolt.
Remove the right/left rear shock absorber
upper and lower mount bolts.
Remove the right and left rear shock
absorbers.
INSTALLATION
Install the rear shock absorbers in the reverse
order of removal.
Torque:
Upper Mount Bolt: 39.2N-m
Lower Mount Bolt: 19.629.4N-m
Upper Mount Bolts
Lower Mount Bolts
Upper Mount Bolts
Lower Mount Bolts

KYMCO GRAND DINK 250 Specifications

General

Displacement	249.1 cc
Cooling System	Liquid-cooled
Fuel System	Electronic Fuel Injection
Transmission	CVT
Front Suspension	Telescopic fork
Rear Suspension	Dual shock absorbers
Front Brake	Disc
Rear Brake	Disc
Front Tire	120/70-12
Rear Tire	130/70-12
Seat Height	780 mm
Engine Type	4-stroke, Single-cylinder
