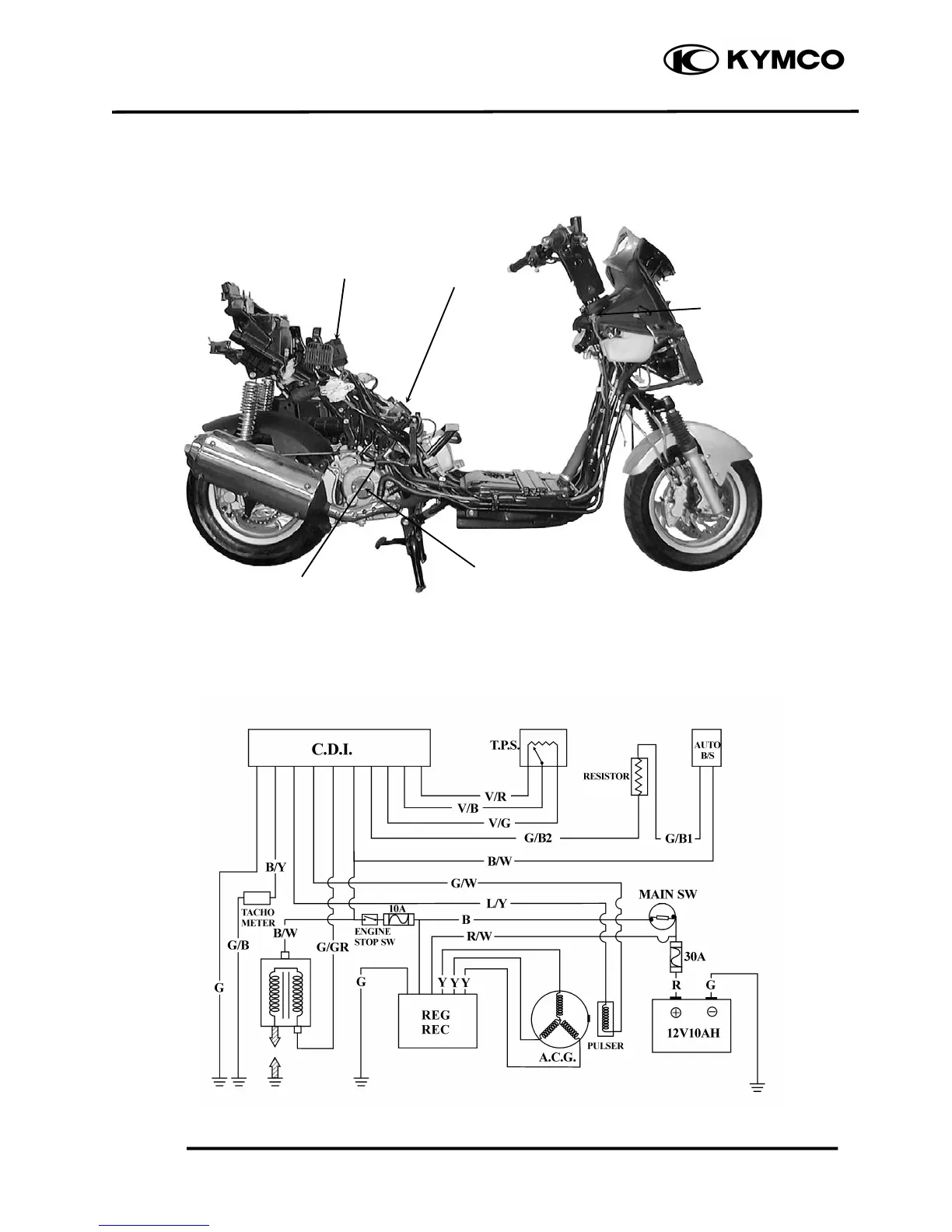

17. IGNITION SYSTEM
17-1
GRAND DINK 250
IGNITION SYSTEM LAYOUT
Pulser Coil
Ignition Coil
CDI Uni
t
A.C. Generato
r
Ignition Switch
IGNITION CIRCUIT
5W
