2PK/2PL/2PM/2PN-5
1-3-21

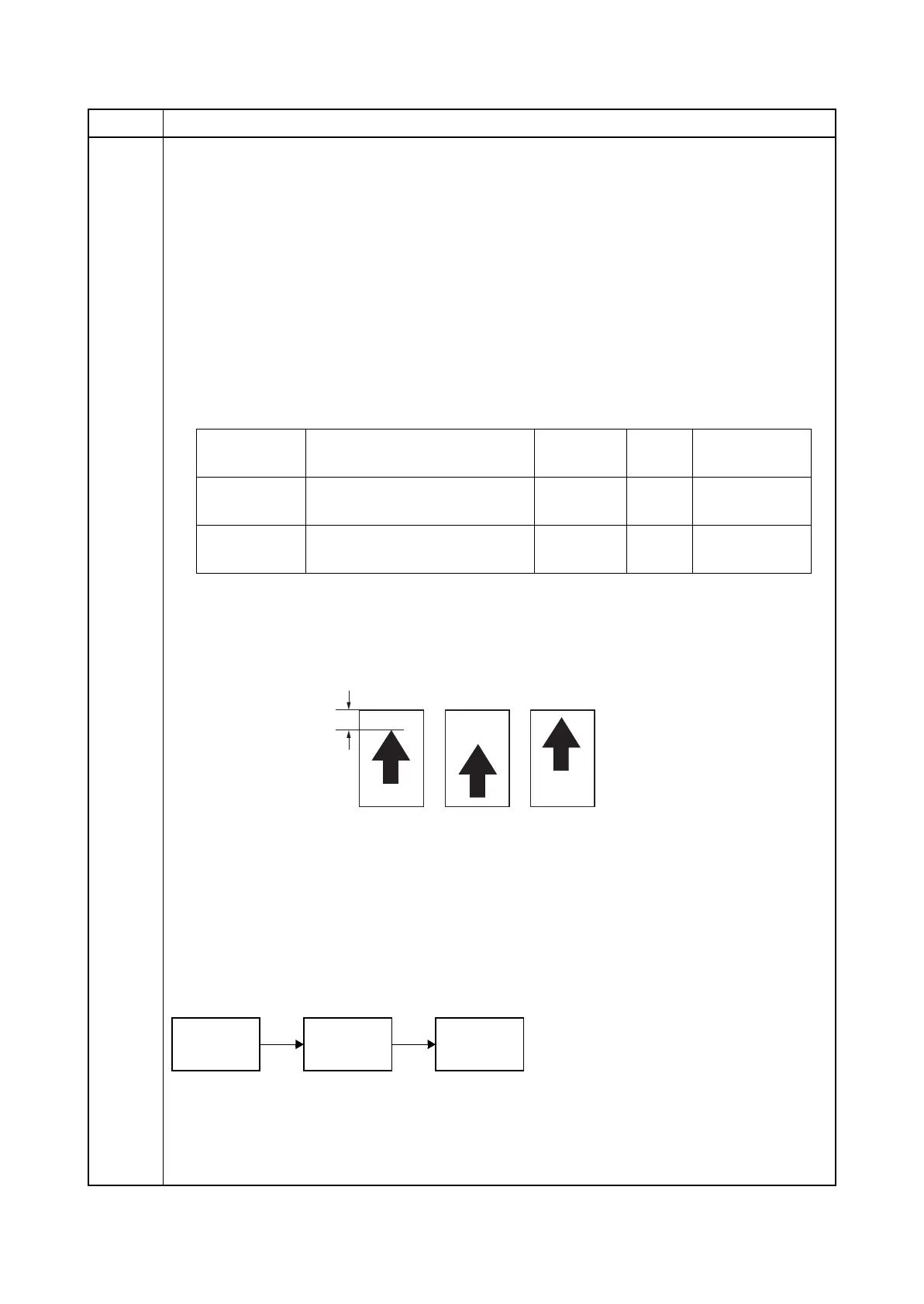

U066 Adjust Table Leading Edge Timing
Description
Adjusts the scanner leading edge registration of the original scanning.
Purpose
Make the adjustment if there is a regular error between the leading edges of the copy image and
original.
Adjustment
1. Press the start key.
2. Press the system menu key.
3. Place an original and press the start key to make a test copy.
4. Press the system menu key.
5. Select the item to be adjusted.
6. Change the setting value using the cursor left/right keys or numeric keys.
For copy example 1, increase the value. For copy example 2, decrease the value.
Increasing the value moves the image forward and decreasing the value moves the image
backward.
Figure 1-3-6
7. Press the start key. The value is set.
Caution
If the above adjustment does not optimize the leading edge registration, proceed with the follow-
ing maintenance modes.
Completion
Press the stop key. The screen for selecting a maintenance item No. is displayed.
Item No. Description
Display Description
Setting
range
Initial
setting
Change in
value per step
Front Scanner leading edge registra-
tion
-45 to 45 0 0.086 mm
Rotate Scanner leading edge registra-
tion (rotate copying)
-45 to 45 0 0.086 mm
Original
Leading edge registration of the copy image (+1.0/-1.5 mm or less)
Copy
example 1
Copy
example 2
U034
(P.1-3-17)
U065
(P.1-3-19)
U066
To Next Page
