2PK/2PL/2PM/2PN-5
1-3-24
U070 Adjust DP Motor Speed
Description
Adjusts the DP original scanning speed.
Purpose
Make the adjustment if the magnification is incorrect in the auxiliary scanning direction when the
DP is used.
Adjustment
1. Press the start key.
2. Press the system menu key.
3. Place an original on the DP and press the start key to make a test copy.
4. Press the system menu key.
5. Select [Convey Speed].
6. Change the setting value using the cursor left/right keys or numeric keys.
For copy example 1, increase the value. For copy example 2, decrease the value.
Increasing the value makes the image longer, while decreasing the value makes the image
shorter.

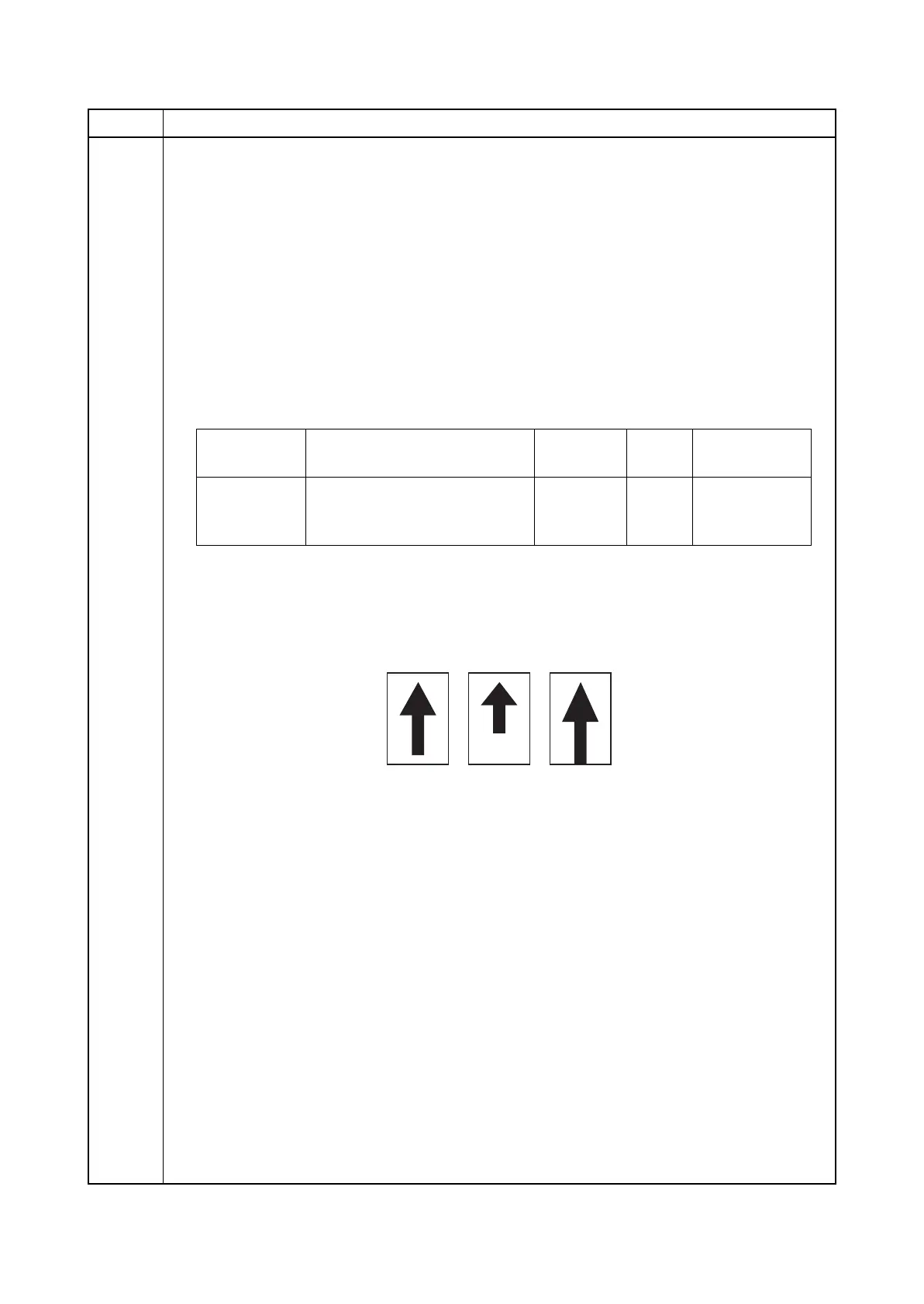

Figure 1-3-8
7. Press the start key. The value is set.
Completion
Press the stop key. The screen for selecting a maintenance item No. is displayed.
Item No. Description
Display Description
Setting
range
Initial
setting
Change in
value per step
Convey
Speed
Magnification in the auxiliary
scanning direction of CCD
(first side)
-25 to 25 0 0.1 %
Original Copy
example 1
Copy
example 2
To Next Page
