Kyocera FS-1350DN Service Manual

2H4
2-1-13
2-1-8 Paper exit section
The paper exit section transports the paper which passed the fuser unit towards the top tray. The paper which passed
through the fuser unit turns on the actuator (exit sensor) in the fuser unit, and is led by the guide comprised of the rear
cover, frame and the FD cover guide, finally reaching the FD roller. The paper is delivered to the top tray by the rotation of
the FD roller.

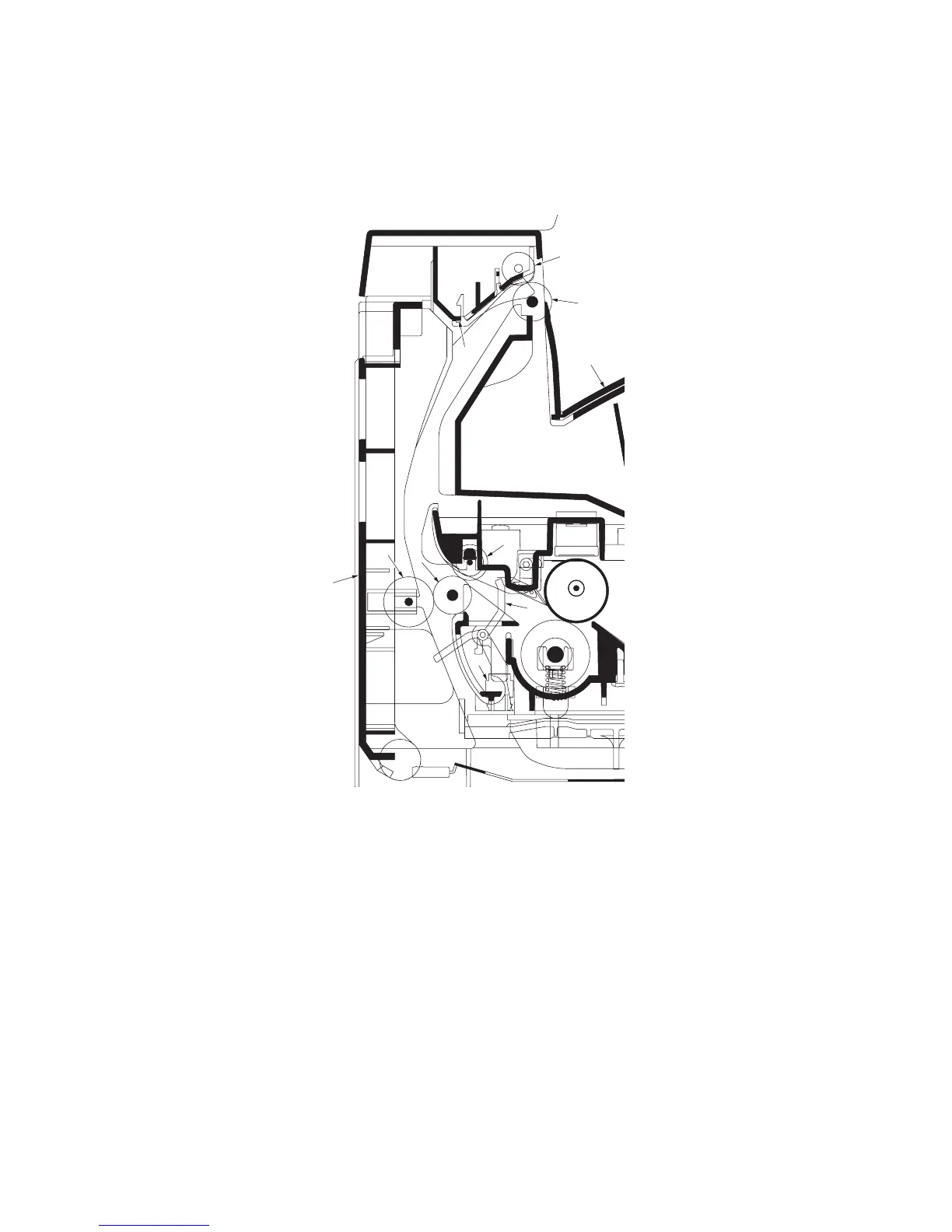

Figure 2-1-20 Paper exit section
3
4
10
5
8
7
6
1
9
2
(1) Exit roller
(2) Fuser exit pulley
(3) Middle pulley
(4) Rear cover
(5) FD roller
(6) Exit pulley
(7) FD cover
(8) Top tray
(9) Exit sensor
(10) Actuator (exit sensor)

Kyocera FS-1350DN Specifications

General

Color	No
Duplex printing	Yes
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	6 s
Print speed (black, normal quality, A4/US Letter)	30 ppm
Processor model	PowerPC–440F5
Maximum internal memory	1152 MB
Sound power level (standby)	30 dB
Sound pressure level (printing)	54 dB
Power supply type	AC 220 - 240 V, 50/60 Hz
Capacity cartridge	7200 sheets
Standard media sizes	(105 x 148 - 216 x 297 mm)
Power consumption (active)	484 W
Compliance industry standards	TUV/GS, CE
Number of print cartridges	1
Total input capacity	250 sheets
Maximum input capacity	800 sheets
Maximum print size	216 x 356 mm
Non-ISO print media sizes	Folio (media size), Letter (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Power consumption (standby)	12 W
Power consumption (PowerSave)	7.1 W
Display	LCD

Weight and Dimensions

Dimensions (WxDxH)	375 x 393 x 267 mm
